| Model: |

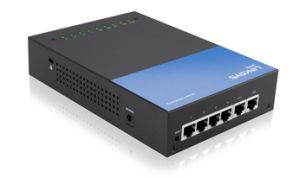

LRT214 |
| Firewall: |
SPI (Stateful Packet Inspection), DoS (Denial of Service) prevention, Schedule-based access rules (50), Web filtering (URL and keyword blocking), Block Java, cookies, ActiveX, http proxy servers, IGMP proxy, UPnP |
| Site-to-site VPN: |
50 IPsec site-to-site tunnels, Split DNS over site-to-site tunnel, VPN backup for site-to-site tunnel, DPD (Dead Peer Detection), Keep alive, NAT-traversal |
| Remote Access VPN: |
OpenVPN, PPTP, client-to-site IPsec, OpenVPN Mobile Client Support (iOS, Android) |
| NAT: |
Gateway mode, router mode |
| NAPT: |
1-to-1 NAT (10), Port forwarding (30), Port triggering (30), Port address translation (30), DMZ host |
| DMZ Port: |
DMZ range, DMZ subnet |
| 802.1q VLAN |
5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules), VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches. |
| DHCP Server: |
Multiple address pools (one per VLAN subnet), MAC&IP binding, MAC filtering, DHCP relay |
| DNS: |
DNS proxy, DNS local database |
| Bandwidth Management: |
Rate Control allowing limiting upstream & downstream bandwidth per Service & IP, Priority scheme allowing services mapped to 3 levels of priority |
| Monitoring/Alerting: |
SNMP, Syslog, E-mail |
| WAN Connection: |
Dynamic IP, PPPoE, PPTP, Static IP, Transparent Bridge, MAC Address Clone |
| DDNS: |
DynDNS, 3322 |
| Routing: |
Static and dynamic routing (RIP & RIPng) |
| IPv6: |
DHCPv6-PD, 6to4, router advertisement |
| Maintenance: |
Configuration, backup, and restore, Dual configurations (startup and mirror), Firmware upgrade, Diagnostics (ping and DNS name lookup), Reboot, Factory defaults |
| Status & Statistics: |
WAN connection status, VPN tunnel/user status, Port status and statistics, LEDs (System, DIAG, WAN, DMZ. VPN, LAN 1-4) |
| Port Management: |
10/100/1000 Mbps, Auto Negotiation, Half/Full Duplex |
Intuitive Web-based
Administration Interface: |
Intenet Explorer, Firefox, Safari, Setup wizard, Remote management over HTTPS |
| Performance: |
IPsec VPN throughput (110 Mbps), Maximum NAT throughput (900 Mbps), Maximum concurrent connections (30,000) |
| Dimensions (WxHxD): |
191 x 130 x 40 mm |
| Weight: |
722.2 grams (28.43 oz) |
| Ports: |
One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 DMZ Port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android), Reset button, Kensington Lock |
| Power: |
12V 1A |
| Operating Temperature: |
0C to 40C (32F to 104F) |
| Non-operating Temp: |
0C to 70C (32F to 158F) |
| Operating Humidity: |
10% to 85% non-condensing |
| Non-operating Humidity: |
5% to 90% non-condensing |
| Regulatory Certification: |
FCC Class B, CE Class B |
| Warranty: |
Limited lifetime warranty |
