All stock codes associated to this product
DSL2544N, DSL-2544N, DLKDSL2544N, 790069395871

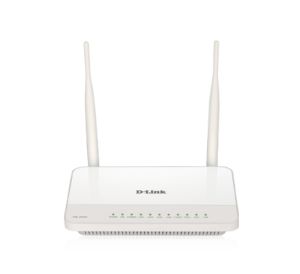

DSL-2544N Dual Band Wireless N600 Gigabit ADSL2+ Modem Router
High-Speed Wireless Connection & Coverage for Large Homes, Small Offices, Gaming and Multimedia Applications.
Description
Ultimate Internet Connection
The DSL-2544N Dual Band Wireless N600 Gigabit ADSL2+ Modem Router is a versatile, high-performance router for home and the small office. With integrated ADSL2/2+ supporting up to 24Mbps2 download speed, firewall protection, Quality of Service (QoS), 802.11n Dual Band Wireless LAN and 4 Gigabit switch ports, this router provides all the functions that a home or small office needs to establish a secure and high-speed link to the outside world. You can even connect a USB printer or storage drive and share it.
Extreme Performance with Wireless N600 and Gigabit
High intensity games and HD videos need a high intensity router to keep up with all that streaming. At the same time you want to work, surf, and email just like always. The Dual Band Wireless N600 Gigabit ADSL2+ Modem Router features simultaneous dual band 2.4GHz and 5GHz, so you can stream HD videos and play games while chatting and surfing the web with less skipping and interference. Fast multimedia streaming on the low interference 5GHz band means no waiting for videos to load before you can watch them. If you prefer a wired connection, 4 Gigabit ports provide you with top speed for all your gaming and video needs.
Think Green
While this may look like your average product, it's not. This is a D-Link Green product, which is as good for your wallet as it is for the environment. The DSL-2544N is designed to conserve energy, protect our environment from harmful substances and reduce waste by using recyclable packaging. To learn more, visit www.dlinkgreen.com.
Firewall Protection and QoS
The security features that have been integrated into this device prevent unauthorized access to the home and office network, be it from the wireless devices or from the Internet. The router provides firewall security using Stateful Packet Inspection (SPI) and hacker attack logging for Denial of Service (DoS) attack protection. SPI inspects the contents of all incoming packet headers before deciding what packets are allowed to pass through. Router access control is provided with packet filtering based on port and source/ destination MAC/IP addresses. For Quality of Service (QoS), the router supports multiple priority queues to enable a group of home or office users to experience the benefit of smooth network connection of inbound and outbound data without concern of traffic congestion. This QoS support allows users to enjoy high ADSL transmission speeds for applications such as VoIP and streaming multimedia over the Internet.
1. Computer must adhere to Microsoft's recommended System Requirements. The software included with this product is not Mac or Linux compatible.
2. This unit complies with ADSL standards worldwide. It supports a basic downstream rate of 8Mbps with ADSL and is capable of up to 12/24Mbps with ADSL2/2+ with an upstream of 1Mbps. ADSL speeds may vary depending on the individual contract with an Internet Service Provider and the distance of the unit from the ISP's DSLAM.
3. Maximum wireless signal rate derived from IEEE Standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
Features
- IEEE 802.11a, 802.11g and 802.11n Compliant
- Concurrent Dual Band (2.4GHz and 5GHz), speed up to 600Mbps
- Wi-Fi Protected Setup (WPS)
- 4 Port Gigabit Switch
- Advanced Parental Controls for Domain Blocking and Keyword Filtering
- USB 2.0 for printer and file sharing
- Universal Plug and Play (UPnP)
- 3 Year Warranty
Technical Specifications
General
Device Interfaces
- 802.11b/g/n Wireless LAN
- Four 10/100/1000BASE-T Gigabit LAN ports
- DSL port
- USB 2.0 port
Standards
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u
LEDs
- Power
- USB
- WLAN
- DSL
- Internet
- WPS
- LAN (x4)
Minimum System Requirements
- Windows 8/7/Vista/XP SP3 or Mac OS X 10.4 or higher
- Microsoft Internet Explorer 7, Firefox 12.0, Chome 20.0, or Safari 4.0
- Subscription with an Internet Service Provider
- Functionality
Security
- WPA & WPA2 (Wi-Fi Protected Access)
- Wi-Fi Protected Setup (WPS) - PIN/PBC
Advanced Features
- Green Ethernet
- UPnP support
- SAMBA file sharing support
- Network Address Translation (NAT)
- VPN passthrough/multi-session PPTP/L2TP/IPSec
USB Sharing Support
- Printer
- USB storage device
- 3G modem
- Physical
Dimensions
- 190 x 128 x 35 mm (7.48 x 5.04 x 1.38 inches)
Weight
Temperature
- Operating: 0 to 40 C (32 to 104 F)
- Storage: -20 to 70 C (-4 to 149 F)
Humidity
- 5 % to 95 % non-condensing
Certifications
- CE
- C-Tick
- A-Tick
- IPv6 Ready
- Compatible with Windows 8
Order Information
- Part Number
- Description
- DSL-2544N
- ADSL2+ N600 Dual Band Wireless Router
