All stock codes associated to this product
WC760010000S, WC7600-10000S, 606449102048
WC7600

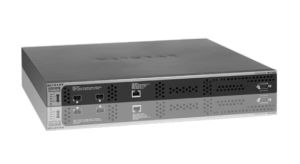

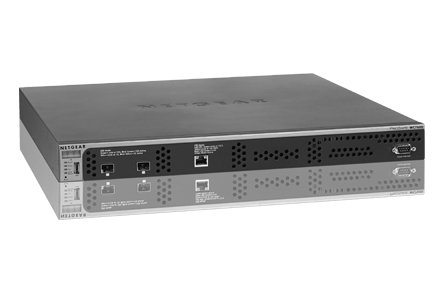

ProSAFE Premium Wireless Controller
High Performance Enterprise-Class Wireless Controller
The WC7600 Premium Wireless Controller is ideal for K-12 education, hospitality, and healthcare deployments. Designed with simplicity in management and ease of use, it offers enterprise grade functionality and capability for small to midsized organizations, without the cost and complexity of big IT.
Model: WC7600
Features
Performance
- UFast algorithm provides fast and easy Access Point discovery and firmware management
- Fully distributed L2 and L3 roaming enable optimal performance and maximum throughput for seamless mobility
- Automatic controls of AP transmit power and channel allocations ensure best coverage by minimizing interferences
- Load balancing and rate limiting provide fair bandwidth allocation among all clients for robust wireless connectivity
Scalability
- Support up to 50 Access Points with a single WC7600 and up to 150 Access Points with a stacks of three WC7600.
- Support full line of ProSAFE Access Points with simplified management and comprehensive monitoring
- Support of (N+1) controller redundancy to maximize reliability and minimizes service disruptions
- Complete hardware resilience with dual fan tray and hot-swappable power supplies
Business Value
- Maximizes investment flexibility with pay as you go licenses. Each WC7600 comes with two evaluation AP licenses. Additional management of AP’s can be enabled with 10 AP licenses.
- Self-healing algorithm adapts power and channel of neighboring APs for improved user experience during interference impacted events
- Investment protection with support of entry level ProSAFE® Access Points and future proof with 802.11ac Access Points
- Provides complete view of customer deployment environment with heat map, wireless channel, and signal strength for real-time reporting of network status
Ease of Use
- Complete search and sort functions for identification of key wireless statistics and environmental conditions
- Simple to use Wizard for easy Access Points discovery and configuration managements
- WC7660SKT wireless bundles for ease of ordering and simplified deployments with premium 3x3 802.11n Access Points
- Intuitive management interfaces allow set up of complete wireless networks in minutes
NETGEAR Warranty
- This product is backed by a NETGEAR ProSAFE Lifetime Hardware Warranty.
- Lifetime 24x7 Advanced Technical Support via chat
- 90 Days technical support
- Lifetime NBD replacement
Specifications:
Product Number
WC7600
Product Thumbnail
Physical Characteristics
Power
- 165 watts with internal dual power supply
- 100-240V AC Universal
- IEC 320 connector
Physical Dimensions (1 RU)
- Dimensions (L x W x H): 440 x 430 x 43 mm (17.34 x 16.92 x1.7 in)
Weight
- 1 PSU: 6.32 kg (13.94 lb)
- 2 PSU: 7.57 kg (16.68 lb)
Environmental Conditions
Operating Temperature
- -4 to 150 F (-20 to 70 C)
Operating Relative Humidity
- WC7600 (@25C): 664,072 hours
- Fan Tray (@25C): 676,058 hours
- Power Supply (@25C): 938,490 hours
Power Consumption
- Maximum: 82.3W or 281 BTU/hr
Compliance
- ENGR 10049 EST Environmental Stress Test Guideline
- ENGR 10045 EVT Engineering Validation Test Guideline
- ENGR 10048 CVT Compliance Validation Test Guideline
- ENGR 10046 SVT System Validation Test Guideline
- ENGR 10023 HALT Highly Accelerated Life Test Guideline
- ENGR 10036 CDG Component Derating Guideline
Capacity
Managed APs
Controllers per Cluster
- 6,000 per cluster
- 2,000 per controller
Guest Portal
Profile Groups per Controller
Security Profile Groups per Profile Group
- Layer 2 Discovery
- Layer 3 Discovery
- L2 Roaming
- L3 Roaming
- Layer 2 isolation
- Access List
- Auto Channel Allocation
- Radius, AD, and LDAP proxy
- Remote AP
- Client load balancing
- Auto Power Control
- Coverage Hole Detection
- Rate Limiting on per SSID
- Rate Limiting on per client
- 802.11e WMM
- Schedule AP on/of
- Captive Portal
- Stacking Redundancy (N+1)
- Heatmap
Interfaces and Indicators
10G SFP+ Ports for Data and Control
- Two 1/10Gbps auto-sensing and auto-negotiation
1G Copper RJ-45 Ports for Management
- One 10/100/1000 Mbps auto-sensing and auto-negotiation
USB Ports
- One USB 2.0 Type A connector
Console
- One 1 D-Sub-9 MALE connector
LED
- Power, status, fan, stacking master
Default Reset
Networking
IP
- Three controllers per stack
DHCP Server
Management
Configuration
- Web user interface
- SNMPv1
- SNMPv2
AAA
- Radius (primary and backup)
AP Provisioning
Wireless Security Standards
- WNDAP660
- WNDAP620
- WNDAP360
- WNDAP350
- WN370
- WNAP320
- WNAP210v2
- WNDAP380Rv2 (China only)
Product Ordering Information
- WC7600-100PRS
- WC7600-10000S
