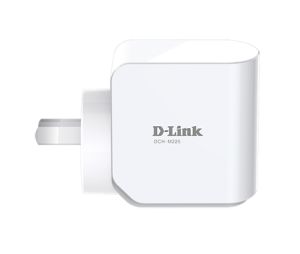

Wi-Fi Audio Extender
DCH-M225
The DCH-M225 Wi-Fi Audio Extender is a portable plug-in repeater that lets you extend an existing wireless network. It also has the ability to stream your music library to anywhere within your extended wireless network. Tiny yet powerful, it supports Wireless N speeds of up to 300 Mbps in a device that fits in the palm of your hand.
Compact, Convenient Design
The DCH-M225s compact design is ideal for use at home or a small office, as it does not take up much space and is ready to use by simply plugging it in. The repeaters small form means it can easily be plugged into a power outlet without blocking other outlets while its wall wart design saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance means it blends easily into the background.
Conveniently Stream Audio
Expanding your audio capabilities has never been easier with the help of the DCH-M225. With support for both DLNA and AirPlay, simply plug in your speakers and youll be able to stream audio to anywhere within your wireless network. The Wi-Fi WMM quality of service protocol ensures that youll have no issues with bandwidth when streaming audio and performing other task such as surfing the Internet, checking email, or online gaming.
Easy to Set Up, Easy to Use
Setting up the Wi-Fi Audio Extender is simple to do with several convenient ways. You can use the supported QRS Mobile app on your iOS or Android mobile device to set up the DCH-M225 easily without needing to be at a computer. Alternatively, you can use One-touch configuration by pushing the WPS push-button on the DCH-M225 and on the router or AP you want to extend. You can also simply plug the DCH-M225 in, connect to it wirelessly with a PC or mobile device, and follow the steps in the built-in Setup Wizard to configure the DCH-M225.
1 Maximum wireless signal rate derived from IEEE standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
Features
CD-less Install
Guest Network
Specifications
General
Device Interfaces
IEEE 802.11n1
LED
Power/Status
Standards
IEEE 802.11n/g/b
Wireless Frequency Range
2.4 GHz to 2.4835 GHz
Antennas
Two internal antennas
Functionality
Security
Wi-Fi Protected Access (WPA/WPA2)
WEP 64/128-bit encryption
WPS
Advanced Features
QRS app support (iOS, Android)
Device Management
Web UI
Physical
Dimensions
2.13 x 1.65 x 2.15 inches
Weight
0.18 lbs
Power
Input: 110 to 125 V AC, 50/60 Hz
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 65 °C (-4 to 149 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications
FCC
IC
Wi-Fi Certifi ed
CE
Order Information
Part Number Description
DCH-M225
Wi-Fi Audio Extender
1Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n speci cations. Actual data throughput will vary. Network conditions and environmental factors, including volume of network tra c, building
materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely a ect wireless signal range.
