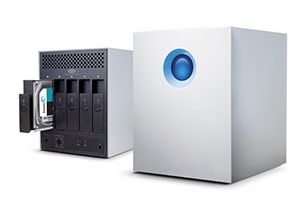

LaCie 5big Thunderbolt 2
Professional 5-Disk Hardware RAID
Dual Thunderbolt 2
Thunderbolt 2 Power for Professional 4K Workflows.
- Up to 1050MB/s* speeds for 4K video editing
- Hardware RAID 5/6 with hot swap
- Dual Thunderbolt 2 ports for daisy chaining
- Aluminum enclosure and whisper-quiet fan
Design by Neil Poulton
Overview
For 4K and other bandwidth-hungry workflows, external storage needs to be fast, secure, reliable, and quiet. The new LaCie 5big fits the bill, delivering Thunderbolt 2 speeds for 4K video editing, up to 30TB capacity, and hardware RAID 5/6 for no-compromise data security.
Thunderbolt 2 Speeds for the 4K Era
Game-changing storage performance that accelerates workflows.
RAID for Speed with Security
Hardware RAID for optimal performance with data security.
The Most Powerful I/O, Reinvented
Doubles the speed and supports 4K workflows.
Advanced Cooling for Long-Term Reliability
Efficient and near-silent cooling for a long-lasting product.
Usability & Reliability for Professionals
Hardware and software solutions for professional environments.
- 4K ProRes 444
- 2K Uncompressed
RGB 10bit
- 4K Uncompressed
RGB 10bit
With this kind of speed, videographers can work directly from RAW files in Apple Final Cut Pro or Adobe Premiere, get maximum quality from footage, and see edits in real time. No need to first convert footage into a lower resolution. Avid Pro Tools users will notice incredibly smooth audio mixing, even when working with hundreds of tracks simultaneously. Professional photographers using Adobe Lightroom or Apple Aperture can browse through archived libraries of thousands of RAW and edited images with zero lag.
Thunderbolt 2 Speeds for the 4K Era
With Thunderbolt 2 technology, the interface is no longer the performance bottleneck. For the 5big, LaCie harnessed the breakthrough performance potential of the Thunderbolt 2 I/O, squeezing the absolute best speeds out of the hard disks. Add a hardware RAID controller and 7200RPM disks and the result is incredible, sustained speeds of up to 1050MB/s that turbocharge 4K workflows, file transfers, and backups.
RAID for Speed with Security
The LaCie 5big offers RAID modes 0, 1, 5, 6, 10, and JBOD. Its hardware RAID controller delivers sustained performance, better flexibility, and the ability to connect the product to another computer while keeping the RAID configuration. Preconfigured in HFS+ and RAID 5, it is truly plug and play for Mac® users. And easily customize the RAID mode to suit your needs using the LaCie RAID Manager utility.
RAID modes 5 and 6 provide complete data protection against disk failure, while providing excellent speed and capacity. This is perfect for when you want to use a single storage product for both editing and backup. Even in the case of disk failure, the LaCie 5big’s hot-swappable disks mean zero data loss or downtime.
You could instead choose RAID 0** to maximize speed and capacity for current projects, and then move completed projects to archival storage incredibly quickly. Or, choose JBOD, which allows you to see and use each disk independently. With five working days a week, you can assign each disk to a daily backup. It’s even possible to set up multiple RAID volumes. For example, create both a 3-disk RAID 5 array for current projects, and a 2-disk RAID 1 array for backing up source files and final footage.
Speed +
Security
Maximum
Speed
Hybrid
Daily
Backup
| Mode |
Min. Disks |
Capacity |
Protection |
Performance |
| Raid 5 (default) |
3 |
80% |
| Raid 6 |
4 |
60% |
| Raid 10 |
4 |
40% |
| Raid 1 |
2 (only) |
20% |
| Raid 0 |
2 |
100% |
The Most Powerful I/O, Reinvented
Thunderbolt technology redefined external storage with its speed and versatility for bandwidth-intensive applications. Thunderbolt 2 builds on those advances by doubling the speed potential to 20Gb/s and enabling simultaneous RAW 4K video editing and display. And thanks to support for DisplayPort 1.2, it’s now possible to daisy chain higher-resolution displays such as 4K monitors.
FireWire 800 800Mb/s
USB 3.0 5Gb/s
Thunderbolt 10Gb/s
Thunderbolt 2 20Gb/s
Thunderbolt 2 also continues to support daisy chaining up to six devices to a computer via a single cable (included in the box). For example, you could connect a total of 36 LaCie 5bigs via the six Thunderbolt 2 ports on a single Mac Pro®, enabling more than 1PB (1080TB) and more than 3000MB/s. Thunderbolt 2 even uses the same cables and connectors as first-generation Thunderbolt***.
Advanced Cooling for Long-Term Reliability
The LaCie 5big has a cutting-edge cooling system that ensures long-term reliability by preventing overheating. It consists of three key components: an innovative heat-dissipating aluminum casing, a Noctua® cooling fan, and jumbo heat exhausts. For the enclosure, a solid-aluminum heat-sink design diverts and dissipates heat more efficiently than plastic casings.
The ultra-quiet Noctua NF-P12 fan pulls heat away from the internal components while producing exceptionally little noise. It’s thermoregulated, so it also controls its speed according to ambient temperature. As a result, the fan works more efficiently while prolonging the product’s lifespan. And for whisper-quiet operation, the LaCie 5big’s heat exhausts direct noise away from the user. Altogether, this professional cooling system makes the LaCie 5big perfect for even the most noise-sensitive creative environments.
Usability & Reliability for Professionals
In designing the LaCie 5big enclosure, LaCie relentlessly focused on usability for professionals. The front button gives you a convenient way to turn off the product or put it into Power-Saving Mode. A short press spins down the disks, reducing power consumption, without interrupting a Thunderbolt daisy chain. A long press powers down the product completely.
LaCie also bundles the 5big with software solutions for system monitoring, backup, and unauthorized access prevention. Use the LaCie RAID Manager utility to set up email alerts and monitor storage before potential problems escalate. And for professional backup schemes, the LaCie 5big includes Intego® Backup Manager Pro and is compatible with Time Machine™.
The LaCie 5big features a cable lock to prevent accidental Thunderbolt cable or power supply disconnections. It also includes LaCie Private-Public software, which lets you prevent unauthorized access by password-protecting volumes with AES 256-bit encryption. Combined with Kensington® lock compatibility, the LaCie 5big fully protects your data against unauthorized access.
Specifications
| Item Number: |
9000510AS
9000503AS
9000504AS
|
| Capacity: |
10TB
20TB
30TB
|
| |
|
| Internal Storage Media: |
5 x hot-swappable* 7200RPM/64MB cache (or greater) hard disks |
| |
|
| Interface: |
2 x Thunderbolt 2 ports |
| |
|
| Interface Transfer Rate: |
20Gb/s |
| |
|
| Performance Benchmark: |
Reads | Writes (MB/s)**
10TB RAID 0: 660 | 650
10TB RAID 5: 520 | 530
20TB RAID 0: 920 | 880
20TB RAID 5: 700 | 720
30TB RAID 0: 1050 | 900
30TB RAID 5: 840 | 840 |
| |
|
| Interface Technology: |
Bidirectional 20Gb/s permits a high-resolution display and RAW 4K video editing |
| |
|
| Power-Saving Mode: |
Reduce power consumption by pressing the front button to spin down disks without disrupting daisy chain transfers (short press initiates power-saving mode; long press turns product off completely) |
| |
|
| RAID Modes: |
Preconfigured HFS+ RAID 5
Hardware RAID 0 / 1 / 5 / 6 / 10 / JBOD
Configure RAID using LaCie RAID Manager software |
| |
|
| Daisy Chain: |
Connect up to six Thunderbolt-compatible devices including Thunderbolt 2 and LaCie Thunderbolt Series products to a computer via a single Thunderbolt cable*** |
| |
|
| Security: |
AES 256-bit software encryption
Kensington lock compatible
Cable lock |
| |
|
| Cooling: |
Aluminum enclosure with improved internal heat dissipation Thermoregulated Noctua cooling fan: effective and whisper-quiet cooling |
| |
|
| Additional Features: |
System monitoring and email alerts for failure or warning events |
| |
|
| Acoustic: |
Standby: Negligible
Idle: 25-28dBA
Operating: 25-29dBA^ |
| |
|
| Power Supply: |
100-240V; 50/60Hz; 150W |
| |
|
| Dimensions (WxHxD): |
173 x 220 x 196 mm | 6.8 x 8.6 x 7.7 in. |
| |
|
| Weight: |
7.6 kg | 16.8 lbs |
| |
|
| System Requirements: |
Computer with a Thunderbolt 2 or Thunderbolt*** port
Mac OS X 10.9 and later
Minimum free disk space: 600MB recommended |
| |
|
| Software: |
Intego Backup Manager Pro
LaCie Private-Public (protect data with AES 256-bit encryption)
LaCie RAID Manager (administration console)
Download product software at www.lacie.com/software/5bigtb2 |
| |
|
| Box Content: |
LaCie 5big
External power supply
Thunderbolt cable
Drawer key
Cable lock clip
Quick Install Guide |
| |
|
| Comments: |
* Hot swapping will result in data loss in a RAID 0 array.
** These transfer rates were achieved using AJA System Test when connected to a 13" Macbook Pro with a 2.8GHz Intel Core i7 processor and 8GB RAM. Actual data rates may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, and disk capacity.
*** To achieve full interface bandwidth, connect the product to a Thunderbolt 2 port on a computer or device.
^ These measurements have been made under normal conditions, one meter/three feet from the front of the product. This value may vary with conditions and product configuration.
When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one thousand billion bytes. Your computers operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions and will not be available for data storage. |
