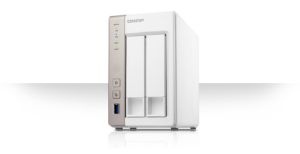

TS-251
High-performance NAS with one-the-fly & offline video transcoding for SOHO and home users
Features
The TS-251 provides a high performance & high capacity storage solution for SOHO and home users. Powered by the advanced QTS operating system, the TS-251 performs as an easy-to-use yet powerful NAS for data backup, file synchronization, remote access, home entertainment, and is ideal for users to build a personal cloud to access their data easily.
- Transcode Full HD videos on-the-fly or offline
- Play 1080p videos with 7.1 channel surround sound pass-through via HDMI output
- Create a personal cloud and stream your multimedia library via DLNA, AirPlay, and Plex
- Centralize your file storage, sharing and backup
- Run a virtual machine and extend the functionality of the NAS with an integrated virtualization solution
- Expand the total raw storage capacity up to 50TB (with maximum 10 hard drives) with the economical QNAP expansion enclosure UX-800P

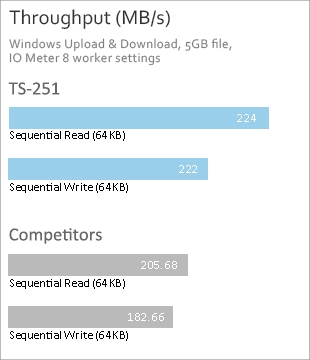

High performance
Powered by a new 22nm 64-bit dual-core Intel® Celeron® 2.41GHz processor with 1GB energy-efficient DDR3L RAM (upgradable up to 8GB), coupled with the support of dual LAN ports and HDMI connectivity, the TS-251 is a powerful home NAS with supreme value and great performance to deliver up to 220MB/s read & write speeds. The TS-251 can also automatically increase the processor's clock rate from 2.41GHz to 2.58GHz when needed for CPU-intensive tasks. The TS-251’s fast encryption and decryption performance provides transfer speeds of up to 68MB/s with AES-256 bit volume encryption, boosting system performance & security while ensuring the safety of sensitive personal data stored in the TS-251.

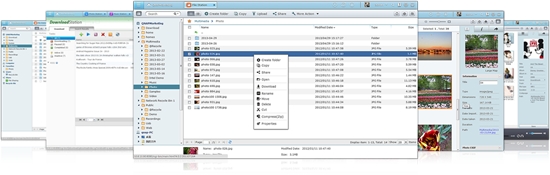

QTS - Simple and efficient
Thanks to the intuitive user interface of QTS, system operations of the TS-251 are smooth and handy. Its intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.
Easily build your personal cloud and access anywhere
QNAP’s myQNAPcloud provides an always-connected infrastructure for business and home users to build their private or personal cloud with ease. Through any web browser or the free mobile app the TS-251 becomes your personal cloud so you are always connected to your data. Take advantage of the myQNAPcloud service, which allows you to remotely access your TS-251 wherever you are. Instantly stream or share your multimedia contents and share them with your friends.
Real-time & offline HD video transcoding
The TS-251 delivers superior real-time Full HD video transcoding to convert your videos to formats that can be smoothly played on PCs, mobile devices and Smart TVs. It allows for up to 5 devices to simultaneously view different videos stored on the TS-251 with on-the-fly hardware accelerated transcoding. The TS-251 allows you to enjoy instant videos on multiple devices - even those that lack computing power or have limited file format support - without the need for complicated and time-consuming file conversion.
With the benefit of offline transcoding, if you can only connect to an Internet connection with limited/restricted bandwidth, you can still enjoy smooth videos by selecting a pre-rendered lower resolution to play the videos via File Station, Video Station, or the Qfile app for iOS & Android without affecting the TS-251’s performance running other applications. This also allows more people to play videos via streaming. The TS-251 also allows you to set a dedicated folder for automatic video transcoding.
Stream media via DLNA, AirPlay, and Plex
You can use DLNA-compatible devices such as HDTVs, Smart TVs, Sony® PS3, Microsoft® Xbox 360 and Hi-Fi systems to enjoy HD quality videos and high-resolution audio content such as DSD (Direct Stream Digital) audio format stored on the TS-251. You can also use the Qfile app on an iOS device to browse videos and photos stored on the TS-251 and play on the TV via Apple TV. By installing the QAirplay app, available on the QTS App Center, you can stream your media content directly on a TV via Apple TV. The media contents are streaming on Apple TV, bypassing your mobile device, thus saving the energy of your mobile device. The TS-251's support for Plex Media Server organizes all of your media with rich information and transforms the TS-251 into a powerful & easy to use streaming machine with DLNA, Roku, Amazon Fire TV, and Google TV support.
Enjoy Full HD videos with HD Station via HDMI
QNAP HD Station integrates the powerful XBMC v12 media player and web browser. With HDMI 1.4a connectivity, you can connect the TS-251 to a HDTV to enjoy your rich multimedia content on the big screen. The splendid user interface and support for 7.1 channel surround sound audio passthrough* bring smooth playback of Full HD videos providing a quality home theater experience**. You can also turn your mobile devices into remote controls by installing the Qremote app or use QNAP RM-IR002 remote control and MCE remote controls via the built-in IR receiver of the TS-251 for convenient & easy control of the HD Station. Moreover, the HD Station supports YouTube Pairing, allowing you to select a YouTube video on your smartphone, tablet or computer and play it on HDTV via the TS-251.
A receiver with HDMI support is required for decoding multi-channel surround sound.
The quality of video and music delivery can vary according to hardware and network environments.

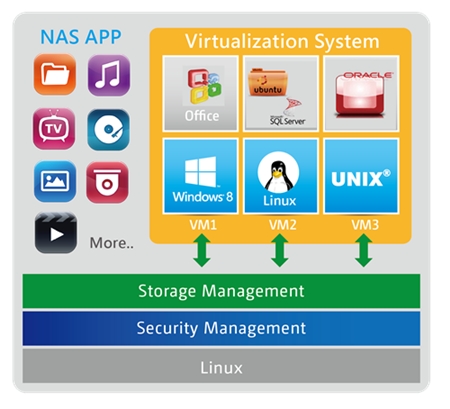

Extend the functionality of the TS-251 with Virtualization
Introducing the world’s first consumer-grade NAS with integrated virtualization technology. The Virtualization Station transforms the TS-251 into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine creation, virtual machine import/export, snapshot, and enables desktop operations on web browsers. With the easy-to-use interface, you can centrally manage all of the virtual machines created on the TS-251 with minimal effort. You can also download VMs on demand from online VM markets and import them to TS-251 without any complex procedure.
Note: The TS-251 comes pre-installed with 1GB RAM. In order to use the Virtualization Station on the TS-251, you must upgrade the RAM to at least 2GB. 4GB or more is recommended. Maximum 1 VM can be run at the same time.
Cross-platform file sharing, centralized data storage
The TS-251 supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac and Linux/UNIX. Data, logs and ISO image of CDs and DVDs can be centrally stored in the TS-251 and protected by an integrated antivirus solution.
Well-rounded backup solutions to secure data
QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TS-251. The USB 3.0 port on the front panel of the TS-251 features a one-touch-copy function for you to instantly back up data on external drives to the TS-251 with just one click, or alternatively to back up data from the TS-251 to external drives. A wide range of third-party backup software such as Acronis® True Image and Symantec® Backup Exec are also supported.
Disaster recovery solutions bring peace of mind
The TS-251 offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time and scheduled data backup to remote Turbo NAS or FTP servers and synchronizes files to remote folders from local folders with better backup efficiency and reduced backup time. The TS-251 also supports rsync protocol to back up data to remote servers on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon Glacier, Microsoft® Azure, ElephantDrive®, Symform®, Dropbox® and Google® Drive.

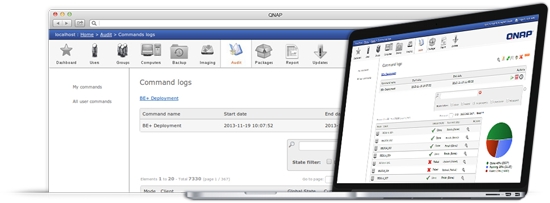

Optimize home computer management with the IT Management Station
The IT Management Station, powered by Mandriva® Pulse, provides a flexible service for managing your home computers. By installing the IT Management Station on the TS-251, you can easily manage multiple family computers with different operating systems, effortlessly handle backup & restore jobs to protect your precious data, and centrally install & update software on multiple computers with greater efficiency.
Archive your photo memories. Share your life.
The TS-251 acts as your photo vault for you to back up your favorite photos. The Photo Station makes photo sharing simple, and you can designate your own access right controls. Simply upload your photos to the TS-251 to create & organize your photo albums through a web browser, and share with your family and friends through social networking sites such as Facebook, Google+, Twitter and Pinterest. Your mobile devices are useful too, with the Qfile mobile app in your iOS® or Android™ devices you can instantly upload photos to the TS-251.
Build your home music library and enjoy music anywhere
The Music Station helps categorize your music collection, and displays album covers to easily organize your personal playlists. Through the music station web player, you can enjoy your music anytime, anywhere with a few clicks. Thousands of local and global online Internet radio programs are also built-into the Music Station for you to enjoy.
- Stream music and high-resolution audio (DSD) content to your DLNA Hi-Fi system and indulge in a high-quality sound experience.
- Stream music via AirPlay to compatible devices.
- Listen to your favorite songs streamed from iTunes Server, or play music via web browsers on your PC.
- Listen to your music on mobile devices through the Qmusic app.
24/7 download center
The TS-251 is a perfect download center for high speed BT, Magnet, PT (Private Trackers), eMule, FTP, and HTTP downloads. After the download tasks are set ready, you can turn off the computer, and the TS-251 will download as many HD videos as you want. With the QGet utility you can manage your download tasks on multiple Turbo NAS devices remotely on the local network or the Internet. You can also install HappyGet app to back up abundant online videos to your TS-251.
Dropbox-like file synchronization across computers and mobile devices
With Qsync, your TS-251 is turned into a safe data center for file synchronization. Any file uploaded to the TS-251 will be made available for all linked devices, such as computers, laptops and mobile devices. Qsync is especially useful for frequent travelers in managing files and ensuring that different devices have the most up-to-date files. Qsync provides multiple ways for file synchronization and group file sharing, greatly enhancing the flexibility of team projects and collaboration.
A private space for work & sharing

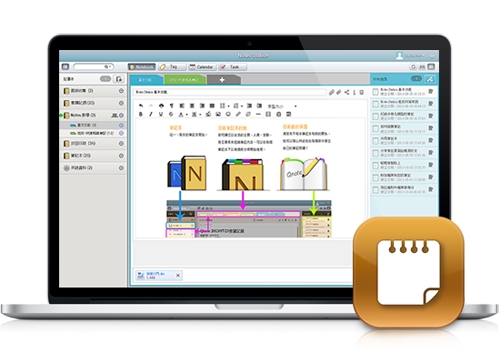

Notes Station
The Notes Station provides a private & secure way to share and collaborate on digital notes. With just a few steps it’s easy to create notes from web pages (or by importing from the TS-251), edit notes with the intuitive web-based editor, and even create to-do lists & calendar alerts.
Signage Station - Creatively present your animated content
With the Signage Station, it’s easy to create content for a wide range of materials such as personal animated resumes or life memory books. The Signage Station is a great tool to bring your resume to life with rich media content to creatively present your background and accomplishments. You can also create personal memory books to edit and record each life event. The iArtist Lite application, with intuitive editing tools, helps you to easily create these signs with drag & drop tools. Your creativity can now travel around the world with a few simple steps.
Watch, record, and play digital TV programs
The Digital TV Station extends your multimedia experience to digital TV programs. Insert the DVB-T* USB TV tuner to the TS-251, and then you can log on to the Digital TV Station web interface to watch or record digital TV shows. The over-the-air EPG (Electronic Program Guide) is available for scheduled recordings. Just set recording schedules, sit back, and enjoy the shows on your computer whenever it's convenient.
The Digital TV Station supports DVB-T reception for "Free to air" broadcast. DVB-T reception is not available in every country. Please check the following webpage to check if DVB-T is available in your region:
https://www.dvb.org/about_dvb/dvb_worldwide/
Access, use, sync and enjoy with your tablets and smartphones
The TS-251 is your private cloud storage that virtually enlarges the capacity of your smart mobile devices. Qfile allows you to access, upload, download, manage, and share stored files easily as if you are carrying tons of files in your pocket. If Qfile is installed on an iOS device, users can also browse videos & photos stored on the TS-251 and play on a TV via Apple TV. Qmanager lets you monitor & manage the TS-251 remotely and efficiently without turning on a PC, while Qmusic allows you to listen to your music collections on the TS-251 anytime and anywhere, and download to enjoy offline.

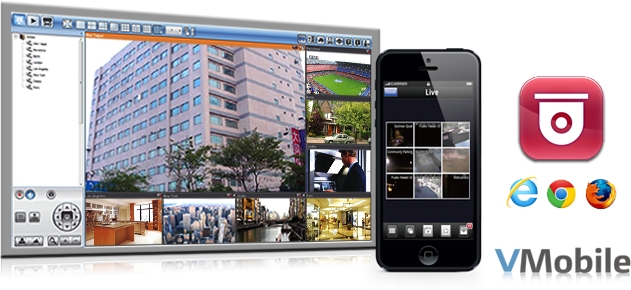

Comprehensive surveillance solution providing 24/7 security
The TS-251’s Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 2,600 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the VMobile app on your iOS® or Android™ devices to manage the monitoring of cameras anytime, anywhere, for total surveillance of your monitored environment.

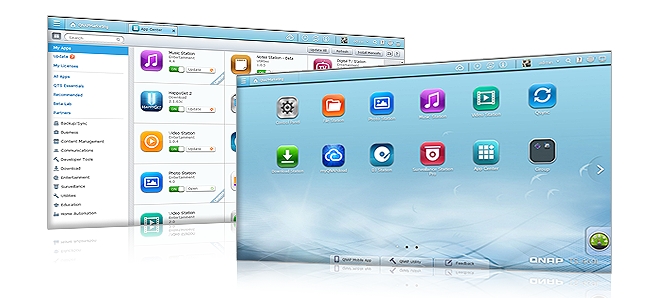

Install-on-demand apps to extend NAS functionality
The TS-251 has a built-in App Center that provides various install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TS-251.
Economical storage expansion with scale-up solution
The TS-251 offers a high performance yet affordable storage solution to fulfill the needs of small/home offices in archiving rapidly growing data & large files. The TS-251 supports online capacity expansion by connecting a QNAP expansion enclosure . With the QNAP scale-up solution, the raw storage capacity can be expanded on demand, making the TS-251 an ideal file center with large storage capacity for personal video collections.
The maximum raw storage capacity available by connecting a QNAP expansion enclosure:
| Turbo NAS Model |
QNAP Expansion Enclosure |
Max. No. of Expansion Enclosure |
Total HDD No.
(NAS + Enclosure) |
Max. Raw Capacity (TB)# |
| TS-251 |
UX-800P |
1 |
10 |
50 |
| UX-500P |
1 |
7 |
35 |
The maximum capacity is calculated by using 5TB HDDs.

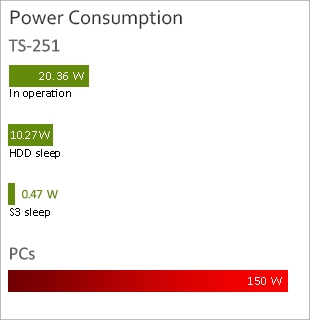

Energy-saving
The TS-251 utilizes a 22nm CPU and DDR3L RAM which feature low voltage, low power consumption, maintaining high performance in system operations with the benefit of energy-saving. Other eco-friendly designs include S3 sleep mode, HDD standby, scheduled power on/off, hard disk standby mode, and Wake on LAN.
NAS management can be just that easy.
The TS-251 provides comprehensive system tools to increase management efficiency.
Instant Alert Notifications
With the SMTP and SMS settings on the Turbo NAS, system administrators will get notifications via SMS or email if an error occurs.
Resource Monitor
A graphical interface is presented for easily monitoring CPU, memory, disk and network bandwidth usage, and the currently-running processes on the Turbo NAS.
Wake on LAN
Administrators can turn on the Turbo NAS via LAN to save energy and improve security.
The Turbo NAS supports Syslog server that collects logs from various connected devices over the Internet and saves the data, enabling centralized log management with greater efficiency.
Scheduled Power on/off
Administrators can flexibly set up the time of powering on/off the Turbo NAS, with a maximum of 15 schedules for setting powering on, off, or rebooting.
S.M.A.R.T. & Advanced Hard Drive Health Scan (HHS)
Administrators can flexibly set up the time of powering on/off the Turbo NAS, with a maximum of 15 schedules for setting powering on, off, or rebooting.
Comprehensive Event Logs
The Turbo NAS supports Syslog server that collects logs from various connected devices over the Internet and saves the data, enabling centralized log management with greater efficiency.
Additional features
The TS-251 supports various applications for home offices as an all-in-one Turbo NAS with cost-efficiency.
FTP Server
The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS for reduced IT costs.
Web Server
The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS for reduced IT costs.
Home Automation
The TS-251 supports the Control4 system to manage your newly added media and syncs with the Control4 system. You can enjoy your movies and control your home with a single remote, allowing a simple & easy way to enjoy your digital lifestyle.
VPN Server
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.
The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.
Plex Media Server
The TS-251 can be used as a Plex Media Server to stream your content to any Smart TV or Plex clients, including smartphones and tablets.
Software Spec
| Operating System |
| QTS 4.1 (embedded Linux) |
|
| Storage Management |
- Online Volume Expansion
- Single Disk, JBOD, RAID 0, 1
- Online RAID Capacity Expansion***
- Online RAID Level Migration
- Storage expansion via QNAP UX-500P / UX-800P expansion unit (Max: 1 unit)
- Bad block scan and hard drive S.M.A.R.T.
- Bad block recovery
- RAID recovery
- Bitmap support
|
|
| Supported Clients* |
-
Windows XP and Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX
|
|
| Power Management |
- Wake on LAN
- Internal hard drive standby mode
- Scheduled power on/off
- Automatic power on after power recovery
- USB and network UPS support with SNMP management
- System sleep mode (S3)**
|
|
| Supported Browsers |
- Chrome, IE 10 onward, Firefox, Safari
|
|
| Access Right Management |
- Batch users creation
- Import/export users
- User quota management
- Local user access control for CIFS, AFP, FTP, and WebDAV
- Application access control for Photo Station, Music Station, Video Station, and Multimedia Station
- Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
|
|
| Multilingual Support |
- Chinese (Traditional & Simplied), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
|
|
| myQNAPcloud Service |
- Private cloud storage and sharing with myQNAPcloud id (qid)
- Free host name registration (DDNS)
- Auto router (via UPnP) conguration
- Web-based file manager with HTTPS 2048-bit encryption
- Cloudlink for remote access without complicated router setup
- myQNAPcloud connect for easy VPN connection (Windows VPN utility)
|
|
| File System |
- Internal hard drive: EXT4
- External hard drive: EXT4, EXT3, NTFS, FAT32, HFS+
|
|
| Qsync |
- Syncs files among multiple devices with SSL support
- Selective synchronization for syncing specific folders only
- Share team folder as a file center for team collaboration
- Shares files by links via e-mail
- Policy settings for conflicted files and file type filter support
- Version control: up to 64 versions.
- Incremental synchronization for HDD space saving
- Supports Windows & Mac OS
|
|
| Networking |
- TCP/IP: IPv4 & IPv6(1)
- Dual Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming )
- Service binding based on network interfaces
- Proxy client, proxy server
- DHCP client, DHCP server
- Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour discovery
- USB Wi-Fi adapter support
|
|
| Web Administration |
- Multi-window, multi-tasking based system management
- Personalized desktop
- Smart toolbar and dashboard for neat display on system status
- Login screen with personalized photo-wall style
- Smart fan control
- Dynamic DNS (DDNS)
- SNMP (v2 & v3)
- Resource monitor
- Network recycle bin for file deletion via CIFS/SMB, AFP and File Station
- Automatic cleanup
- File type filter
- Comprehensive logs (events & connection)
- Syslog client/server
- System settings backup and restore
- Restore to factory default
- Mobile app: Qmanager for remote system monitoring & management
|
|
| Security |
- Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- CIFS host access control for shared folders

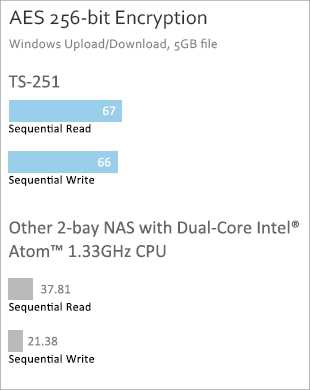

- FIPS 140-2 validated AES 256-bit volume-based data encryption*
- AES 256-bit external drive encryption*
- Importable SSL certicate
- Instant alert via E-mail, SMS, beep, and LCD panel*
|
|
|
| Powerful All-in-one server |
| File Server |
- File Sharing across Windows, Mac, and Linux/UNIX
- Windows ACL
- Advanced folder permission for CIFS/SMB, AFP, FTP
- Shared folder aggregation (CIFS/SMB)
|
|
| AirPlay |
- Streams videos, photos and music from NAS to Apple TV via Qle or QAirPlay's web-based controller
|
|
| FTP Server |
- FTP over SSL/TLS (Explicit)
- FXP supported
- Passive ftp port range control
|
|
| Digital TV Station |
- DVB-T Digital TV Live View, Recording, and Playback
- Supports up to 2 USB TV Tuners
- Electronic Programming Guide (EPG) with Scheduled Recording
Note: The availability of DVB-T broadcasting and EPG may vary depending on geographic locations.
|
|
| File Station |
- Supports ISO Mounting (Up to 256 ISO Files)
- Support thumbnail display of multimedia files
- Supported share download link and upload link
- Drag-n-drop Files via Chrome and Firefox Browsers
- Photo, music, and video preview and playback with hardware accelerated transcoding
- File Compression (ZIP or 7z)
|
|
| Download Station |
- PC-less BT, FTP/FTPS, and HTTP/HTTPS download (up to 500 Tasks)
- BT download with Magnet Link and PT support
- Scheduled download and bandwidth control
- RSS subscription and download (broadcatching)
- Bulk download with wildcard settings
- BT search
- Proxy support for BT download
- PC utility: Qget for downloads browsing and management
- Mobile app: Qget for downloads browsing and management
|
|
| Transcode Management |
- Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution
- Automatic video transcoding for watched folders
- Hardware accelerated transcoding support
|
|
| HD Station |
- Playbacks videos, music, photos on tv with xbmc via hdmi output
- Watch various online contents such as Youtube, Flickr, Picasa, Shoutcast, etc.
- Web browser
- Supports USB U.S. keyboard and mouse
- Supports QNAP Qremote app and the official XBMC remote app
Note:
The playback and quality of some video les may be affected due to the current CPU and GPU's decoding capability.
Up to 7.1 channel audio passthrough can be supported
|
|
| Backup Station |
- Remote replication server (over rsync)
- Real-time remote replication (RTRR) to another QNAP NAS or FTP server
- Works as both RTRR server & client with bandwidth control
- Real-time & scheduled backup
- Encryption, compression, file filter, and transfer rate limitation
- Encrypted replication between QNAP NAS servers
- Desktop backup with QNAP NetBak Replicator for Windows
- Apple Time Machine backup support
- Data backup to multiple external storage devices
- Synchronizes with cloud storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Drive
- Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
|
|
| Surveillance Station |
- Supports over 2,100 ip cameras
- Includes 2 free camera licenses, up to 24 camera channels via additional license purchase
- Instant playback to check the recent event
- Online editing to edit cameras when live view
- Visual aid by e-map
- Playback and speed control by shuttle bar
- Video preview on playback timeline
- Intelligent video analytics (iva) for advanced video search
- Surveillance client for Mac
- Mobile surveillance app: vmobile (iOS and Android)
- Mobile recording app: vcam (iOS and Android)
|
|
| Cloud Backup Station |
- Amazon S3
- Amazon Glacier
- Webdev-based cloud storage
- Microsoft Azure
- Open Stack
|
|
| Notes Station |
- Take notes of everything on your private cloud
- Collaborate notes with multi users
- Support graphical editor for note editing
- Integrate with NAS file system: insert attachment or image from NAS file system
- Support event calendar and to-do list
- Support image editor: a easy way to highlight the focus in your image
- Support note publishing with a single link
- Support key word search
- Provide Chrome Extension: Notes Station Clipper
- Clip web page content to your note
|
|
| Print Server |
- Max number of printers: 3
- Print job display and management
- IP-based and domain name-based privilege control
|
|
| VPN Server |
- Secure remote access: PPTP & OpenVPN VPN services
- Max number of clients: 30
|
|
| Photo Station |
- Show photos in thumbnails, list, timeline, or folder view
- Supports virtual/smart album
- Validity control for sharing albums
- Tags photos with text, color, and rating
- Slideshows with background music and different transition effects
- Animated thumbnails for videos
- Geotags photos and display them on Google maps
- Shares slideshows link to social websites or through email
- Supports Facebook friends login
- Supports modification on photo taken date
|
|
| Domain Authentication Integration |
- Microsoft Active Directory (AD)
- LDAP server, LDAP client
- Domain users login via CIFS/SMB, AFP, FTP, and File Station
|
|
| Music Station |
- Plays or shares music collections with web browser
- Automatic classification via Media Library
- Internet radio streaming (MP3)
- Up to 8 music alarms
- Mobile app: Qmusic for music playing and management
|
|
| App Center |
- More than 100 official and community software add-ons (ex: Dropbox, Google Drive Sync, McAfee, WordPress, HappyGet II, etc.)
|
|
| iTunes Server |
- Audio and Video Sharing for Windows & Mac iTunes
|
|
| Virtualization Station |
- Support one Virtual Machine (VM) creating to run an operating system such as Windows, Linux, Unix.
- VM import from Virtual Appliances
- VM export into a virtual appliance in OVF / QVM format
- VM clone
- VM snapshot
- HTML5 based shared remote console
|
|
| Video Station |
- Show photos in thumbnails, list, timeline, or folder view
- Supports virtual/smart collection
- Validity control for sharing collections
- Tags videos with text, color, and rating
- Animated thumbnails for videos
- Shares video collection link to social websites or through email
- Sorting videos automatically into defined classifications
- Display movie information from IMDB
|
|
| Signage Station |
- Support dynamic content includes video, image, music, and text message
- Support multi users collaboration
- Support searching keywords,
- Support email and social network sharing
- Support design software - iArtist Lite
- Support account authority management
- Support various browser playback ( Chrome, Firefox, IE, Safari)
- Support most viewed, latest released and different categories content list
|
|
| DLNA Server |
- Supports DLNA/UPnP TVs and players such as PlayStation 3 and Xbox 360
- Video and audio on-the-y transcoding
|
|
| Mobile App: |
- Qfile: iOS, Android Phone, window phone
- Qfile HD: iPad version
- Qmanager: iOS, Android Phone
- Qmusic: iOS, Android Phone
- Qremote: iOS, Android Phone
- Qget: Android Phone
- Vmobile: iOS, iPad, Android Phone
|
|
|
(1). Not all services are supported.
* The data encryption functions may not available in accordance with the legislative restrictions of some countries.
Design and specifications are subject to change without notice.
|
Specifications
| CPU |
Intel Celeron 2.41GHz dual-core processor (burst up to 2.58GHz) |
| DRAM |
1GB DDR3L RAM (expandable up to 8GB)
NOTE:
For the information of RAM module installation and compatible NAS models, please refer to theQNAP RAM Module Installation Guide |
| Flash Memory |
512MB DOM |
| Hard Disk Drive |
2 x 3.5 or 2.5 SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit https://www.qnap.com/compatibility |
| Hard Disk Tray |
2 x Hot-swappable tray |
| LAN Port |
2 x Gigabit RJ-45 Ethernet port |

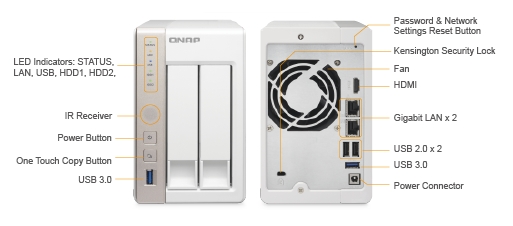

| LED Indicators |
Status, LAN, USB, HDD 1, HDD 2 |
| USB |
2 x USB 3.0 port (Front: 1, Rear: 1)
2 x USB 2.0 port (Rear: 2)
Support USB printer, pen drive, and USB UPS etc. |
| HDMI |
1 |
| Buttons |
Power/Status, USB One-Touch-Backup, reset |
| Alarm Buzzer |
System warning |
| IR Receiver |
MCE-compatible |
| Form Factor |
Tower |
| Dimensions |
168.5(H) x 102(W) x 225(D) mm
6.63(H) x 4.02(W) x 8.86(D) inch |
| Weight |
Net: 1.28 kg (2.82 lbs) / Gross: 2.32 kg (5.11 lbs) |
| Power Consumption (W) |
HDD standby: 10.28W
S3 sleep: 0.47W
In operation: 19.22W
(with 2 x 1TB HDD installed) |
| Temperature |
0-40C |
| Humidity |
5~95% RH non-condensing, wet bulb: 27C |
| Power Supply |
External Power Adapter, 60W, 100-240V |
| Secure Design |
Kensington security slot for theft prevention |
| Fan |
1 x quiet cooling fan (7 cm, 12V DC) |
