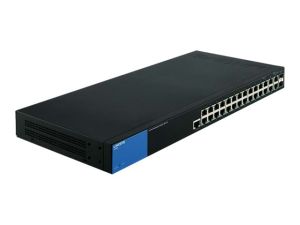

Linksys LGS528-AU Managed Gigabit Switch - 28-Port 10/100/1000 Switch

No Longer Available

Part Number:

365619

(?) Brand:

Linksys Web Site

Manuf No:

LGS528-AU
LGS528AU

Shipping Weight:

4 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

LGS528AU, LGS528-AU, 745883635535

Linksys Business LGS528 - Switch - Managed - 26 x 10/100/1000 + 2 x combo Gigabit SFP - rack-mountable

GENERAL
Device Type	Switch - 28 ports - Managed
Enclosure Type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	26 x 10/100/1000 + 2 x combo Gigabit SFP
Performance	Forwarding performance: 41.67 Mpps Switching capacity: 56 Gbps
Capacity	Active VLANs: 1024 QoS hardware entries: 4 Static routes: up to 64 ACL rules: up to 512
MAC Address Table Size	16K entries
Jumbo Frame Support	9000 bytes
Routing Protocol	Static IPv4 routing
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP
Authentication Method	RADIUS
Features	ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, fanless, DHCP relay, IP-MAC binding, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az
RAM	128 MB
Status Indicators	System, link/activity
EXPANSION / CONNECTIVITY
Interfaces	28 x 1000Base-T RJ-45 1 x console RJ-45 2 x SFP
POWER
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
MISCELLANEOUS
Localisation	Australia
DIMENSIONS &WEIGHT
Width	44 cm
Depth	20 cm
Height	4.445 cm
Weight	2.43 kg
MANUFACTURER WARRANTY
Service &Support	Limited warranty - lifetime
ENVIRONMENTAL PARAMETERS
Min Operating Temperature	0 C
Max Operating Temperature	50 C
Humidity Range Operating	10 - 90%
Min Storage Temperature	-20 C
Max Storage Temperature	70 C
Humidity Range Storage	10 - 90% (non-condensing)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 year return to base

Full manufacturers warranty details are available at the manufacturers (Linksys) web site.
