AC750 Wireless Dual Band Gigabit Router
Archer C2
Highlights:
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 2 detachable external antennas provide stable omnidirectional signal and superior wireless coverage
- Full gigabit ports ensure ultrafast data transfer speeds
- USB port - share a printer locally and files & media with networked devices or remotely via FTP server
Overview
802.11ac - The Next Generation of Wi-Fi
TP-LINKs Archer C2 comes with the next generation Wi-Fi standard 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.

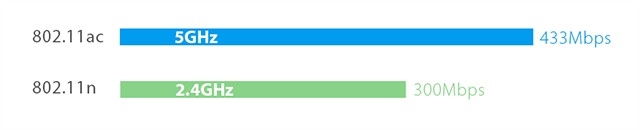

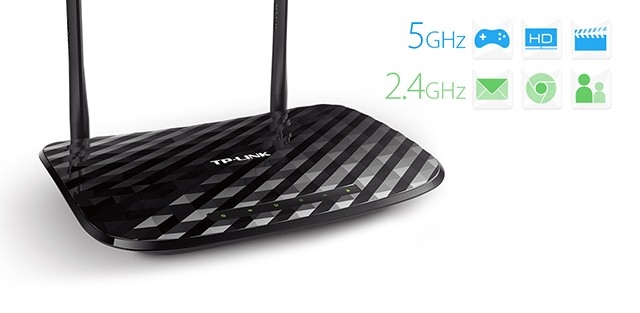

733Mbps Dual Band Connections for Lag-Free Work and Entertainment
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C2 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time.

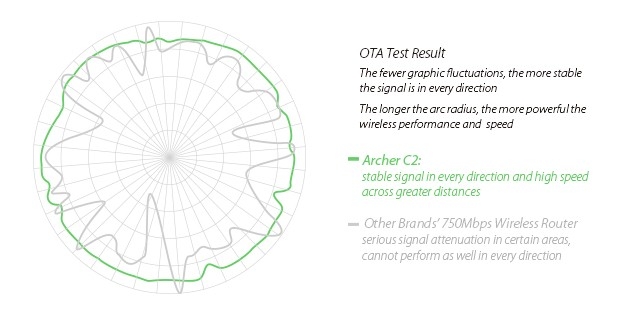

Stable Omnidirectional Signal and Superior Coverage
With 2 detachable external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10 faster than fast Ethernet connections. The Archer C2 is a powerful hub to support a robust and extremely fast wired network.

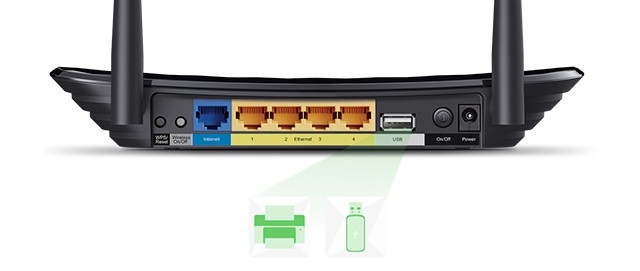

Easy USB Storage and Sharing
With the USB port, you can share a printer locally and files & media with networked devices or remotely via FTP server.
Guest Network
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network in a controlled manner without needing to expose private Wi-Fi access codes or other personal data.
Parental Control
Parental Control allows parents or administrators to establish restricted access policies for children or staff.
Easy Setup
Included in the resource CD, TP-LINK's optimized configuration utility can help users complete the entire software installation and wireless network settings in just a few minutes.
IPv6 Supported
Archer C2 supports IPv6, which is the foundation of the next generation of the Internet and enables a range of new services and improved user experience.
Features
Wireless and Wired Performance
- Supports 802.11ac - the next generation of Wi-Fi, compatible with 802.11n
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- 2 detachable external antennas provide stable omnidirectional signal and superior wireless coverage
- USB port - share a printer locally and files & media with networked devices or remotely via FTP server
- Full gigabit ports ensure ultrafast data transfer speeds
Control and Security
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Parental Controls allow parents or administrators to establish restricted access policies for children or staff
- IP-based Bandwidth Control makes it easier for you to manage the bandwidth of devices connected to the router
- SPI and NAT firewall protects end-user devices from potential attacks from the Internet
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
Ease of Use
- Easy one-touch WPA wireless security encryption with the WPS button
- Wi-Fi On/Off Button allows users to turn their wireless radio on or off
- Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
Others
- IPv6 supported, meeting the demands for the next generation of the Internet
Specifications
|
HARDWARE FEATURES
|
| Interface |
4 10/100/1000Mbps LAN ports
1 10/100/1000Mbps WAN port
1 USB 2.0 port |
| Button |
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button |
| External Power Supply |
12VDC /1.5A |
| Dimensions (W X D X H) |
9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm) |
| Antenna Type |
Two dual band detachable antennas (RP-SMA) |
|
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps |
| EIRP |
<20dBm(EIRP) |
| Reception Sensitivity |
5GHz
11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm
11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm,
11n HT20: -71dBm, 11n HT40: -69dBm
2.4GHz
11g 54M: -74dBm
11n HT20: -72dBm, 11n HT40: -69dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
|
SOFTWARE FEATURES
|
| WAN Type |
Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
| DHCP |
Server, Client, DHCP Client List,
Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall
IP Address Filtering/MAC Address Filtering/Domain Filtering
IP and MAC Address Binding |
| Protocols |
Supports IPv4 and IPv6 |
| USB Sharing |
Support Samba(Storage)/ FTP Server/Media Server/Printer Server |
| Management |
Access Control
Local Management
Remote Management |
| Guest Network |
2.4GHz guest network 1
5GHz guest network 1 |
|
OTHERS
|
| Certification |
CE, FCC, RoHS |
| Package Contents |
AC750 Wireless Dual Band Gigabit Router Archer C2
2 Detachable Antennas
Power Supply Unit
Resource CD
Ethernet Cable
Quick Installation Guide |
| System Requirements |
Windows 8/7/Vista/XP, Mac OS or Linux-based operating system |
| Environment |
Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
