All stock codes associated to this product
ARCHERC5, ARCHER C5, NWTLARCHERC5, NWTL-ARCHERC5, 6935364070816, 6935364091699
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth
- Dual USB Ports - easilyshare a printer locally and files & media with networked devices or remotely via FTP server
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Easy network management at your fingertips with TP-LINK Tether
Overview
802.11ac - The Next Generation of Wi-Fi

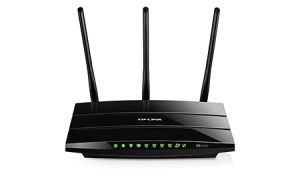

TP-LINKs Archer C5 comes with the next generation Wi-Fi standard 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.2Gbps. With 867Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, the Archer C5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
1.2Gbps Dual Band Connections for Lag-Free Work and Entertainment
The Archer C5 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time.
6 Antennas for Fully Expanded Coverage
With 3 external 5dBi antennas serving the 5GHz band and 3 internal antennas serving the 2.4GHz band combined with higher quality antenna technology, you can maintain high speeds across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10 faster than fast Ethernet connections. The Archer C5 is a powerful hub to support a robust and extremely fast wired network.
Dual Multifunctional USB Ports for Storage and Sharing
With the two multi-functional USB 2.0 ports, you can share a printer locally and files & media with networked devices or remotely via FTP server.
TP-lINK Tether - Easy Network Management
TP-LINK's Tether App provides the easiest way to access, manage and share your router's resources with your iOS and androiddevices. From setup, to parental control, to media sharing, Tether provides a simple, intuitive user interface to see what the status of your router is, who's online and what their privileges are.
Guest Network
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.
Easy Set-up
Included in the resource CD, TP-LINK's optimized configuration utility can help users complete the entire software installation and wireless network settings in just a few minutes.
IPv6 Supported
Archer C5 supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improved user experiences.
Features
- Supports 802.11ac - The next generation of Wi-Fi
- Dual band for combined wireless speeds of up to 1.2Gbps at 2.4GHz and 5GHz band concurrently
- Full gigabit ports ensure ultra fast data transfer speeds
- Easy network management at your fingertips with TP-LINK Tether
- Dual USB Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- 3*5dBi external antennas and 3 internal antennas provide maximum Omni-directional wireless coverage and reliability
- IPv6 supported, meeting the demands for the next generation of Internet
- IP-based Bandwidth Control makes it easier for you to manage the bandwidth of devices connected to the router
- Wi-Fi On/Off Switch allows users to turn their wireless radio On or Off
- Easy one-touch wireless security encryption with the WPS button
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
- Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
- Compatible with 802.11 a/b/g/n/ac products
Specifications
| HARDWARE FEATURES |
| Interface |
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Ports |
| Button |
WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button |
| External Power Supply |
12VDC / 2.5A |
| Dimensions (W X D X H) |
9.6x6.4x1.3 in. (243x160.6x32.5mm) |
| Antenna Type |
3 * 5GHz 5dBi detachable antennas (RP-SMA)
3 * 2.4GHz internal antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz |
| Frequency |
5GHz and 2.4GHz |
| Signal Rate |
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps |
| EIRP |
<20dBm(EIRP) |
| Reception Sensitivity |
5GHz:
11a 6Mbps: -96dBm
11a 54Mbps: -79dBm
11ac HT20: -71dBm
11ac HT40: -66dBm
11ac HT80: -63dBm
11n HT20: -72dBm
11n HT40: -71dBm
2.4GHz:
11g 54M: -77dBm
11n HT20: -74dBm
11n HT40: -72dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES |
| WAN Type |
Dynamic IP/Static IP/PPPoE/
BigPond/ /L2TP(Dual Access) /PPTP(Dual Access) |
| DHCP |
Server, Client, DHCP Client List,
Address Reservation |
| Quality of Service |
WMM, Bandwidth Control |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, Comexe, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
| Protocols |
Supports IPv4 and IPv6 |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Access Control
Local Management
Remote Management |
| Guest Network |
2.4GHz guest network 1
5GHz guest network 1 |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
AC1200 Wireless Dual Band Gigabit Router Archer C5
3 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
