All stock codes associated to this product
WD3200BUCT, HDDWDDT320AV

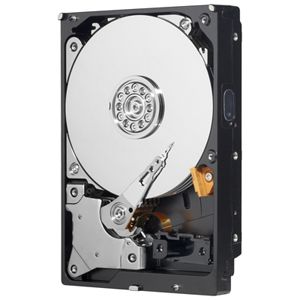

AV Hard Drives
WD AV
Features
Highest capacity for audio/video storage
WD AV SATA drives now offer unrivaled storage capacity up to 4 TB perfect for todays storage intensive applications.
24x7 reliability
These drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR, DVR and IPTV systems.
SilkStream
Optimized for smooth, continuous digital video playback of up to 16 simultaneous HD streams.* SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.
Low power consumption
WD AV drives consume less power by up to 40 percent compared to 7200 RPM hard drives. Lower power means less heat and greater reliability.
Low Capacity and 2.5-inch Surveillance
WD AV drives offer 500 GB and lower capacities suitable for low profile entry level surveillance systems requiring reliability in always-on environments.
IntelliSeek
Calculates optimum seek speeds to lower power consumption, noise, and vibration.
IntelliPower
A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. (3.5-inch models only)
Advanced Format Technology
Leading edge technology delivers improved video quality and AV performance through enhanced error correction capability. (EURS/EURX/AUDX/xxCT models only)
Ultra-cool operation
A cool drive is a more reliable drive. WD continues to develop new and innovative ways to keep drives cool while they are operating.
Quiet
Noise levels have been minimized to less than one sone** - virtually below the threshold of human hearing.
A sone is a subjective unit of loudness as perceived by a person with normal hearing.
Preemptive Wear Leveling (PWL)
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.
The WD advantage
WD puts our products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.
Recommended use
Set-top boxes (PVR, DVR, NVR and IPTV), media servers and media centers.
Specifications
| Product Specifications |
|
| |
Interface |
SATA 3 Gb/s |
| |
| Performance Specifications |
|
| |
Rotational Speed |
5,400 RPM (nominal) |
| |
Buffer Size |
16 MB |
| |
Average Latency |
5.50 ms (nominal) |
| |
Load/unload Cycles |
300,000 minimum |
| |
Acoustics (Sone) |
< 1 |
| |
| Transfer Rates |
| |
Buffer To Host (Serial ATA) |
3 Gb/s (Max) |
| |
| Physical Specifications |
|
| |
Formatted Capacity |
320,072 MB |
| |
Capacity |
320 GB |
| |
Form Factor |
2.5 Inch |
| |
User Sectors Per Drive |
625,142,448 |
| |
| Physical Dimensions |
|
| English |
| |
Height |
0.374 Inches |
| |
Depth |
3.94 Inches |
| |
Width |
2.75 Inches |
| |
Weight |
0.22 Pounds |
| |
| Metric |
| |
Height |
9.5 mm |
| |
Depth |
100.2 mm |
| |
Width |
69.85 mm |
| |
Weight |
0.10 kg |
| |
| Environmental Specifications |
|
| Shock |
| |
Operating Shock (Read) |
350G, 2ms |
| |
Non-operating Shock |
1000G, 2 ms |
| |
| Acoustics |
| |
Idle Mode |
22 dBA (average) |
| |
Seek Mode 0 |
25 dBA (average) |
| |
| Temperature (English) |
| |
Operating |
32 F to 140 F |
| |
Non-operating |
-40 F to 149 F |
| |
| Temperature (Metric) |
| |
Operating |
-0 C to 60 C |
| |
Non-operating |
-40 C to 65 C |
| |
| Electrical Specifications |
|
| Current Requirements |
| |
Power Dissipation |
| |
Read/Write |
2.50 Watts |
| |
Idle |
0.85 Watts |
| |
Standby |
0.20 Watts |
| |
Sleep |
0.20 Watts |
| |
| Compatibility |
|
| Operating System |
| |
Compatibility |
Windows/Mac |
| |
| As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second. |
