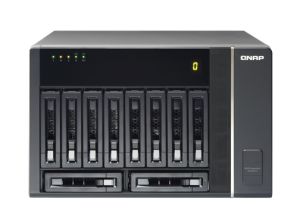

REXP-1000 Pro
SAS/SATA/SSD RAID Expansion Enclosure for Turbo NAS
- Maximum 10 hard drives per expansion enclosure
- Maximum 4 expansion enclosures per Turbo NAS, max. 250TB raw capacity
- 24Gbps mini SAS connection
Features
Flexible storage scalability for Turbo NAS. Simple & flexible.
The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 250TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.
Highlights:
- Plug and use, seamless capacity expansion
- Missing mode protection
- High density, high efficiency and high scalability
- Flexible management with the QTS Storage Manager
- Supports SAS/SATA 6Gbps HDD and SSD
- Backup storage for the Turbo NAS
Supported Turbo NAS models and maximum number of applicable expansion enclosures.
| Turbo NAS models |
TS-EC1080 Pro |
TS-EC880 Pro |
TS-1079 Pro |
TS-879 Pro
TS-870 Pro
TS-870 |
TS-670 Pro
TS-670 |
TS-470 Pro
TS-470 |
| RAM of NAS |
>= 4GB |
>= 4GB |
2GB |
2GB |
2GB |
2GB |
| Maximum number of REXP-1000 Pro |
4* |
4* |
2 |
2 |
2 |
2 |
| Maximum number of hard drives |
50 |
48 |
30 |
28 |
26 |
24 |
| Maximum raw capacity** |
250 TB |
240 TB |
150 TB |
140 TB |
130 TB |
120 TB |
| Maximum RAID group size |
40 TB |
| Maximum number of RAID groups per storage pool |
128 |
| Maximum storage pool size |
200 TB |
192 TB |
120 TB |
112 TB |
104 TB |
96 TB |
| Maximum number of storage pools per system |
128 |
| Maximum flexible volume size |
200 TB |
192 TB |
120 TB |
112 TB |
104 TB |
96 TB |
| Maximum iSCSI LUN size |
200 TB |
192 TB |
120 TB |
112 TB |
104 TB |
96 TB |
The TS-EC880 Pro and TS-EC1080 Pro are shipped with 2GB RAM which supports a maximum of two REXP-1000 Pro expansion enclosures. Upgrading to 4GB RAM allows them to support up to four REXP-1000 Pro.
The maximum capacity is calculated by 5TB HDDs.
Plug and use, seamless capacity expansion
Simply connect a REXP-1000 Pro to a Turbo NAS* and power it on. The Turbo NAS will detect the hard drives in the REXP-1000 Pro as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager.
Optional purchase of SAS expansion card and QTS 4.1.0 (or newer) are required for the Turbo NAS.

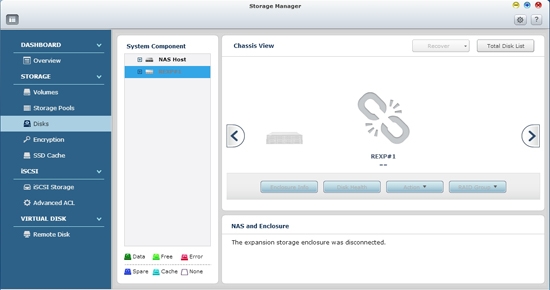

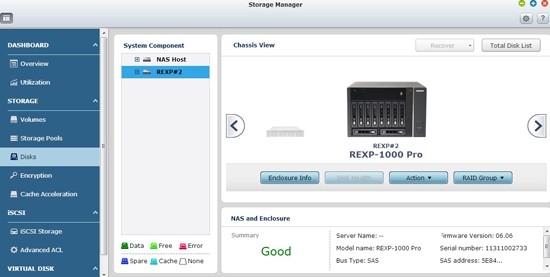

Missing mode protection
When disconnection of the expansion enclosures occurs, the Turbo NAS enters missing mode automatically and blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data staying intact when the disconnection is resolved.

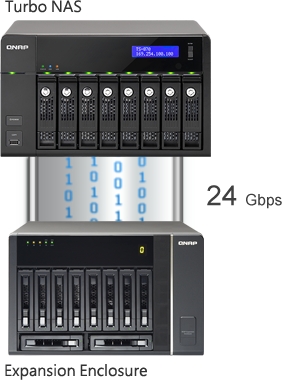

High density, high efficiency and highly scalable

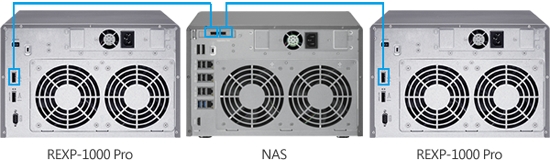

The REXP-1000 Pro supports 10 hard drives and 50TB raw capacity, and has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24Gbps per host connection.

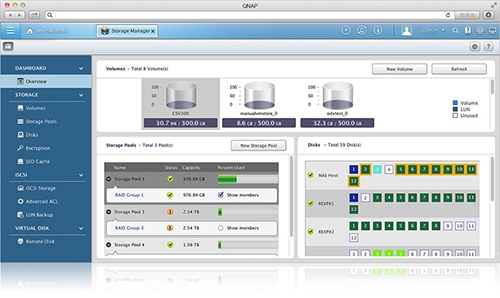

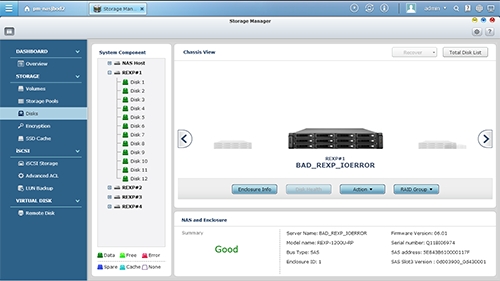

Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1000 Pro management. IT administrators can easily monitor the health status of REXP-1000 Pro and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.
An excellent backup solution for the Turbo NAS
In addition to expanding an existing volume, IT administrators can use the REXP-1000 Pro as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1000 Pro on a real time or scheduled basis.
Flexible drive selection
The REXP-1000 Pro offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high stability SSDs for I/O intensive operations.
Accessories(optional purchase)
| Order P/N |
Product descriptions |
 |
SAS-6G2E-D |
- Dual-wide-port storage expansion card, SAS 6Gbps.
- Applied NAS models: TS-EC1080 Pro, TS-EC880 Pro, TS-1079 Pro, TS-879 Pro, TS-870 Pro, TS-870, TS-670 Pro, TS-670, TS-470 Pro, TS-470
Note: The storage expansion card is to be installed in the NAS for connecting to the RAID Expansion Enclosures.
|
 |
CAB-SAS10M-8088 |
Mini SAS external cable (SFF-8088 to SFF-8088), 1.0 m |
|
CAB-SAS05M-8088 |
Mini SAS external cable (SFF-8088 to SFF-8088), 0.5 m |
Software Spec.
Expansion Enclosure Management
The functions listed below are managed via the QNAP QTS operating system.
- Support for hard disks S.M.A.R.T. capacity
- RAID expansion enclosure LED identifier
- Location indication of RAID expansion enclosure
- Location indication of hard disks on RAID expansion enclosure
- Smart fan control
- In-band firmware update
QNAP Flexible Volume
The disks, RAID Groups, storage pools, and volumes in the RAID expansion enclosures are configured via the QTS operating system.
- Support for multiple RAID groups in a storage pool to ensure data safety
- Online storage pool expansion
- Online volume expansion
- Block-based iSCSI LUN
- Support for thin-provisioned volume with space reclamation
- Support for thin-provisioned iSCSI LUN with space reclamation

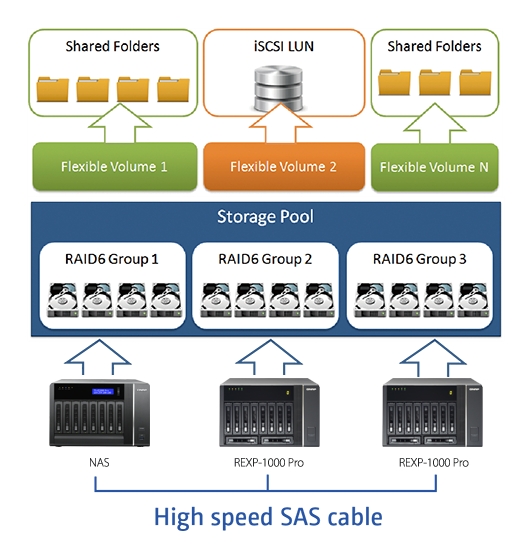

QNAP Flexible Volume Architecture

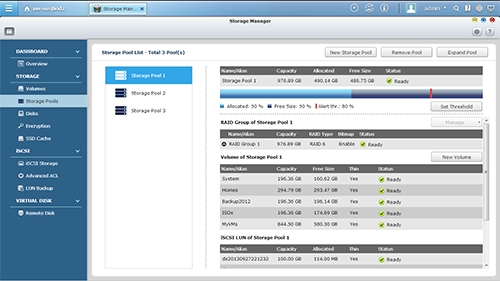

Intelligent Storage Manager
The QTS 4.0 Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical interface. From reviewing the system storage allocation in the Dashboard, to managing volumes, Storage Pools, disks and iSCSI storage, the Storage Manager provides a centralized place to ease the work of storage management.
Specifications
| Host Interface |
Two SAS 6Gbps 4x wide port (IN port, OUT port) |
| Hard Drive |
10 x 3.5-inch SAS/SATA 6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard drive
Note:
- The standard system is shipped without hard drives..
- For the hard drive compatibility list, please visit compatibility
|
| LED Indicators |
Front panel: Status, fan error, system over heat, SAS link, SAS error, enclosure ID |
| Form Factor |
Tower |
| Dimensions |
217.5(H) x 327(W) x 321.2(D) mm
8.54(H) x 12.87(W) x 12.65(D) inch |
| Weight |
Net weight (NAS only) : 9.24 kg/20.37 lb
Gross weight (with packing and accessories) : 13.78 kg/30.38 lb |
| Sound Level |
Standby: 24.5 dB
In operation: 34.6 dB |
| Power Consumption |
Sleep mode: 63.6W
In operation: 169.52W
(with 10 near line SAS hard drive installed) |
| Temperature |
0-40C |
| Relative Humidity |
5~95% RH non-condensing, wet bulb: 27C. |
| Power Supply |
ATX 350W, Input: 110-240 Vac~, 47-63Hz, 5A |
| COM Port |
Reserved for system maintenance |
| Fan |
2 x 12 cm smart cooling fan |
|

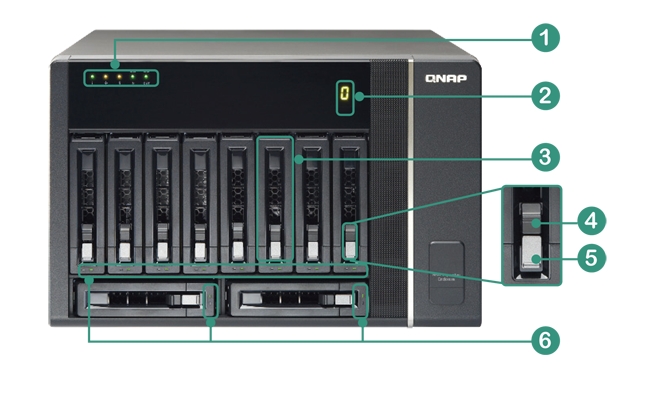

Front View:
| 1 |
LED Indicators: Status, Fan Error, System Over Heat, SAS Link, SAS Error |
| 2 |
Enclosure ID |
| 3 |
Hard Drive Tray |
| 4 |
Tray Lock |
| 5 |
Release Button |
| 6 |
Hard Drive LEDs |

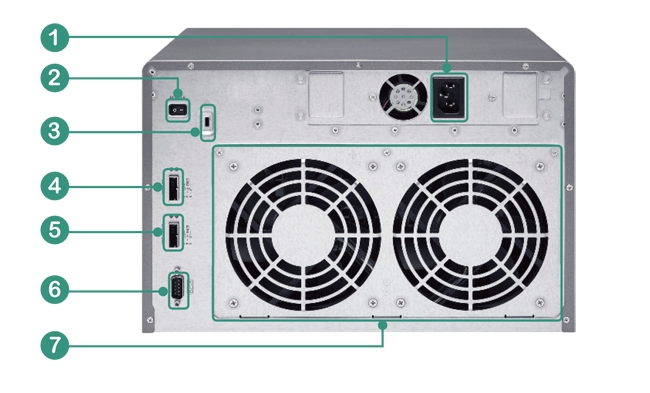

Rear View:
| 1 |
Power Connector |
| 2 |
Power Switch |
| 3 |
K-Lock Security Slot |
| 4 |
IN Port |
| 5 |
OUT Port |
| 6 |
COM Port (Reserved) |
| 7 |
System Cooling Fans |
|
