EZ-Fit PRO MB082SP Full Metal Dual 2.5" SSD/HDD Mounting Kit / Bracket
MB082SP
Overview
Icy Dock is proud to introduce the MB082SP, the newest product in the incredibly popular SSD/HDD bracket & converter line. Easy installation and Durability is the key to this product, perfect for users that require the best physical protection of their data, with the least amount of hassle of installation.

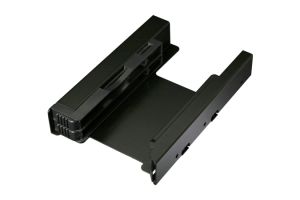

The MB082SP made of metal and has a matte black finish, eloquently made to protect your SSDs or hard drives, while allowing one to use it in most PC cases. The screw placement is on both the sides and bottom of the bracket, which are of the exact locations of a 3.5” hard drive. The tool-less drive installation creates a simple way to install your SSD/HDD. Once that is done, then install as you would normally do with a 3.5” hard drive. All that is needed is to slide the SSDs or hard drives in and the drives will automatically lock into place and secured by an EZ-Lock mechanism. The EZ-Lock works just like the way you install a battery in a compact digital camera. The EZ-Lock design not only benefits when you first install a drive, but also when you need to replace a failed SSD or hard drive. Unlike other brand’s bracket, you are no longer forced to deal with 12 small tiny screws, with the EZ-Lock system, simply toggle the EZ-Lock, pop up the drive and replace the failed drive in no time. This is perfect for a system that uses RAID. To reduce the amount of vibration in the drives and the case the MB082SP has a built in unique anti-vibration technology for each bay of the device.
For system builders installing drives using the traditional screw mounting method can really slow your production down. The MB082SP features a quick screw less drive installation that cuts assembly time down. System builders, gamers, and DIY users, would benefit greatly from the MB082SP. The heavy duty solid metal construction and the simplicity of the drive installation make protecting and swapping your hard drives as easy as 1 2 3.
Compatible Drive Type
2.5" IDE Hard Drive
2.5” SATA Hard Drive
2.5” SATA Solid State Drive
2.5” IDE Solid State Drive
Fits any 9.5mm height drive
Key Features

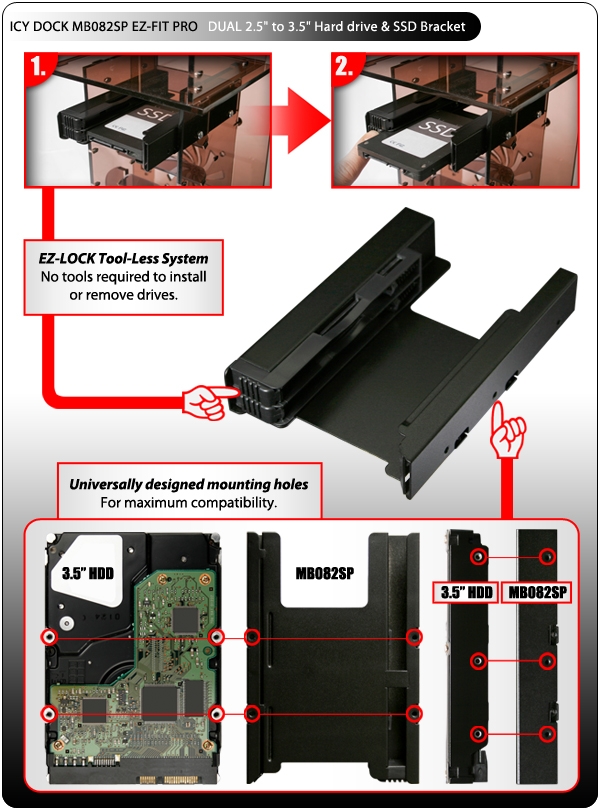

EZ-Lock mechanism for tool-less drive installation
Heavy Duty Full metal construction with matte black finish
Fits 2 x 2.5” SSD/HDD into one 3.5” drive bay
Compatible with SSD or hard drives with 9.5mm height
Anti-Vibration design for improved reliability
Universally designed screw placement for maximum compatibility
Specifications
|
ICY DOCK EZ-FIT PRO MB082SP2 x 2.5" to 3.5" Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter
|
|
|
|
|
|
Compatible Drive Type :
|
2.5" SATA/IDE HDD & SSD
Support 9.5mm drive thickness in height
|
|
|
Device Fit :
|
Internal 3.5" device bay
|
|
|
Support HDD Capacity :
|
No Limitation
|
|
|
|
|
Dimension (L x W x H) :
|
146 x 102 x 25mm
|
|
|
|
