EZ-Fit MB990SP-B Tool-less Dual 2.5" SSD/HDD Mounting Kit / Bracket
MB990SP-B
Compatibility
Overview

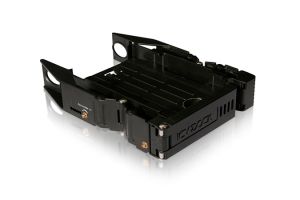

Introducing the Icy Dock EZ-FIT MB990SP-B Dual 2.5” to 3.5” SATA and IDE Solid State and Hard Disk Drive Converter. This dual bay drive bracket allows you to use two SATA or IDE SSD and HDD in an internal 3.5” drive bay in most standard cases. Since most cases are not set up to use 2.5” form factor, the MB990SP-B allows you to make a huge upgrade to your system with very little effort.
The bracket will fit most types of cases. Out of the box it can be used in both tool-less and standard cases. The EZ Fit pins on the sides of the bracket fit into most standard mounting holes, and are also removable to use either your case’s proprietary mounting brackets, or to use screws for a more secure fit.
The EZ FIT bracket is extremely lightweight and has an open air design for maximum air flow and cooling of the drives.
Most standard 2.5” IDE or SATA drives can be used due to the open back design, allowing use of direct connections to the drive, also giving the user flexibility to mix and match drives.
How to use the MB990SP-B

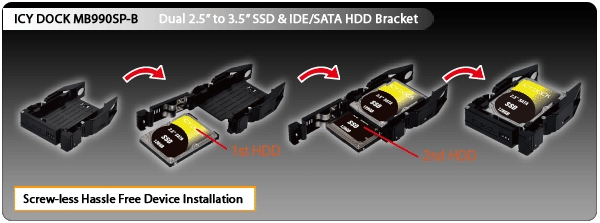

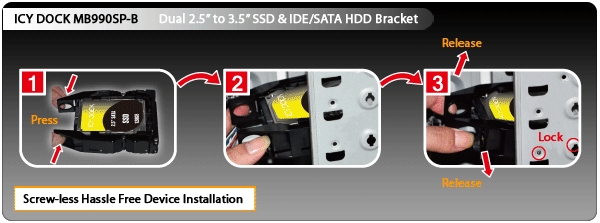

Simply insert the drive or drives into the front loading slots, close the latch, and it is now ready to be installed in the case. To install, compress the two tabs at the rear, and place in the drive bay. When the tabs are released, the included pins will pop into place into your case’s mounting holes, and installation is complete. Some cases use their own drive trays or brackets, or one may want to use his or her own mounting screws. To install the bracket this way, unscrew the gold pins in the mounting hole locations, and the case trays or screws can now be installed.
Compatible Drive Type
2.5" IDE Hard Drive
2.5” SATA Hard Drive
2.5” SATA Solid State Drive
2.5” IDE Solid State Drive
Fits any 9.5mm height drive
Key Feature
- Fits standard 2.5” SATA / IDE SSD and HDD(9.5mm).
- Lightweight constructions.
- For use in 3.5” internal drive bay.
- Compatible with screw-less type HDD tray.
- Genuine Plug & Play functionality.

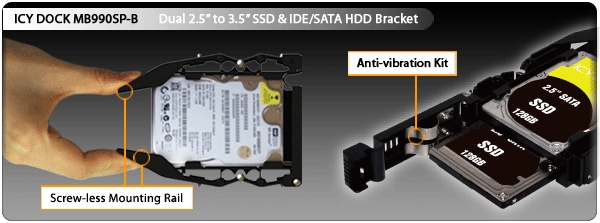

- Unique tool-less design for hassle free device and hard drive installation.
- Ideally designed for anti-vibration and heat dissipation.
- EZ Fit pins removable for use mounting screw or proprietary tray use.
Specifications
|
ICY DOCK EZ-FIT MB990SP-B 2 x 2.5" to 3.5" Drive Bay SATA SSD/HDD Mounting Kit / Bracket / Adapter
|
|
|
|
|
|
Compatible Drive Type :
|
2.5" IDE / SATA SSD & hard drive (up to 9.5mm height)
|
|
|
Device Fit :
|
Internal 3.5" device bay
|
|
|
Support HDD Capacity :
|
No Limitation
|
|
|
|
|
Dimension (L x W x H) :
|
143 x 106 x 26 mm
|
|
|
|
