All stock codes associated to this product
J9855A, 2734169, 887758605325

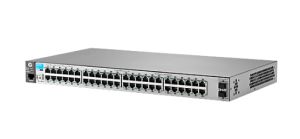

HP 2530-48G-2SFP+ Switch (J9855A)
Overview
The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0. The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.
Features
Cost-Effective, Reliable and Secure Access Layer Switches
The HP 2530 Switch Series provides secure, reliable and ease of use for enterprise edge, branch office, and SMB deployments.
Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0.
Right size deployment with choice of 8, 24, and 48 port models available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks.
Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Security and Quality of Service
The HP 2530 Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.
Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, and flexible traffic controls include ACLs and QoS.
Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).
Simple Deployment and Management
The HP 2530 Switch Series supports choice of management interface with Web GUI, command-line interface (CLI) and Simple Network Management Protocol (SNMP), using console or micro USB ports.
Quiet operation with fanless and variable speed fan models.
Flexible deployment with wall, table, and rack mounting options.
Single View of the Network
The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Specifications
Ports
-
- 48 RJ-45 autosensing 10/100/1000 ports
- 2 SFP+ fixed 1000/10000 SFP+ ports
- Included
Memory and processor
ARM9E @ 800 MHz; 128 MB flash; packet buffer size: 3 MB dynamically allocated; 256 MB DDR3 DIMM
Latency
-
- 100 Mb Latency: < 7.3 s
- 1000 Mb Latency: < 2.7 s
- 10 Gb/s Latency: < 4.0 s
Throughput
101 Mpps
Switching capacity
136 Gb/s
Stacking capabilities
-
Management features
-
- IMC - Intelligent Management Center
- command-line interface
- Web browser
- configuration menu
- out-of-band management (serial RS-232C or Micro USB)
- IEEE 802.3 Ethernet MIB
- Repeater MIB
- Ethernet Interface MIB
Power and operating requirements
Power consumption
55.1 W (maximum)
Input voltage
100 - 127 / 200 - 240 VAC
Operating temperature range
0 to 45C
Operating humidity range
15 to 95% @ 104F (40C) (noncondensing)
Heat dissipation
189 BTU/hr (199.4 kJ/hr)
Dimensions and weight
Minimum dimensions (W x D x H)
44.3 x 25.4 x 4.45 cm
Weight
3.08 kg
What's included
Differentiator
The HP 2530-48G-2SFP+ Switch is a fully managed layer 2 switch with 48 10/100/1000 ports and 2 SFP+ slots.
What's in the box
-
- (1) HP 2530-48G-2SFP+ Switch
Warranty
Lifetime, advance replacement, next business day, phone support, software releases
