All stock codes associated to this product
ArcherD9, Archer D9, TPLTDARCHERD9, TPL-TD-ARCHER-D9, 6935364071585
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
Archer D9
Highlights:
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections provide a premium wireless experience
- Beamforming technology delivers a more targeted and highly efficient wireless connection
- 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
- USB 3.0 and USB 2.0 - Share a printer locally and files & media with networked devices or remotely via FTP server
Overview
What This Product Does
TP-LINKs Archer D9 AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router is a combined wired/wireless network connection device with integrated wireless router and ADSL modem, reducing hassle of configuration and saving space.Featuring a variety of features and rich functionality, Archer D9 is the perfect hub of your home or office network.

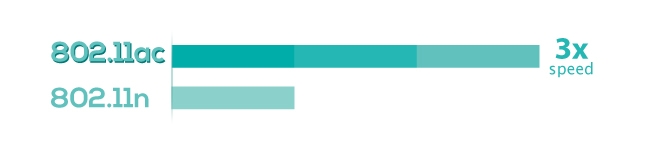

802.11ac - The Next Generation of Wi-Fi
TP-LINKs Archer D9 comes with the next generation Wi-Fi standard 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.

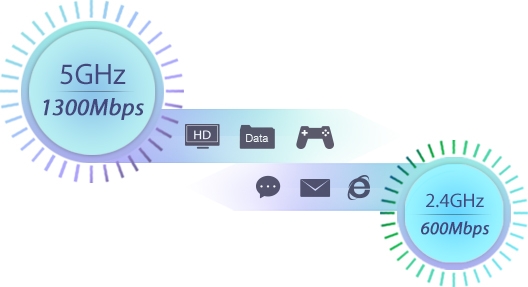

1.9Gbps Concurrent Dual Band - More Bandwidth, Less Interference
With 1.3Gbps wireless speeds over the crystal clear 5GHz band and 600Mbps over the 2.4GHz band, Archer D9 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time.
3 External Antennas and High Power Amplifiers - Fully Expanded Coverage
With 3 detachable dual band external antennas combined with higher quality antenna technology, you can experience excellent wireless performance with high speed and stability. Furthermore, its high power amplifiers provide stronger signals in every direction with better coverage. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.

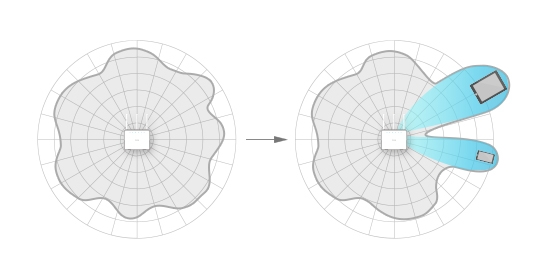

Beamforming Technology - More Targeted Wi-Fi Connection
Archer D9's Beamforming technology locate your connected devices and boost wireless signal strength in those directions, delivering a more targeted and highly efficient wireless connection.
Powerful Processor and Shielded Cover - More Stable Performance
Powerful 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks, fulfilling the potential of Archer D9’s Wi-Fi speed. And equipping the shielded cover on the internal component and Ethernet ports, Archer D9 reduces signal interference for reliable wired or wireless connections.

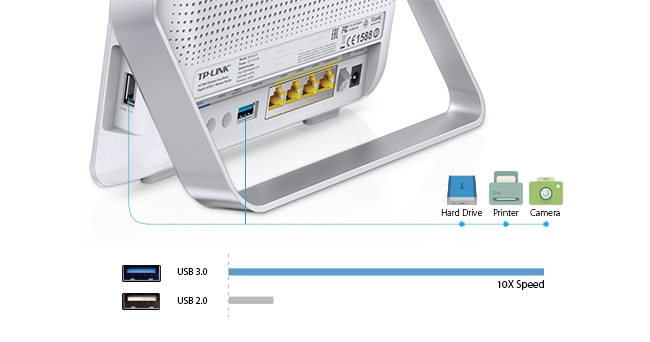

USB 3.0 and USB 2.0 Ports - Easier Sharing
With one ultrafast USB 3.0 port and one USB 2.0 port, you can easily access and share a printer locally and files & media with networked devices or remotely via the router’s FTP server. The USB 3.0 port provides up to 10x faster USB hard drive access than legacy USB 2.0 connections.

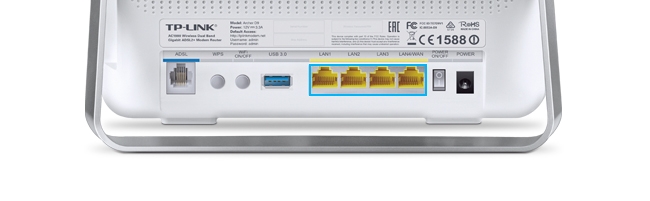

Full Gigabit Ports - Ultrafast Data Transfer Speeds
With one Gigabit LAN/WAN port and 3 Gigabit LAN ports, the Archer D9 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.
Interchangeable LAN/WAN Port - Versatile Connectivity
The Archer D9 supports ADSL or Ethernet WAN connections (EWAN), which allows users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
Easy Setup
Included in the resource CD, TP-LINK's optimized configuration utility can help you complete the entire software installation and wireless network settings in just a few minutes. It’s worth mentioning that with built-in intelligent auto-detection, Archer D9 is capable of automatically figuring out which connection type to use in a flash, saving you the trouble of searching for your connection information type and speeding up the setup process.
Features
Wireless and Wired Performance
- Powerful 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
- Supports 802.11ac - The next generation of Wi-Fi, compatible with 802.11n
- Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth
- 3 dual band detachable external antennas and high power amplifiers provide stable signals and optimal wireless coverage
- Beamforming technology brings a more targeted and highly efficient Wi-Fi connection
- USB 3.0 and USB 2.0 - Share a printer locally and files & media with networked devices or remotely via FTP server
- Full shielded Gigabit ports ensure ultrafast data transfer speeds
- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting VDSL, cable or fiber modems
Control and Security
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Parental Controls allow parents or administrators to establish restricted access policies for children or staff
- IP-based Bandwidth Control makes it easier for you to manage the bandwidth of devices connected to the router
- SPI and NAT firewall protects end-user devices from potential attacks from the Internet
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
Ease of Use
- Easy one-touch WPA wireless security encryption with the WPS button
- Wi-Fi On/Off Button allows users to turn their wireless radio on or off
- Easy Setup Assistant with multi-language support provides a quick & hassle free installation process
- Built-in intelligent auto-detection automatically figures out which connection type to use in a flash
Others
- IPv6 supported, meeting the demands for the next generation of the Internet
Specifications
| HARDWARE FEATURES |
| Interface |
1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 3.0 Port / 1 USB 2.0 Port |
| Button |
1 Power On/Off Switch
1 Wi-Fi On/Off Button
1 WPS Button
1 RESET Button |
| External Power Supply |
12VDC/3.3A |
| IEEE Standards |
IEEE 802.3, 802.3u, 802.3ab |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions ( W x D x H ) |
8.7 x 3.4 x 6.6 in. (221 x 86 x 168.5mm) |
| Antenna Type |
Three detachable dual band external antennas |
| Antenna Gain |
3 2dBi for 2.4GHz and 3 3dBi for 5GHz |
| WIRELESS FEATURES |
| Frequency |
2.4GHz and 5GHz |
| EIRP |
<20dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering |
| Wireless Schedule |
Support 2.4GHz and 5GHz Wireless Schedule |
| SOFTWARE FEATURES |
| Operating Modes |
ADSL Modem Router, Wireless Router |
| DHCP |
Server, Client, DHCP Client List,
Address Reservation, DHCP relay |
| Quality of Service |
ATM QoS, Traffic Control(IP QoS) |
| Port Forwarding |
Virtual server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
MER\IPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC Up to 8 PVCs |
| Security |
NAT Firewall, Access Control, MAC / IP / URL Filtering,
Denial of Service (DoS), SYN Flooding, Ping of Death
IP and MAC Address Binding |
| Advanced Functions |
Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Management |
Web Based Configuration(HTTP), Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Guest Network |
2.4GHz guest network 1
5GHz guest network 1 |
| IPSec VPN |
Supports up to 10 IPSec VPN tunnels |
| IPv6 |
IPv6 and IPv4 dual stack |
| OTHERS |
| Certification |
CE, FCC, RCM, RoHS |
| Package Contents |
AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter |
| System Requirements |
Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
