All stock codes associated to this product
C8S55A, 2493482, 887758446607
MSA Storage

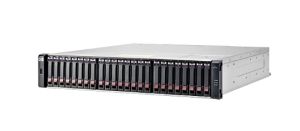

HP MSA 2040 SAS Dual Controller SFF Storage (C8S55A)
Overview
Changing storage needs for server customers now requires greater levels of performance and functionality at a lower cost of ownership. The next generation HP MSA 2040 Storage arrays raises the bar & uniquely addresses HP ProLiant customers' shared storage and data protection needs, reduces TCO while dramatically increasing performance using technologies such as Solid State Drives, Snap and Volume copy, Replication and SEDs. The MSA 2040 Storage arrays are positioned to provide an excellent value for customers needing increasing performance to support initiatives such as consolidation and virtualization.
The MSA 2040 delivers this performance by leveraging new controller architecture with a new processor, four ports with 4GB cache per controller and using drive technologies such as SSDs. The MSA 2040 Storage ships standard with 64 Snapshots and Volume Copy enabled for increased data protection and allow replication with optional Remote Snap software between arrays (FC or iSCSI only).
Features
Simple: Flexible Architecture. Easy to Setup. Easy to Manage
Choice of 8Gb/16Gb FC, 1Gb/10GbE iSCSI and 12Gb SAS to match the configuration needs of infrastructure.
Deploy single or dual controllers depending on high-availability and budgetary requirements.
Select disk enclosures with Large or Small Form Factor drives choice of High-performance Solid State Drives, Enterprise-class SAS or SAS Midline drives or Self-Encrypting Drives (SED) based on application, performance and budget needs.
The integrated setup and management tools for MSA are easy to manage for ProLiant/BladeSystems IT managers.
Fast: The MSA 2040 Sets New Standards for $/IOPS in Entry SAN, 3x to 4x Todays Competition
New high-performance Converged SAN controller and SAS controller offer 4X the performance of today's other entry-level SAN arrays.
4-port Converged SAN controller supporting Fibre Channel and iSCSI and a SAS Controller with 4GB Cache translating into better application response time and ability to support more virtualized environments.
SSD support with integrated wear gauge helps improves application performance and allows customers to reduce their operating costs by reducing foot prints and power consumptions.
Self-Encrypting Drives (SEDs) designed to safeguard critical personal and business information and to comply with regulatory mandates.
Futureproof: 2x the Bandwidth and the First Entry SAN with 16Gb FC
Choice of 8Gb/16Gb FC, 1Gb/10GbE iSCSI and 12Gb SAS to match the configuration needs of infrastructure.
The 4th generation of MSAs unique Data-in-Place upgrades provides investment protection.
Host ports upgradeable by SFPS (8Gb/16Gb FC) or (1GB/10GBE iSCSI) allows customers to manage their total cost of ownership lower.
Specifications
Specifications
Capacity
-
Drive description
-
- (24) SFF SAS/MDL SAS/SSD
- Supported
Drive type
-
- 146 GB 6G 15K SFF Dual-port SAS
- 300 GB 6G 15K SFF Dual-port SAS
- 300 GB 6G 10K SFF Dual-port SAS
- 600 GB 6G 10K SFF Dual-port SAS
- 900 GB 6G 10K SFF Dual-port SAS
- 1 TB 6G 7.2K SFF Dual-port MDL SAS
- 200 GB Solid State Drive
- 400 GB Solid State Drive
- 800 GB Solid State Drive
- 900 GB 6G 10K SFF Dual-port ENT Encrypted SAS
- Supported
Host interface
-
- 12Gb/sec SAS (4) Ports per controller
- Included
Storage controller
(2) MSA2040 SAS Controller; Included
Storage expansion options
-
- HP MSA 2040 LFF Disk Enclosure or D2700 2.5-inch disk enclosure
Form factor
2U
Dimensions and weight
Minimum dimensions (W x D x H)
73.6x66x28 cm
Weight
26.1 Kg
What's included
Differentiator
Pre-Config array with (2) MSA 2040 SAS Controllers in a Small Form Factor (SFF) Chassis - 24 drive bay Chassis
Warranty - year(s) (parts/labor/onsite)
3/0/0
What's in the box
-
-
- MSA 2040 SFF Chassis with (2) MSA 2040 SAS Controllers
