All stock codes associated to this product
WND93010000S, WND930-10000S, 3639508, 606449103014

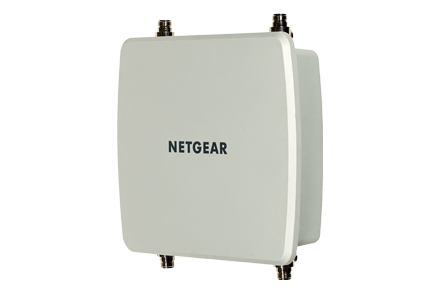

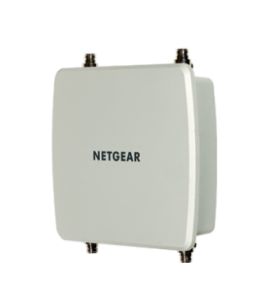

WND930 Outdoor Dual Band Wireless-N
High Power Dual Band Concurrent Access Point
Maximizes wireless coverage with superior outdoor access
Extends wireless coverage to outdoor with the high power WND930 Access Point. The WND930 Access Point combines industrial and robust design with flexible antenna options, and dual band (2.4 and 5 GHz) concurrent operation for optimal outdoor deployment. The WND930 Outdoor Access Point is powered by redundant dual Power over Ethernet (PoE) gigabit ports as well as the capability to power other PoE devices. The WND930 Outdoor Access Point operates under harsh environment with its industrial grade IP67 enclosure and an embedded heater to allow the Access Point to operate in below freezing point temperature. Through its user friendly interface and mounting accessory kits, the WND930 Access Point can be configured and installed easily in less than 10 minutes.
Features
High powered for maximum coverage with ultra-reliability
- 500 mW output power with additional high gain internal antenna to deliver extended coverage
- Dual band concurrent operation (2.4 and 5 GHz) for maximum flexibility
- NETGEAR reliable 2 year product warranty
Hardened enclosure for harsh outdoor environment
- IP-67 water and dust proof industrial grade enclosure ensure deployment in extreme weather conditions
- Embedded heater automatically activate to enable operation in below freezing temperature
- Included wall, pole, and ceiling mounts to facilitate flexible deployment options
Ideal for both Hotspot WiFi access and point-to-point mesh links
- Internal high gain narrow beam sectorized antenna for high performance point to point connectivity over long distrance
- External antenna connectors with optional external omni antennas to provide hostpot WiFi access on both 2.4 and 5 GHz bands
- Simple to deploy and easy to set up with intuitive user interfaces
Simple connectivity and ease of set up
- Dual redundant Gigabit Power over Ethernet for simple connectivity
- Powered external PoE devices such as surveillance cameras to maximize use applications
- Comprehensive wireless security and sophisticated quality of services
Power
- Power over Ethernet (802.3af or 802.3at)
- 2 ports 802.3af or 1 port of 802.3at for AP operation
- 2 ports of 802.3at for concurrent AP and PoE PSE operations
Physical Dimensions
- Dimensions (LxWxH) 255x225x78 mm 10x10x3 in
Mounting
- Wall mount/pole mount kit included
Interfaces and Indicators
Physical Interfaces
- Two (10/100/1000Base-T Ethernet (RJ-45) port with Auto UplinkTM (Auto MDI-X) with PoE PD (Power over Ethernet In)
- One (10/100/1000Base-T Ethernet (RJ-45) port with Auto UplinkTM (Auto MDI-X) with PoE PSE (Power over Ethernet Out)
External Antenna Connectors
- Two connectors for 2.4GHz antennas Type N connector (female)
- Two connectors for 5 GHz antennas Type N connector (female)
LEDs
- Power, Activity, 2.4GHz, 5 GHz, Heater
Storage Temperature
- -40 to 176 F (-40 to 80 C)
Operating Relative Humidity
MTBF
- @ 25C > 10,45K hours
- @ 60C > 290,000 hours
Ingress Protection Marking
Power Consumption
- 15.2 W max (heater off, no PoE out)
- 25.1 W max (heater on, no PoE out)
- 33.9 W max (heater off, PoE out)
- 43.8 W max (heater on, PoE out)
Standards
- IEEE 802.11n 2.0 specification
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11a
Frequency Band
- 2.4GHz and 5 GHz dual band concurrent operation
Maximum RF Power Output (country dependent)
- 27 dBm (500 mW) 2.4GHz
- 26 dBm (400 mW) 5 GHz
Maximum Theoretical Throughput
- 300 Mbps (2.4GHz)
- 300 Mbps (5 GHz)
Antenna Gain
- 8 dBi (2.4GHz)
- 8 dBi (5 GHz)
Network Management
- Standalone
- Centralized management (future)
Advanced Wireless Modes
- WDS Point-to-point wireless bridge mode
- Wireless Access point mode
Security
- Wired Equivalent Privacy (WEP) Encryption
- WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
- MAC address filtering
- 1 BSSID
802.11e WMM
- Wireless multimedia mode for QoS
Package Contents
- Outdoor High Power Wireless N Access Point
- Wall mounting bracket
- Pole mount clamps
- Weatherproof cable glands
- Installation guide
- Warranty/support information card
Optional Support
- PMB0351: 5 years OnCall 24x7
- PMB0331: 3 years OnCall 24x7
- PMB0311: 1 year OnCall 24x7
- PRR0351: 5 years XPressHW
- PRR0331: 3 years XPressHW
Product Ordering Information
- WND930-10000S High Power Dual Band Outdoor 802.11n Wireless Access Point
- WND930-100NAS High Power Dual Band Outdoor 802.11n Wireless Access Point (US)
- ANT24501B-10000S External antenna bundles (2 x 2.4GHz and 2 x 5 GHz)
