Premier Pro SP900 M.2 2280 Solid State Drive

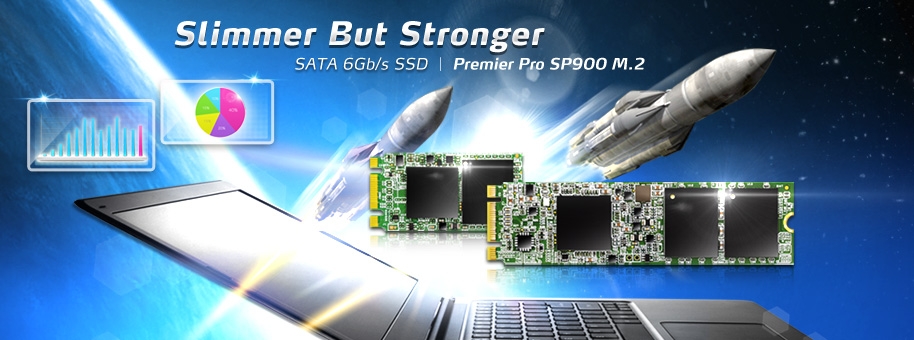

Slimmer But Stronger
Description
The Premier Pro SP900 M.2 2242 and 2280 SATA 6Gb/s SSDs are built for PC development of the next generation – “faster and smaller”. The SP900 M.2 2242 and 2280 are even smaller than a 2.5” SSD and mSATA, but come with 128/256/512GB in capacity. Both of the two models are suitable for ultrabooks, and the 2280 can also be applied on motherboards. Thanks to the support of Intel® Smart Response Technology, the SP900 M.2 2242 and 2280 provide sequential read/write speeds up to 550/530 MB/s for excellent performance. Additionally, with the support of DVESLP (Device Sleep) technology, the SP900 M.2 2242 and 2280 consumes less power for longer battery life.
Great Compatibility Meets Your Needs

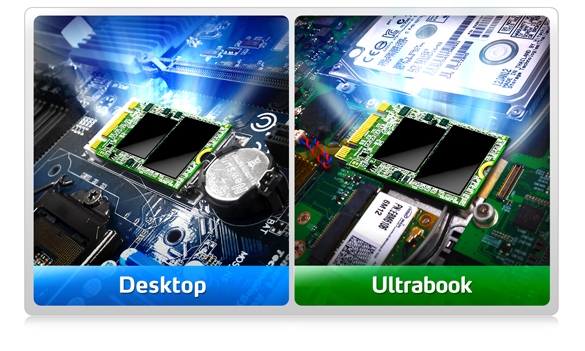

The SP900 M.2 2242 and 2280 are the smallest SSD form factors in the market, with measurements of only 22 x 42 x 3.5mm (2242) and 22 x 80 x 3.5mm (2280). It is the best solution to upgrade ultrabooks or slim laptops, and the SP900 M.2 2280 also supports motherboards of the next generation.
For more detailed information on compatible hardware, refer to the website of the relevant notebook and motherboard manufacturers.
Supports Intel® Smart Response Technology

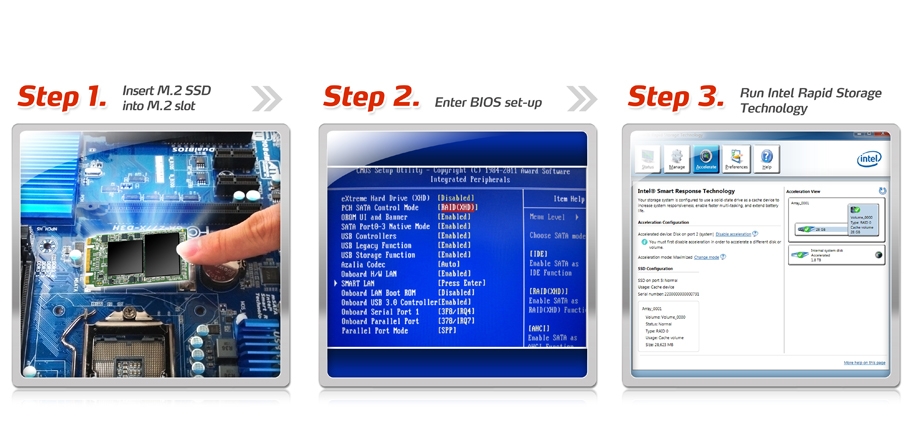

Intel Smart Response Technology (ISRT) is a caching mechanism, which allows a SATA Solid-State Drive (SSD) to function as cache for a mechanical hard disk drive. Setting up the Premier Pro SP900 M.2 2242 and 2280 with ISRT is convenient and quick.
Lower Power Consumption, Longer Battery Life
The Premier Pro SP900 M.2 2242 and 2280 support DVESLP (Device Sleep) technology for energy efficiency – it not only reduces the electricity cost, also prolongs the battery life.
Specifications
| Capacity |
128GB/256GB/512GB |
| Form Factor |
M.2 2280 |
| NAND Flash |
Synchronous MLC |
| Controller |
LSI SF-2281 |
| Dimensions (L x W x H) |
22 x 80 x 3.5mm |
| Weight |
8g (0.28oz) |
| Interface |
SATA 6Gb/sec |
| Performance(Max) |
128GB Performance (ATTO)
Read : Up to 550MB/s
Write : Up to 530MB/s
Maximum 4K Random write IOPS up to 85K
256GB Performance (ATTO)
Read : Up to 550MB/s
Write : Up to 530MB/s
Maximum 4K Random write IOPS up to 86K
512GB Performance (ATTO)
Read : Up to 550MB/s
Write : Up to 530MB/s
Maximum 4K Random write IOPS up to 86K |
| Operating temperature |
0~70 C / -40~85C |
| Storage temperature |
5 ~ 95% RH (0 ~ 55C) |
| Shock resistance |
1500G / 0.5ms |
| MTBF |
1,200,000 hours |
