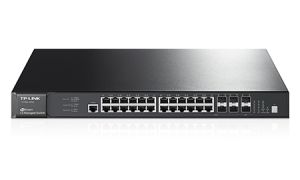

JetStream 28-Port Gigabit Stackable L3 Managed Switch
T3700G-28TQ
Highlights:
- Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
- True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
- Removable power unit and redundant power supply functionality minimizes downtime
- PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments
Overview
What This Product Does
TP-LINKs T3700G-28TQ is an L3 managed switch designed to build a highly accessible, scalable, and robust network. The switch is equipped with 24 Gigabit RJ-45 ports, 4 Combo Gigabit SFP and up to 4 10Gbps SFP slots, giving network administrator great network flexibility. It supports abundant Layer 3 routing protocols such as RIP and OSPF which are a critical part in the creation of fully resilient scalable networks. Whats more, with physical stacking feature and optional redundant external power unit, T3700G-28TQ provides a robust network with efficient redundancy. T3700G-28TQ provides robust security to help secure your enterprise network.
TP-LINKs T3700G-28TQ L3 managed switch provides a reliable and cost-effective solution for enterprise, campus and ISP networks.
Features
L3 Routing and Service Features
- Wire-speed IP forwarding
- Static Routing
- RIP v1, v2
- OSPF v2
- ECMP
- PIM-SM/PIM-DM/IGMP
- DHCP Server/Relay
- ARP Proxy
- VRRP
Physical Stacking
- Up to 8 Units Physical Stacking
- Up to 192 GE, 32 Gigabit combo SFP and 16 10G SFP+
- Up to 320Gbps Backplane bandwidth
- Ring Stacking for Link Redundancy
- Distributed Link Aggregation
Power Supply
- Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
- Optional external redundant power supply: RPS150 (Maximum Output Power: 150W)
Layer 2 Features
- Link Aggregation Control Protocol (LACP)
- 4K VLAN
- IEEE 802.1q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP
Quality of Service
- 8 priority queues
- Supports IEEE 802.1P
- DSCP QoS
- Rate limit
- Voice VLAN
Security Strategies
- IP-MAC-Port-VID Binding
- Access Control List (L2~L4 ACL)
- 802.1x and RADIUS Authentication
- Supports DoS defence
- Port Security
- SSL and SSH encryptions
Management
- Web-based GUI
- Command Line Interface
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
- IP Clustering
- Dual Image
Specifications
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface |
24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 combo gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
1 Console Port |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR |
| Dimensions (W X D X H) |
17.32*13*1.73 in.(440*330*44 mm) |
| Fan Quantity |
4 |
| Power Supply |
100~240VAC, 50/60Hz |
| PHYSICAL STACKING |
| Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables |
TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M |
| Max Number of Stacking Ports Installable |
2 SFP+ |
| No. of Units Per Stack |
8 |
| Stacking Speed (Per Port) |
20 Gbps (Full-Duplex) |
| PERFORMANCE |
| Switching Capacity |
Up to 128Gbps for a standalone switch |
| Bandwidth/Backplane |
Up to 320Gbps when 8 units in the stack |
| MAC Address Table |
32K |
| Packet Buffer Memory |
16 Mbits |
| Packet Forwarding Rate |
Up to 95.2Mpps for a standalone switch |
| Jumbo Frame |
10240 Bytes |
| Number of IP Interfaces |
128 |
| Number of Routes |
12K |
| Number of Static Routes |
256 |
| SOFTWARE FEATURES |
| L3 Features |
Wire-speed IP forwarding
Static Routing
RIP v1, v2
OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
DHCP Server/Relay
ARP Proxy
VRRP |
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
| L2 Features |
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP |
| Access Control List |
L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
| Security |
IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
| Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
