Micron 128GB 2.5" Solid State Disk, MLC, SATA-III (MTFDDAK128MBF-1AN12ABYY) M600 Series
  • Read 560MB/s, Write 510MB/s

IMG 1 of 0
No Longer Available
Part Number:
380779
(?) Brand:
Micron
Manuf No:
MTFDDAK128MBF-1AN12ABYY
MTFDDAK128MBF1AN12ABYY
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MTFDDAK128MBF1AN12ABYY, MTFDDAK128MBF-1AN12ABYY, LX20150, HBCM600D1-128
Micron M600 128GB SATA 6Gbps 2.5" SSD

Read up to 560MB/s, Write up to 510MB/s 128GB Micron M600 SATA 6Gbps 2.5" 7mm (with 9.5mm adapter) SSD, Read 560MB/s Write 510MB/s.

4KB Random Read: 100K IOPS
4KB Random Write: 88K IOPS

Features


Micron  16nm MLC NAND Flash

RoHS-compliant package

SATA 6 Gb/s interface

TCG/Opal 2.0-compliant self-encrypting drive (SED)

Compatible with Microsoft eDrive

Hardware-based AES-256 encryption engine

ATA modes supported

PIO mode 3, 4

Multiword DMA mode 0, 1, 2

Ultra DMA mode 0, 1, 2, 3, 4, 5, 6

Industry-standard, 512-byte sector size support

Hot-plug/hot-remove capable

Device sleep (DEVSLP), extreme low-power mode

Native command queuing support with 32-command slot support

ATA-8 ACS3 command set compliant

ATA security feature command set and password login support

Secure erase (data page) command set: fast and secure erase

Sanitize device feature set support

Self-monitoring, analysis, and reporting technology (SMART) command set

Dynamic write acceleration

Adaptive thermal monitoring

Power loss protection for data-at-rest

Performance ,

PCMark  Vantage (HDD test suite score): Up to 87,000

Sequential 128KB READ: Up to 560 MB/s

Sequential 128KB WRITE: Up to 510 MB/s

Random 4KB READ: Up to 100,000 IOPS

Random 4KB WRITE: Up to 88,000 IOPS

READ/WRITE latency: 120s/30s (TYP)

Reliability

MTTF: 1.5 million device hours

Static and dynamic wear leveling

Uncorrectable bit error rate (UBER): <1 sector per 1015 bits read


Low power consumption
150mW TYP4
Endurance: Total bytes written (TBW)
Up to 400TB
Capacity (unformatted): 128GB, 256GB, 512GB, 1024GB
Mechanical
SATA connector: 5V 10%
2.5-inch drive: 100.45mm x 69.85mm x 7.0mm
Weight: 65g (MAX)
Secure firmware update with digitally signed firmware image
Operating temperature
Commercial (0C to +70C)5

Notes

  1. Typical I/O performance numbers as measured fresh-out-of-the-box (FOB) using Iometer with a queue depth of 32 and write cache enabled.
  2. 4KB transfers used for READ/WRITE latency values.
  3. The product achieves a mean time to failure (MTTF) based on population statistics not relevant to individual units.
  4. Active average power measured during execution of MobileMark  with DIPM (device-initiated power management) enabled.
  5. Temperature measured by SMART attribute 194.
Warranty: Contact your Micron sales representative for further information regarding the product,
including product warranties.

Part Numbering Information

Microns M600 SSD is available in different configurations and densities. The chart below is a comprehensive list of options for the M600 series devices; not all options listed can be combined to define an offered product. Visit www.micron.com for a list of valid part numbers.

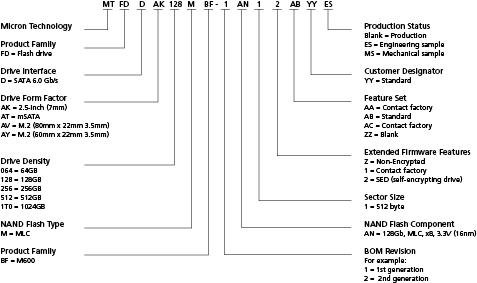

Figure 1. Part Number Chart


Products and specifications discussed herein are subject to change by Micron without notice. This data sheet contains minimum and maximum limits specified over the power supply and temperature range set forth herein. Although considered final, these specifications are subject to change, as further product development and data characterization sometimes occur.

General Description

Microns solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and 8-channels of Micron NAND Flash internally. Packaged in an HDD replacement enclosure, the SSD integrates easily in existing storage infrastructures.

The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.

The self-encypting drive (SED) features a FIPS-compliant, AES-256 encryption engine, providing hardware-based, secure data encryption, with no loss of SSD performance. This SED follows the TCG/Opal specification for trusted peripherals.

When TCG/Opal features are not enabled, the device can perform alternate data encryption by invoking the ATA security command-set encryption features, to provide full-disk encryption (FDE) managed in the host system BIOS. TCG/Opal and ATA security feature sets cannot be enabled simultaneously.

The data encryption is always running; however, encryption keys are not managed and the data is not secure until either TCG/Opal or ATA security feature sets are enabled.





Figure 1. Functional Block Diagram


Products and specifications discussed herein are subject to change by Micron without notice. This data sheet contains minimum and maximum limits specified over the power supply and temperature range set forth herein. Although considered final, these specifications are subject to change, as further product development and data characterization sometimes occur.
