Dell N2024 Gigabit Switch - 24-Port 10/100/1000, L2, Rackmountable

IMG 1 of 0
No Longer Available
Part Number:
388378
(?) Brand:
Dell
Manuf No:
X4C5N2024AU
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
X4C5N2024AU, 2843980
DELL NETWORKING N2024 L2 SWICH, 24 X 10

Dell Networking N2000 – 1GbE Layer 2 Switch

Upgrade your network

N-Series is a family of energy-efficient and cost-effective 1GbE and 10GbE switches designed for modernizing and scaling network infrastructure. The Dell Networking N2000 Series offers enhanced, high-availability Layer 2 Ethernet switches with basic Layer 3 routing functionality (Layer 2+) that:
  • Use MLAG for multipath loop-free redundancy without spanning tree to enable full-bandwidth utilization and high availability
  • Promote greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+)1 and devices using Cisco Discovery Protocol (CDP)
  • Offer a more flexible choice in your network by uniting products with the latest open standard protocols
  • Feature Layer 3 IPv4 and IPv6 functionality, including static routing and Routing Information Protocol (RIP version 1 & 2) support for up to 256 interfaces

Deliver clean power to network devices with PoE+ support

The Dell Networking N2000 Series has options for up to 48 ports of Power-over-Ethernet Plus (PoE+). This allows you to attach devices with high power requirements (up to 30.8 watts) without running a separate power cable. PoE+ is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.

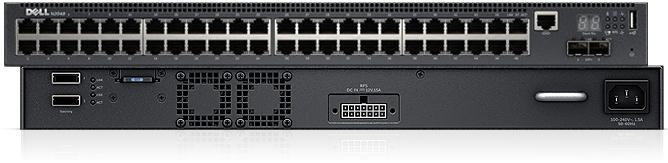

Dell Networking N2000 1GbE Layer 2 Switch

Designed for efficiency

Built to help keep operating costs down, the N2000 Series can operate at temperatures up to113F (45C) to help reduce cooling costs. Features designed to improve overall efficiency include:
  • 80PLUS-certified efficient integrated power supply
  • Redundant variable-speed cooling fans
  • Energy-Efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links

Advanced feature set to simplify management

The Dell Networking N2000 Series is designed for easy deployment, outstanding interoperability and a low learning curve for network administrators. A single OS release (Dell Networking OS 6) allows you to maintain consistent configurations across all N-Series products with a comprehensive feature set that includes:

  • One common command line interface (CLI) andgraphical user interface (GUI) that use a well-known command language to help skilled network administrators become productive quickly
  • USB auto-configuration that helps network administrators rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key
  • A variety of enterprise-class features with familiar and intuitive configuration and management commands
  • The latest open-standard protocols and smart integration technologies to help make smoothly operating multi-vendor networks possible

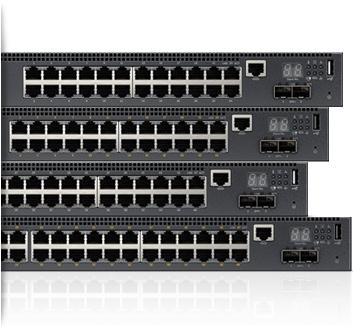

Dell Networking N2000 – 1GbE Layer 2 Switch

Deploy with confidence at any scale

With high throughput and capacity to handle unexpected workloads, the N2000 Series switches are ideal solutions for fast growing GbE networks that require high-density aggregation with seamless redundancy and availability.

  • Data rates up to 220Gbps (full duplex) and a forwarding rate of up to 164Mpps
  • Built-in stacking ports and standard N-Series stacking cables support a stacking architecture up to 12 units at 84Gbps
  • Switch stacks up to 600 1GbE ports can be managed from a single screen or IP address

Lifetime Warranty

Lifetime Warranty

Protect your investment with a Lifetime Limited Warranty2, which guarantees select Dell Networking products with Basic Hardware Service (repair or replacement) for as long as you own the product.

Dell ProSupport

Dell ProSupport

Choose Dells premium support service, ProSupport3, for 24/7 direct telephone and online access to advanced-level technicians based in your region. Whether you have one office or hundreds around the world, protect your investments with this simple yet flexible approach.

Dell Financial Services

Dell Financial Services


Are financial or operational barriers preventing you from acquiring the technology you need? Whether youre looking for payment flexibility to spread IT costs over several budget cycles or you need a scalable financial solution to accommodate your changing technology needs, Dell Financial Services has a wide range of contracting options designed to make technology acquisition easy and affordable. To learn how financing can help you maximize ROI and lower TCO, contact your Dell account manager or DFS representative.

Specifications


Standard Traffic-Port Attributes N2024 N2024P N2048 N2048P
Standard Port Attributes 24x 1GbE RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports 24x 1GbE RJ45 auto-sensing (1Gb/100Mb/10Mb) PoE+ fixed ports 48x 1GbE RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports 48x 1GbE RJ45 auto-sensing (1Gb/100Mb/10Mb) PoE+ fixed ports
Integrated 10GbE SFP+ dedicated ports (beyond standard ports) S S S S
Integrated GbE SFP combo ports N N N N
Integrated GbE 10/100/1000BASE-T RJ45 combo ports N N N N
Integrated 40GbE QSFP+ dedicated ports N N N N
Power-over-Ethernet Plus (PoE+) N Y N Y
Maximum PoE Watts per port N 30.8 watts on 24 ports N 30.8 watts on 48 ports
Modular Traffic-Port Attributes N2024 N2024P N2048 N2048P
Hot swappable expansion module bay N N N N
Module support for 10GbE N N N N
Module support for 40GbE N N N N
Support for 40GbE to 4x 10GbE breakout N N N N
Traffic-Port Features N2024 N2024P N2048 N2048P
Auto-negotiation for speed and flow control S S S S
Auto MDI/MDIX S S S S
Port mirroring S S S S
Flow-based port mirroring S S S S
Broadcast storm control S S S S
Energy Efficient Ethernet per port settings S S S S
Port Profile support including Admin profiles S S S S
Management- & Configuration-Port Attributes N2024 N2024P N2048 N2048P
1 RJ45 console/management port with RS232 signaling S S S S
1 Out-of-Band (OOB) Management Port (10/100/1000BASE-T) N N N N
1 USB (Type A) port for configuration S S S S
Stacking Attributes N2024 N2024P N2048 N2048P
Integrated rear mini-SAS stacking ports 2x 21Gbps 2x 21Gbps 2x 21Gbps 2x 21Gbps
User port stacking N N N N
Maximum stacking distance (meters) 3 3 3 3
Maximum stacking speed (full-duplex) 84Gbps 84Gbps 84Gbps 84Gbps
Switch Attributes N2024 N2024P N2048 N2048P
Switch Fabric Capacity (full duplex): 172Gbps 172Gbps 220Gbps 220Gbps
Forwarding Rate: 128Mpps 128Mpps 164Mpps 164Mpps
Line-rate Layer 2 switching S S S S
Line-rate Layer 3 routing S S S S
CPU Memory 1GB 1GB 1GB 1GB
Flash Memory 256MB 256MB 256MB 256MB
Packet Buffer Memory 4MB 4MB 4MB 4MB
Dual firmware images on-board S S S S
Temperature sensors for environmental monitoring S S S S
Cable diagnostics S S S S
Optical transceiver (SFP/SFP+) diagnostics S S S S
Switch auditing support S S S S
UDLD S S S S
Chassis N2024 N2024P N2048 N2048P
Dimensions in inches (H x W x D): 1.7 x 17.3 x 10.1 1.7 x 17.3 x 15.2 1.7 x 17.3 x 10.1 1.7 x 17.3 x 15.2
Dimensions in millimeters (H X W X D): 43.5 x 440.0 x 257.0 43.5 x 440.0 x 387.0 43.5 x 440.0 x 257.0 43.5 x 440.0 x 387.0
Rack Height: 1U 1U 1U 1U
Rack-mounting kit Y Y Y Y
ReadyRails rack mounting system, no tools required N N N N
Approximate Weight in pounds (without modules): 8.1351 14.0435 8.9287 14.9914
Approximate Weight in kilograms (without modules): 3.69 6.37 4.05 6.8
Power & Cooling Hardware N2024 N2024P N2048 N2048P
Internal hot swappable power supply bays N N N N
Hot swappable power supplies (included) N N N N
Integrated power supply (not removable) S S S S
External power supply OA OA OA OA
Power supply redundancy OA OA OA OA
Removable fans N N N N
Redundant fans S S S S
Variable speed fans S S S S
Air flow IO to PSU (Normal) IO to PSU (Normal) IO to PSU (Normal) IO to PSU (Normal)
Environmental Operating Conditions N2024 N2024P N2048 N2048P
Operating Temperature in Celsius 0 to 45 C 0 to 45 C 0 to 45 C 0 to 45 C
Operating Temperature in Fahrenheit 32 to 113 F 32 to 113 F 32 to 113 F 32 to 113 F
Storage Temperature in Celsius -40 to 65 C -40 to 65 C -40 to 65 C -40 to 65 C
Storage Temperature in Fahrenheit -40 to 149 F -40 to 149 F -40 to 149 F -40 to 149 F
Operating Relative Humidity 95% 95% 95% 95%
Storage Relative Humidity 85% 85% 85% 85%
Power Supply (Watts) 100 1000 100 1000
Max Thermal Output (BTU/hr) 117.44 3113.33 167.7 6069.80
Power Consumption Max (Watts) 42.9 913 53.9 1738
Power Supply Efficiency 80% or better in all operating modes 80% or better in all operating modes 80% or better in all operating modes 80% or better in all operating modes

Optional Features
Modules (optional) N2024 N2024P N2048 N2048P
2-port 10 Gigabit BASE-T RJ45 hot swappable uplink module N N N N
2-port 10 Gigabit SFP+ hot swappable uplink module N N N N
4-port 10 Gigabit BASE-T RJ45 hot swappable module N N N N
4-port 10 Gigabit SFP+ hot swappable module N N N N
2-port 40 Gigabit QSFP+ hot swappable module N N N N
Power Supplies (optional) N2024 N2024P N2048 N2048P
RPS720 External Power Supply for N2000 non-POE (720 watts) OA N OA N
MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts) N OA N OA
200w, hot swappable, with V-Lock, adds redundancy to non-PoE switches N N N N
715w, hot swappable, adds redundancy or to power all PoE+ ports fully N N N N
1100w, hot swappable, adds redundancy or to power all PoE+ ports fully N N N N
