Achieve the ultimate read/write performance to maximise your everyday computing experience with Samsungs TurboWrite technology. You not only obtain more than a 10% better user experience than 840 EVO* but up to 1.9x faster random write speeds for 120/250 GB models** as well. The 850EVO delivers the top of its class performance in sequential read (540 MB/s) and write (520 MB/s) speeds. Plus, you also gain optimised random performance in all QD for client PC usage scenario.
PCmark7 (250 GB ): 6,700 (840 EVO) > 7,600 (850 EVO)
Random Write (QD32,120 GB): 36,000 IOPS (840 EVO) > 88,000 IOPS (850 EVO)
Get into the fast lane with the improved RAPID mode
Samsung’s Magician software which provides Rapid Mode for 2x faster processing data speeds* on a system level by utilising unused PC memory (DRAM) as cache storage. The newest Magician increased the maximum memory usage in Rapid mode from 1 GB, in the previous 840 EVO version, to up to 4 GB with the 850 EVO when implementing 16 GB of DRAM. You also get a 2x performance* boost in all random Queue depth.
PCMARK7 RAW (250 GB): 7,500 > 15,000 (Rapid mode)
Guaranteed endurance and reliability bolstered by 3D V-NAND technology
The 850 EVO delivers guaranteed endurance and reliability by doubling the TBW* compared to the previous generation 840 EVO** backed by an industry leading 5 year warranty. The 850 EVO through minimised performance degradation allows sustained performance improvements of up to 30% over the 840 EVO proving to be one of the most dependable storage devices***.
TBW: Total Bytes Written
TBW: 43 (840 EVO) > 75 (850 EVO 120/250 GB),150 (850 EVO 500/1TB)
Sustained Performance (250 GB): 3,300 IOPS (840 EVO) > 6,500 IOPS (850 EVO), Performance measured after 12 hours Random Write test
Compute longer with improved energy efficiency backed by 3D V-NAND
The 850 EVO delivers significantly longer battery life on your notebook with a controller optimised for 3D V-NAND now enabling Device Sleep at a highly efficient 2mW. The 850 EVO is now 25% more power efficient to the 840 EVO during write operations* thanks to 3D V-NAND only consuming half the energy than that of Planar 2D NAND.
Power (250 GB): 3.2 Watt (840 EVO) > 2.4 Watt (850 EVO)
Secure valuable data through advanced AES 256 encryption
The 850 EVO comes fortified with the latest hardware-based full disk encryption engine. The AES 256 encryption-bit security technology secures data without any performance degradation and complies with TCG Opal 2.0. It is also compatible with Microsoft e-drive IEEE1667 so your data is protected at all times for your peace of mind.
Protect against overheating with a highly responsive Dynamic Thermal Guard
The 850 EVOs Dynamic Thermal Guard constantly monitors and maintains ideal temperatures for the drive to operate in optimal conditions for the integrity of your data. When temperatures rise above an optimal threshold, the Thermal Guard automatically throttles temperatures down protecting your data while maintaining responsiveness to ensure your computer is always safe from overheating.
Level up to the 850 EVO simply without any hassle
In three simple steps the Samsungs One-stop Install Navigator software easily allows you to migrate all the data and applications from the existing primary storage to the 850 EVO. The Samsung Magician software also allows you to optimise and manage your system best suited for your SSD.

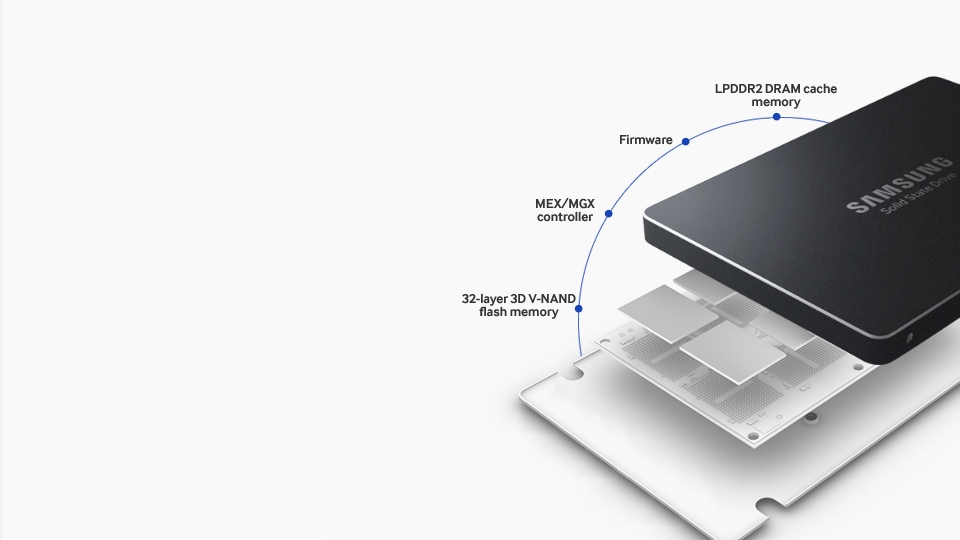

Acquire an integrated in-house solution consisting of top-quality components
Samsung is the only SSD brand to design and manufacture all its components in-house allowing complete optimised integration. The result enhanced performance, lower power consumption with an up to 1 GB LPDDR2 DRAM cache memory and improved energy-efficiency with the MEX/MGX controller.
tech specs
General Feature
-
-
Capacity
250 GB (1 GB=1 Billionbyte by IDEMA)
-
Form Factor
6.35 cm (2.5) Form Factor
-
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
-

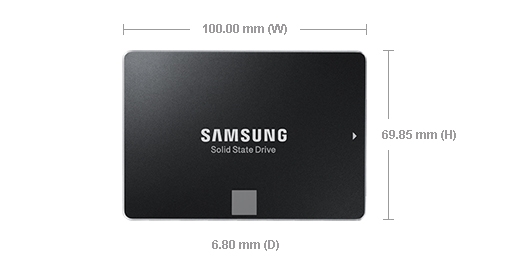

Dimension (WxHxD)
100.00 x 69.85 x 6.80 mm Dimension
-
-
Storage Memory
Samsung 32 layer 3D V-NAND
-
-
Cache Memory
Samsung 512 MB Low Power DDR3 SDRAM
Special Feature
-
-
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256 bit Encryption (Class 0) , TCG/Opal, IEEE1667 (Encrypted drive)
-
WWN Support
World Wide Name supported
-
Device Sleep Mode Support
Performance
-
Sequential Read
Up to 540 MB/sec Sequential Read
-
Sequential Write
Up to 520 MB/sec Sequential Write
-
Random Read (4KB, QD32)
Up to 97,000 IOPS Random Read
-
Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write
-
Random Read (4KB, QD1)
Up to 10,000 IOPS Random Read
-
Random Write (4KB, QD1)
Up to 40,000 IOPS Random Write
Environment
-
Average Power Consumption (system level)
Average: 2.4 Watts Maximum: 2.4 Watts (Burst mode) Actual power consumption may vary depending on system hardware & configuration
-
-
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 C Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
Software
-
Management SW
Magician Software for SSD management
Warranty
-
Warranty
5 Years Limited Warranty or 75 TBW Limited Warranty
