All stock codes associated to this product
S25M2CCWP
Sapphire WRITE-PROTECT 2.5" HDD/Flash Reader
Overview
This Sapphire WRITE PROTECT 2.5" HDD/Flash Reader is the first in the market that supports READ only function on the latest flash card such as M2, mSATA and CFast card. Equipped with an interface bridge that disables the WRITE function on the hardware level, This Sapphire Reader allows accessing data on any 2.5" SATA HDD/SSD, M2 card, mSATA card, CFast card or CF card without the risk of accidentally erasing or altering the existing content on the media. This unique feature ensures absolute protection against virus contamination or data tampering. It is a great tool for sharing the supported storage media containing important data among different users or for forensic application. This Reader essentially treats any hard drive or SSD as a READ only media, similar to CD or DVD disc.
With the build-in USB 3.0 interface, this Reader can be attached to practically any computer equipped with USB 2. 0 or USB 3.0 port. The USB 3.0 also ensure fast data access up to 5 Gbps when connecting to system equipped with USB 3.0 port. Integrated with a 2.5" Snap-In removable drive cartridge system, the 2.5" HDD/SSD can be easily added or removed from this Reader without any special tool. The included 2.5" flash drive adapter enables loading the four supported flash media into the Reader, just like a standard 2.5" drive.

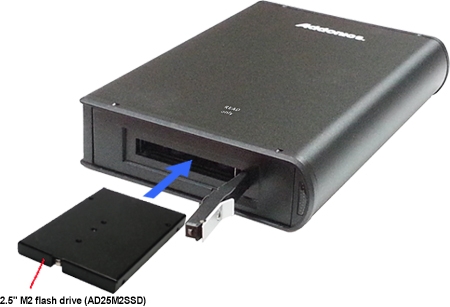

Installing 2.5" hard drive, M2, mSATA, CFast or CF card (a 2.5" M2 flash drive is used in the illustratuion)
The following adapters are included to access M2 card, mSATA SSD, CFast or CF card
|
M2 card in 2.5" M2 drive
kit (AD25M2SSD)
|
mSATA SSD in 2.5" mSATA
drive kit (AD25MSD)
|
CFast card in 2.5" CFast
drive kit (AD25CFASTD-N)
|
CF card in 2.5" CF drive kit
(AD25CFD-N)
|
Features
- First READER in the market that supports READ only function on M2, mSATA and CFast card
- Supports any 2.5" hard drives or SSD
- Supports M2 (NGFF) SSD, mSATA SSD, CFast or CF card using the included Addonics 2.5" Flash drive kit,
- Protect drive against virus contamination or data tempering
- WRITE disabled at hardware level. No software hacking to circumvent the WRITE PROTECT function
- No volatile memory
- Drive appears to OS as READ only device. Options to format, delete and other commands that alter the content, partition table or MBR of the drive are all disabled by the OS (see screen shots from the Windows 8.1 below)
- Drive can be added or removed like VHS cassette without any drive tray or special tool*
- Shock mounted drive bay to protect the 2.5" hard drive against shock and vibration, great for harsh industrial or mobile application
- Rugged anodized aluminum construction for rough handling, fast cooling and for easy transportation
- Connect to any system via USB 3.0 or USB 2.0 port
- Maximum data throughput: USB 3.0 - up to 5,000 mbps, USB 2.0 - 480 mbps
- Key lock to secure hard drive inside the enclosure
- Compact size for convenient transportation
- Rear mount 40 x 40 mm cooling fan
- LED for drive access and power
- Plug and play
- OS Compatibility: All Windows, Linux (Kernel 2.4 and above), Mac OS X and above
Bundled accessories: 2.5" M2 flash drive kit (AD25M2SSD), 2.5" mSATA flash drive kit (AD25MSD), 2.5" CFast drive kit (AD25CFASTD-N), 2.5" CF drive kit (AD25CFD-N). 110/240V AC/DC 12V power adapter (AAP12V3A-US)

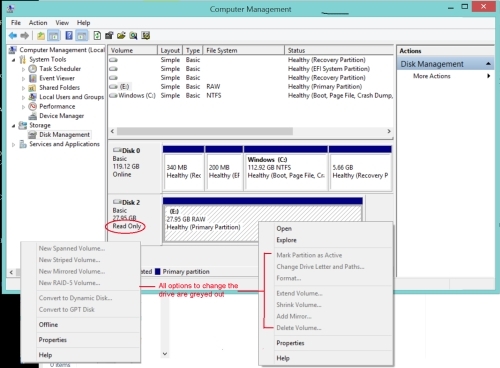

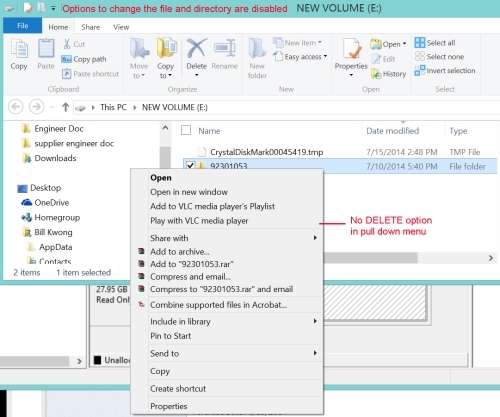

Sample of Windows 8 screen shots showing options to format, delete and others that alter the content or structure of the drive are all diabled by the OS
Specifications

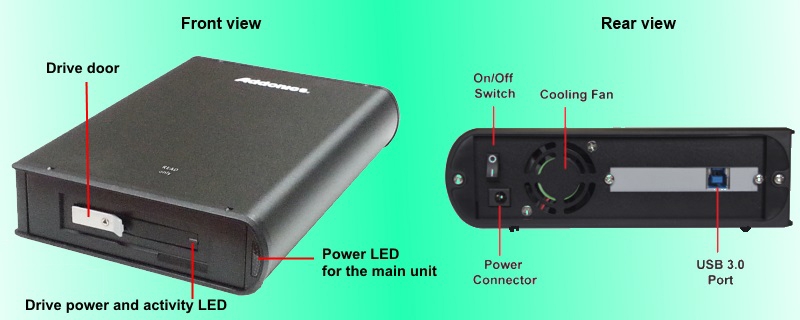

Front of enclosure
- One 2.5" Snap-In drive bay with shock mount
- Power and drive access LED
Rear of the enclosure
- USB 3.0 B female connector
- Power ON/OFF switch
- Power input jack
- 45 x 45 mm cooling fan
- Enclosure material: Brushed black anodized aluminum with plastic front bezel
- Power Adapter: 110/240V AC/DC 12V 3A
- Power consumption ~ 1 watt (not including drive)
- Dimensions (L x W x H): 9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm)
- Weight: ~ 2.45 lbs. (1.11 kg) without drive
- Operating temperature and humidity: 0C to +60C, 5% to 95% RH (non-condensing)
- Storage temperature and humidity: -30C to +70C, 5% to 90%
