All stock codes associated to this product
AESN4DA25N, AESN4DA25-N
2.5" Snap-In Disk Array
Overview

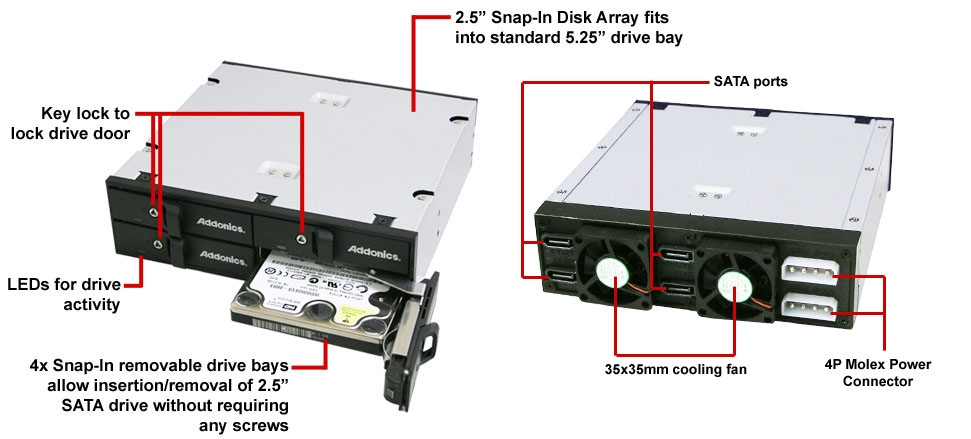

The new Addonics 2.5" Snap-In Disk Array is a high density removable hard drive system that supports installing up to four 2.5" SATA hard drives or SSDs into one standard 5.25" drive bay. This compact form factor makes this Disk Array an ideal solution for increasing hard drive storage in small computers, mini ATX systems or for applications that require large number of drives.
Installing hard drives into the 2.5" Snap-In Disk Array is similar to using a VHS cassette. Simply unlatch to open the door on each drive slot, slide in the hard drive and close the drive door to engage power and data connection. When the drive door is opened, the hard drive will automatically be ejected out of the drive slot. Designed to accommodates any 2.5" SATA hard drive or SSD with drive height up to 12.7 mm. Eeach drive slot is equipped with its own power and drive access LEDs as well as a lock on the drive door to secure each hard drive in the Disk Array unit.

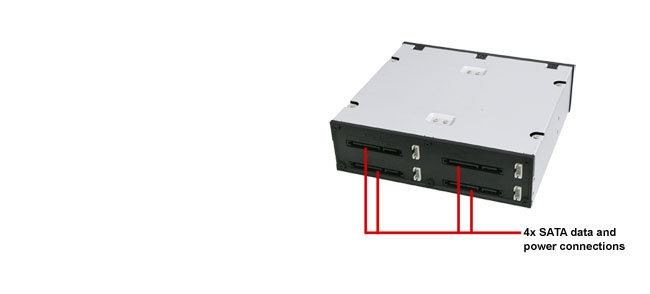

Model without cooling fan
(consuming less power and suitable forlow power storage devices suchas SSD)
| Examples of the 2.5" Snap-In Disk Array installed into different type of computer or storage chassis |
| In generic Desktop Tower |
In Z-Family Enclosure |
In Storage Tower V |
In Storage Rack |
In HDD Duplicators |
 |
 |
 |
 |
 |
Features
- Install as many as four 2.5" SATA hard drives or SSDs into a standard 5 1/4" drive bay
- Support SATA I / II / III or SSD with drive height up to 12.7 mm
- Drive is added and removed directly like VCR cassette without any special tool
- Choice of model
- With two cooling fans - for 2.5" HDD or SSD
- Without cooling fan - for SSD
- Point to point connection
- High throughput up to 600 MB/sec with SATA 3.0 drive
- Sturdy steel metal construction
- Hot swap support when connects to SATA port that supports this feature
- Four separate 7-pin SATA data connections and four 15-pin SATA power connections
- Power and drive activity LED for each drive slot
- OS independent
(1) Serial ATA hot swap feature works only with controllers basing on Silicon Image chip set from our in house testing. Other controllers that are not Silicon Image based may not support hot swap. You may consider adding one of the Addonics Serial ATA host controllers to your systems to ensure the hot swap capability. New controllers from Intel and other suppliers may finally support this feature. Please verify with your controller manufacturer if you need to have hot swap in your application. Hot swap is supported in Windows 2000 and XP only. On other OS, drive can be removed without crashing system. But replacing with a different drive can result in crashing the OS.
Specifications
|
Interface
|
SATA / /SAS
|
|
Construction material
|
Steel |
|
Hard Drive type
|
2.5" SATA I, SATA II or SATA III HDD/SSD |
|
Maximum Number of Drives
|
4 |
|
Maximum drive height
|
12.7 mm |
|
Cooling fans
|
Two 35 x 35 mm low noise cooling fans - for model AESN4DA25 only
no cooling fan on model AESN4DA25-N
|
|
Maximum Data Transfer Rate
|
6Gbps |
|
Power Connection
|
four 15-pin SATA power connectors |
|
Connections
|
four 7-pin SATA connectors
|
|
LED's
|
Power and drive Activity LEDs for each drive slot
|
|
Lock
|
key lock for each drive slot
|
|
Hard Drive Connection
|
Point to point, no cable required for installing hard drive
|
|
Weight (with no hard drive)
|
~1.46lb (662g)
|
|
Dimensions (L x W x H)
|
5.5 x 5.75 x 1.65 in.(140 x146 x 42 mm) |
|
Operating Temperature and Humidity:
|
5C - 60 C, 10% - 90% RH
|
|
Storage Temperature and Humidity:
|
-20C - 70 C, 5% - 95% RH non condensing
|
|
File Systems
|
File system Independent |
|
Warranty
|
One Year |
