Addonics MSDU11 1;11 mSATA/Micro SATA SSD Duplicator - LCD Display with Functional Control Panel, Two Low Noise High CFM Ball Bearing Cooling Fan, Up To 90MB/s, LEDs For Drive Access And Power

IMG 1 of 1
No Longer Available
Part Number:
390292
(?) Brand:
Addonics Web Site
Manuf No:
MSDU11
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
MSDU11
1:11 mSATA / micro SATA SSD duplicator (MSDU11)

Overview

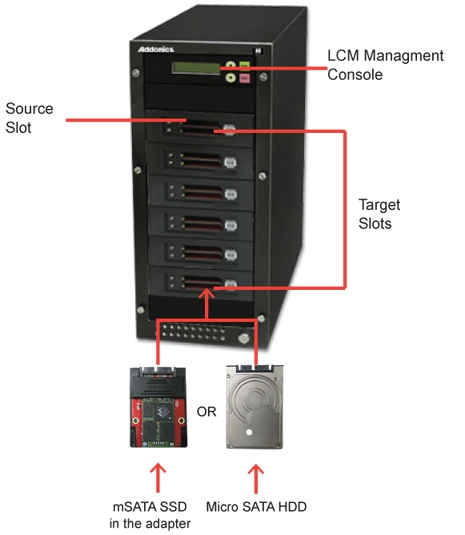

The Addonics mSATA and micro SATA SDD Duplicator is designed for making identical mulitple copies of micro SATA HDD/SSD or mSATA SSD from one media . You can mix and match these two types of SSDs into the duplicator, thus making it a handy tool for transferring the content between these two different types of media. The equipment can also be used as a CF or CFast card duplicator by using the optional micro SATA - CF and micro SATA - CFast adapters.

The duplicator works stand alone without any computer. It is easy to operate. There is no complicated software to run. Simply insert the source media into the source slot and the target media with equal or larger capacity into the destination slots, then push the copy button to start the copying process.

About this model

This 1:11 mSATA / micro SATA SSD Duplicator model allows you to copy from one source media onto as many as eleven (11) target media at one time. Source and target media can be either a mSATA SSD or a micro SATA HDD/SSD.


Features

  • Duplicate up to eleven (11) copies of micro SATA HDD/SSD or mSATA SSD
  • The supported media can be mixed in the target slots - great for transferring content from one type of media to different type of media
  • Media slot is designed for direct loading of Micro SATA hard drive or SSD
  • mSATA SSD into the media slot via micro SATA - mSATA adapter (model: ADMS18SA). Twelve adapters are included
  • Copy CFast or CF media with optional micro SATA adapters (ADCFASTMSorADMSCF)
  • Completely standalone operation with no computer or software required
  • Maximum copying speed up to 90 MB/sec. Actual speed depends on the performance of the media
  • Drive sanitization:
    • SECURE ERASE - HDD duplicator sends aWIPE command to the hard drive. This commandfills 00 string to entire HDD (this feature may not be supported by some mSATA SSD or flash media)
    • OVERWRITE - One pass, 3 passes and 7 passes 5220.22-M.The duplicator writes a string of pattern over the entire disk one time, three times or seven times.5220.22-Misthe DoD standard for drive sanitization
  • OS independent
  • LCM control module provides a rich set of robust advanced configuration options(clickFull LCD console feature listin this duplicator)
  • Green LED for both source and destination slots to indicate media access ( Supported only on media with drive access signal)

Components for the main unit

ST9HDU11SASMS2UDDSATwelve units of mSATA - micro SATA adapter (ADMS18SA), power cord, user guide
Storage Tower IX (ST9), 1:11 HDD Duplicator subsystem (HDU11SAS), 6 units ofDual int. MicroSATA UDD (MS2UDDSA), Bundled accessories:Twelve units of mSATA - micro SATA adapter (ADMS18SA), power cord, user guide

Specifications

  • Writing mode : Sector to Sector
  • Support up to 90 MB/sec transferring rate (actual transfer rate depends on the speed of the media in the source and the destination slot)
  • Sturdy metal frame construction
  • Twelve (12) media slots - one (1) for source media and eleven (11) for destination media
  • Media slot supports direct loading of micro SATA hard drive or SSD
  • Following adapters are required to load the other media:
    • mSATA SSD: mSATA - micro SATA adapter, model ADMS18SA(12 units are included)
    • CFast card: CFast - micro SATA adapter, modelADCFASTMS(optional)
    • CF card or Micro Drive: CF - micro SATA adapter, modelADMSCF(optional)
  • LCD display with functional control panel
  • Two low noise high CFM ball bearing cooling fan
  • LEDs for drive access and power
  • Integrated 500W 110/240 auto-sense power supply
  • Compact size(W x D x H): ~7.5 x 17.25 x 17.2inch(190 x 438 x 437mm)
  • Weight: ~ 22.11 lb (10 Kg)
  • Operating environment: 0 - 50 degree C, 15% - 90% RH
  • Storage environment: -20 - 60 degree C, 0% - 95% RH non-condensing
  • 1 year warranty
