All stock codes associated to this product
MSHDU11T

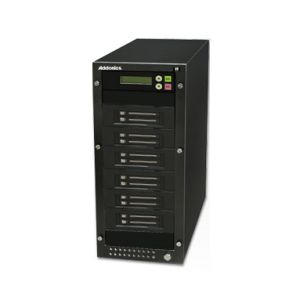

1:11 mSATA HDD/SSD Duplicator
Overview
The Addonics family of Combo mSATA HDD duplicator is designed for making multiple copies of mSATA SSD or 2.5" SATA HDD/SSD from a single master drive. Each duplicator comes bundled with a set of 2,5" mSATA flash drive kit that turns a mSATA SSD into a 2.5" SATA SSD. You can mix and match the mSATA SSD and the hard drive into the duplicator, thus making it a handy tool for transferring the content between the mSATA card and 2.5" hard drive. There is no computer needed or complex software to operate. Just open the doors on the drive bays, load the master media into the source bay and the target media of capacity equal or larger into the target bays, lock the drive doors and push the start button to start the copying process.
About This Model
This 1:11 Combo mSATA SSD/HDD duplicator allows you to copy from one source media onto as many as eleven (11) target media at one time. Source and target media can be of either mSATA SSD or 2.5" SATA hard drive. Designed with snap-In drive bay, drives are easily added or removed without any special tool, just like an ordinary cassette tape.
mSATA memory card installation illustration (no special tool required)
1. Insert the mSATA SSD into the mSATA connector on the PCB
2. Push down the other end of the mSATA SSD till it is latch securely by the hold down clip
The completed flash drive has the same dimension of a 9mm 2.5" HDD
turn over the flash drive

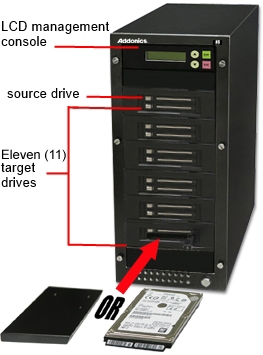

Loading the mSATA SSD or 2.5" SSD/HDD into the duplicator
Combo mSATA SSD/2.5" HDD Duplicator familiy comparison chart
|
Copying options
|
MSHDUS5
|
MSHDUS9HS
|
MSHDU11T
|
|
From source
|
To target
|
|
|
|
| mSATA SSD |
mSATA SSD |
Yes, up to 5 targets
|
Yes, up to 9 targets
|
Yes, up to11 targets
|
| mSATA SSD |
2.5" SATA HDD/SSD |
|
Yes, up to 9 targets
|
Yes, up to11 targets
|
| 2.5" SATA HDD/SSD |
2.5" SATA HDD/SSD |
|
Yes, up to 9 targets
|
Yes, up to11 targets
|
| 2.5" SATA HDD/SSD |
mSATA SSD |
|
Yes, up to 9 targets
|
Yes, up to11 targets
|
| mSATA SSD |
CFast card |
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
| 2.5" SATA HDD/SSD |
CFast card |
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
| CFast card |
2.5" SATA HDD/SSD |
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
| CFast card |
mSATA SSD |
requires optional 2.5" CFast drive kit |
requires optional 2.5" CFast drive kit
|
requires optional 2.5" CFast drive kit
|
Features
- Copy up to eleven (11) mSATA SSD or 2.5" SATA HDD/SSD with thickness up to 9.5 mm
- The supported media can be mixed in the target slots - great for transferring content from mSATA SSD to HDD or vice versa
- Comes with twelve (12) units of 2.5" mSATA flash drive kits to convert mSATA SSD to 2.5" SSD
- Additional support for M2 (NGFF), CFast or CF card with the following optional model of 2.5" flash drive kit -AD25M2SSD,AD25CFASTD,AD25CFD
- Typical copying speed*:
| Copying Speed |
| 1 target |
3 targets |
5 targets or more |
| ~ 100 MB/sec |
~ 65 MB/sec |
~ 45 MB/sec |
-
- SECURE ERASE - HDD duplicator sends aWIPE command to the hard drive. This commandfills 00 string to entire HDD (this option may not be supported on certain SSD or mSATA card)
- OVERWRITE - One pass, 3 passes and 7 passes 5220.22-M.The duplicator writes a string of pattern over the entire disk one time, three times or seven times. 5220.22-M isthe DoD standard for drive sanitization
- LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be here Full LCD console feature list)
- Operate as a stand alone appliance. No computer or software needed
*The speed here is for reference only. The acutal transfer rate varies depending on the speed of the source and destination drive
Components for the main unit
Storage Tower (ST9), 1:11 HDD Duplicator subsystem (HDU11SAS), six (6) units of the Snap-In Double Drive (AE25SNAP2SA),
Bundled accessories:twelve (12) units of 2.5" mSATA flash drive kit (AD25MSD), power cord, user guide
Specifications:
- Writing mode: Sector to Sector
- Typical copying speed:
| Maximum Copying Speed |
| 1 taret |
3 targets |
4 targets or more |
| ~ 100 MB/sec |
~ 60 MB/sec |
~ 45 MB/sec |
- Sturdy metal frame construction
- Drives are added or removed just like VHS cassette without tools
- LCD display with functional control panel
- Low noise high CFM ball bearing cooling fan
- Power consumption: 15 - 100 Watts (varies depending on the media)
- Integrated universal AC 110/240V power supply
- Dimension (W x L x H): ~ 7.5 x 17.25 x 17.2 in. (190 x 438 x 437 mm.)
- Weight:~ 21.22lb ( 9.62 kg)
- Operating temperature and humidity: 0 - 50 degree C, 15% - 90% RH
- Storage temperature and humidity: (-20) - 65 degree C, 0% - 95% RH non-condensing
Specification subject to change without notice
