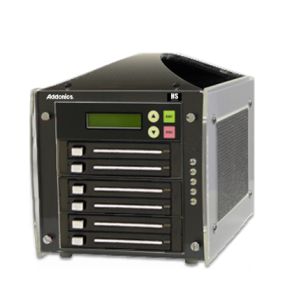

1:5 mSATA / 2.5" SSD/HDD duplicator
MSHDUS5LX
Overview
The Addonics family of Combo mSATA HDD duplicator is designed for making multiple copies of mSATA SSD or 2.5" SATA HDD/SSD from a single master drive. Each duplicator comes bundled with a set of 2,5" mSATA flash drive kit that turns a mSATA SSD into a 2.5" SATA SSD. You can mix and match the mSATA SSD and the hard drive into the duplicator, thus making it a handy tool for transferring the content between the mSATA card and 2.5" hard drive. There is no computer needed or complex software to operate. Just open the doors on the drive bays, load the master media into the source bay and the target media of capacity equal or larger into the target bays, lock the drive doors and push the start button to start the copying process.
About the 1.5 mSATA / 2.5" SSD/HDD duplicator
These 1:5 Combo mSATA SSD HDD duplicators allow you to copy from one source media onto as many as five (5) target media at one time. Source and target media can be of either mSATA SSD or 2.5" SATA hard drive. Designed with snap-In drive bay, drives are easily added or removed without any special tool, just like an ordinary cassette tape.By adding other optional2.5" flash drive adapters, the supported media can be expanded to include M2 (NGFF) card, CFast card and CF card. There is a choice of the High Speed model that maintains duplication speed from one to 5 targets with little performance degradation.
mSATA memory card installation illustration (no special tool required)
1. Insert the mSATA SSD into the mSATA connector on the PCB
2. Push down the other end of the mSATA SSD till it is latch securely by the hold down clip
The completed flash drive has the same dimension of a 9mm 2.5" HDD
turn over the flash drive

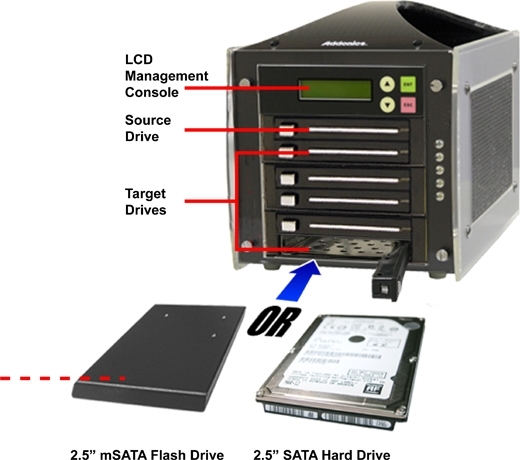

Loading the mSATA SSD or 2.5" SSD/HDD drive into the duplicator
Combo mSATA SSD/2.5" HDD Duplicator familiy comparison chart
|
Copying options
|
MSHDUS5HS, MSHDUS5LX
|
MSHU9HS-2S
|
MSHU9HS
|
MSHDU11T
|
MSHU11-2S
|
|
From source
|
To target
|
| mSATA SSD |
mSATA SSD |
Yes, up to 5 targets
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| mSATA SSD |
2.5" SATA HDD/SSD |
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| 2.5" SATA HDD/SSD |
2.5" SATA HDD/SSD |
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| 2.5" SATA HDD/SSD |
mSATA SSD |
|
Yes, up to 9 targets
|
Yes, up to 9 targets
|
Yes, up to 11 targets |
Yes, up to 11 targets |
| 3.5" hard drive |
mSATA or 2.5" SSD/HDD |
|
Yes
|
NA
|
NA |
Yes |
Features
- Copy up to five mSATA SSD or 2.5" SATA HDD/SSD at one time
- Supported drive thickness: up to 9.5 mm
- The supported media can be mixed in the target slots - great for transferring content from mSATA SSD to HDD or vice versa
- Comes with six units of 2.5" mSATA flash drive kits to convert mSATA SSD to 2.5" SSD
- Additional support for M2 (NGFF), CFast or CF card with the following optional 2.5" flash drive kit -AD25M2SSD,AD25CFASTD,AD25CFD
- Choice of high performance model
- Typical copying speed*:
| Copying Speed |
| Model |
1 target |
3 targets |
4 targets or more |
| MSHDUS5HS |
~ 105 MB/sec |
~ 70 MB/sec |
~ 60 MB/sec |
| MSHDUS5LX |
~ 95 MB/sec |
~ 50 MB/sec |
~35 MB/sec |
- Compact size and light weight for easy transportation
- Support any file system
- Maximum drive size >4TB
- Source and Destination drives are added or removed like tape cartridges from each drive bay with no special tool required
- Drive sanitization:
- SECURE ERASE - HDD duplicator sends aWIPE command to the hard drive. This commandfills 00 string to entire HDD(this feature may not be supported by some mSATA SSD or flash media)
- OVERWRITE - One pass, 3 passes and 7 passes 5220.22-M.The duplicator writes a string of pattern over the entire disk one time, three times or seven times. 5220.22-M isthe DoD standard for drive sanitization
- LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be here Full LCD console feature list)
- Operate as a stand alone appliance. No computer or software needed
*The speed here is for reference only. The acutal transfer rate varies depending on the speed of the source and destination drive
Components in for the main unit
Model: MSHDUS5LX - Storage Tower IV (ST4), 1:5 HDD Duplicator subsystem (HDU5SAS), three (3) Snap-In Double Drives (AE25SNAP2SA)
Model: MSHDUS5HS - Storage Tower IV (ST4), 1:5 HDD High Speed Duplicator subsystem (HDU5SASHS), three (3) Snap-In Double Drives (AE25SNAP2SA)
Bundled accessories:six (6) units of 2.5" mSATA SSD adapters (AD25MSD), power cord, user guide
Specifications:
- Writing mode: Sector to Sector
- Typical copying speed:
| Copying Speed |
| Model |
1 target |
3 targets |
4 targets or more |
| MSHDUS5HS |
~ 105 MB/sec |
~ 70 MB/sec |
~ 60 MB/sec |
| MSHDUS5LX |
~ 95 MB/sec |
~ 50 MB/sec |
~35 MB/sec |
- Sturdy light weight aluminum frame construction
- Drives are added or removed just like VHS cassette without tools
- LCD display with functional control panel
- Well ventilated for efficient air flow.
- Low noise high CFM ball bearing cooling fan
- Integrated 150W universal AC 110/240V power supply
- Dimension:~ 8.19 x 11.75 x 8 inch (208 x 298 x 203 mm)
- Weight:~ 10.20 lb (4.63 Kg)
- Operating temperature and humidity: 0 - 50 degree C, 15% - 90% RH
- Storage temperature and humidity: (-20) - (65) degree C, 0% - 95% RH non-condensing
Specification subject to change without notice
