All stock codes associated to this product
GSS116E100AJS, GSS116E-100AJS, 606449105193
GSS116E-100AJS
Overview
Your ports and cables where you want them
Today's networks have increasing numbers of devices attached to them, both wired and wireless. As wired devices proliferate, it can be difficult to easily and neatly place networked ports where you want them.
NETGEAR ProSAFE Click Switches address this issue with an innovative and thoughtful hardware design, including the flexible 1-2-3-4 Click mounting system. The new ProSAFE Click Switches are Gigabit Ethernet switches with an industry-first, bracket mounting system for easy installation. Available in either 8- or 16-Gigabit port configurations, their slim design and internal power supplies enables you to organize wires, secure cables, eliminate bulky power adapters, and improve the overall appearance of wiring closets, training facilities, lab benches, conference rooms, and entertainment centers that require multiple connected devices.
Flexible 1-2-3-4 Mounting System

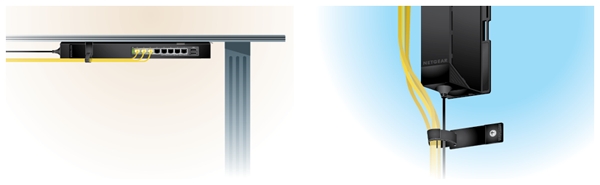

The innovative 1-2-3-4 mounting system gives you the flexibility to place the Click Switch in locations where other switches will not go. Whether it's directly on a wall, strapped to a pole, under the meeting table in a conference room or in a server closet, vertical or horizontal, the Click Switch's unique mounting system allow you to control exactly how your ports and cables are deployed.
NETGEAR ProSAFE Click Switch Family Overview
Overview of the NETGEAR ProSAFE Click Switch Family. The Click Switches GSS108E (8-port) and GSS116E (16-port) feature an innovative and flexible mounting bracket, making it easy to mount the Click switches vertically and horizontally, on a wall, under a desk, or strapped to a pole - allowing you to put your ports where you need them.
Plus Switch Networking Features
The Click Switches can go beyond plug n' play connectivity with ProSAFE Plus Switch networking features, allowing businesses to segment the network with VLANs or prioritize voice and video traffic with QoS. IGMP Snooping allows for optimized multimedia delivery and port trunking (GSS116E only) adds redundancy to uplinks and servers.
Highlights
Flexible 1-2-3-4 Click Mounting System

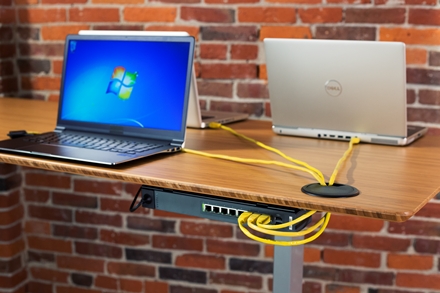

Convenient positioning choice including under table, wall, leg or pole placement
Innovative Mounting Bracket
Simple to use mounting bracket enables vertical or horizontal orientation of ports

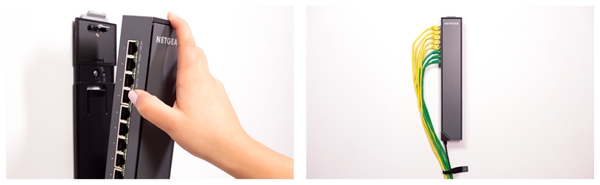

To install, just mount the bracket onto a wall or desk, and "Click" the switch into the bracket
Easy Cable Management
Multi-directional power cable can be routed outwards or downwards
Ethernet cables can be strapped to the bracket or mounting surface using the provided retaining strap
Quick access USB ports for charging tablets or phones (8-port only)

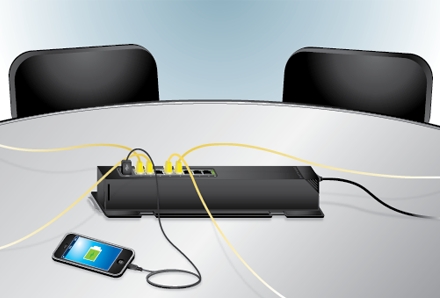

The GSS108E features two conveniently placed USB ports for users to charge their smartphones and tablets
Hardware

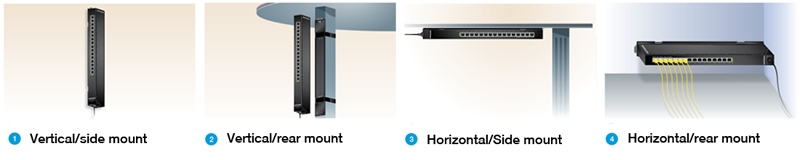

- 1-2-3-4 Click Mounting system allows for
- 1. Vertical/side mount
- 2. Vertical/rear mount
- 3. Horizontal/side mount
- 4. Horizontal/rear mount
- Multi-directional power cable can be routed outwards or downwards
- 2 Quick access USB charging ports for tablets or smartphones
- Rugged reenforced plastic (8-port) and metal (16-port) case
- Internal power supply eliminates the wall wart power adapter
- LED lights can be turned off for non-distracting placement next to a TV
- Silently runs without a fan
Traffic Management
- Auto Negotiation of speed and duplex modes
- 801.2x Flow Control
- DHCP Client
- Dynamic MAC address management
- IEEE802.1Q-based or port-based VLAN
- QoS based on WRR, strict priority, or both
- Port-based and IEEE801.2p-based QoS
- QoS based on ToS (Type-of-Service)
- DSCP Support
- Rate Limiting
Multicast Efficiency
- IGMP snooping, v1, v2 and v3
- IGMP Snooping querier (16 and 24 port models only)
- Blocking of unknown multicast traffic
- Act as static multicast router port
Link Aggregation (GSS116E only)
- IEEE 802.3ad - LAGs
- Manual LAG
- 2 LAGs with max 8 member in each LAG
Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast Storm control
- Cable diagnostics
- Loop Detection
- DoS Prevention (GSS116E Only)
- Energy Efficient Ethernet (IEEE802.3az) compliant
Switch Management
- Plus Utility
- Web-based Management
- Firmware Upgrade thru Plus Utility (TFTP)
- Firmware Upgrade thru Plus Utility (TFTP)
- Configuration Upload (to Server)
- System password protection
NETGEAR Warranty
- This product is backed by a NETGEAR ProSAFE Lifetime Hardware Warranty.
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
Specifications:
Model Description

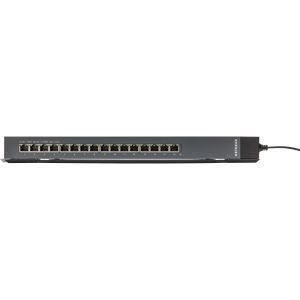

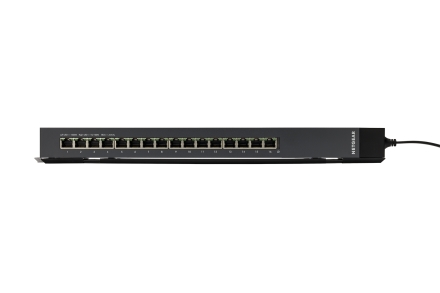

- 16-port Gigabit Click Switch
Number of LAGs & # of members
- 2 LAGs with max 8 members in each LAG
Supported Multicast Groups
Auto Denial-of-Service Prevention
Max Number of Source Ports Allowed (Many to 1)
LED Lights Off for Stealth Operation
Internal/External Power Supply
Max Power Consumption (Watts)
Acoustic Noise Level @25C (dBA)
Electromagnetic Compliance (A or B)
Networking
