8-Port Gigabit PoE Smart Switch with 2 Gigabit SFP
Connect computers, VoIP phones, access points & IP cameras throughout your office
EGS2110P
- 8 Gigabit ports with IEEE 802.3af PoE support
- 2 Available SFP Slots
- 61.6W PoE Budget
- PoE Management
- Loopback Detection
- IGMP Snooping
- Bandwidth Control
Provides Power and Connectivity to a Variety of Devices
Up to 15.4W per port with a total PoE budget of 61.6W. PoE+ IEEE 802.3af Support enables Access Points, Client Bridges, IP Surveillance Cameras, VoIP telephones and more to be powered directly from the Switch over an Ethernet cable.
Ideal for Networks in Large Buildings or Linking Remote Buildings on a Campus

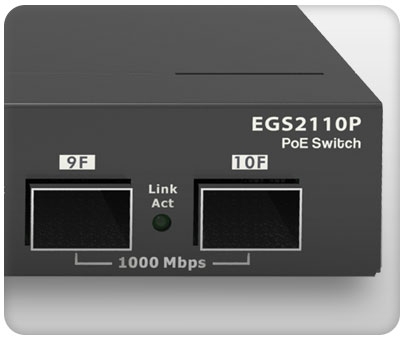

Includes Dual Speed 2 SFP ports to support transceivers for fiber cabling for connectivity to offices, buildings, or other parts of the network that exceed the distance capability of regular Ethernet.
Gigabit Speed for Small Businesses
8 Gigabit Ports provides connectivity for devices and applications that require high speed network access and connectivity to PoE devices.

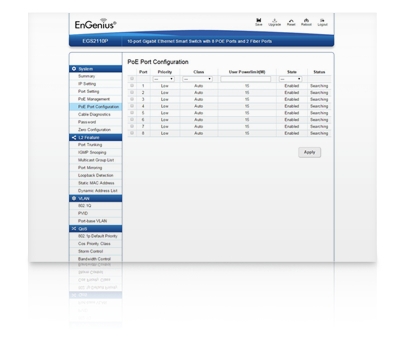

Provides Full-Featured Layer 2 Manageability
The full-featured, managed Layer 2 Switch includes: VLAN, QoS, IGMP/MLD Snooping, STP/RSTP/MSTP, Link Aggregation Control Protocol (LACP), Storm Control, SNMP v1/v2c/v3, and more.
Rack Mountable
The EGS2110P includes bracketing hardware for mounting onto a standard switch rack.
Overview
EGS2110P 8-Port Gigabit PoE Smart Switch with 2 Gigabit SFP
The simple but powerful EGS2110P Smart PoE Switch delivers up to 15.4 watts over connected Ethernet cables to powered devices. It supports VLAN, QoS and IGMP Snooping features for priority based applications, such as IP surveillance or video/voice transitions. It also offers PoE Management on all its PoE Gigabit ports and priority-based configuration. The EGS2110P is a high performing yet cost-effective solution for small-to-medium-sized business who need keep their employees communicating and collaborating at Gigabit speeds and need to power connect VoIP (Voice-over-IP) phone systems, Wireless Access Points, and IP Cameras throughout their facility.
Clear Quality and Efficient Voice Communications
Provides 802.1Q VLAN support for improved convergence and bandwidth utilization and automates the process of setting up VoIP devices on a network. Voice VLAN guarantees.
Technical Specifications
Standard
Switching Capacity: 16Gbps
Max. Forwarding Rate (64kBytes): 14.88Mpps
Forwarding Mode: Store and Forward
Packet Buffer memory: 512Bytes
Flash Memory: 4Mbytes
Port Functions
8 10/100/1000 Mbps Ports in the front panel
2 1000 Mbps SFP Slot
PoE Capability
PoE standard: Port 1~8 Support IEEE 802.3af
PoE Capable Ports: Port All ports can output up to 15.4W
Power budget: 61.6 Watts
LED Indicator
Device:
Power LED x1
Fault LED x1
PoE Max LED x1
LAN Mode LED x1
PoE Mode LED x1
Copper Ports:
LAN/PoE Mode, Link/Act
SFP Ports: Link/Act
Environmental & Mechanical
Temperature Range
Operating: 32 to 104F / 0 to 40C
Storage: -40 to 158F / -40 to 70 C
Humidity
5% - 95%
L2 Features
Loopback Detection
IGMP Snooping v1/v2
Port Trunking
Port Mirroring: one to one and many to one
Static MAC Address
Dynamic MAC List
Bandwidth Control
802.1Q VLAN
Port-based VLAN
Storm Control
PoE Management
BootP/DHCP Client
Cable Diagnostics
Maximum data rates are based on IEEE 802.3ab standards. Actual throughput and range may vary depending on distance between devices or traffic and bandwidth load in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright 2013 EnGenius Technologies, Inc. All rights reserved. Compliant with FCC - This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.
