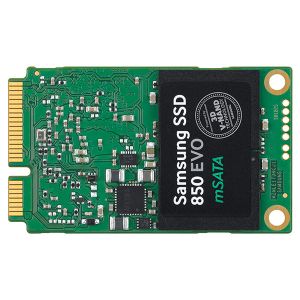

Samsung 500GB mSATA Solid State Drive - mSATA-III, 3D V-VAND - 850 EVO Series
  • 540MB/s Read, 520MB/s Write

IMG 1 of 4
No Longer Available
Part Number:
391489
(?) Brand:
Samsung Web Site
Manuf No:
MZ-M5E500BW
MZM5E500BW
Shipping Weight:
0.25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MZM5E500BW, MZ-M5E500BW, MZ-M5E500BW , 06SS3MSM500BW850E, 06SS3-MSM-500BW850E, 8806086585682, 8806086585651

SSD 850 EVO mSATA 500GB


MZ-M5E500BW

Storage: 500GB

  • Innovative 3D V-NAND Technology
  • Incredible Read/Write Performance
  • Enhanced Endurance and Reliability
  • The Most Evolved SSD for Ultra-thin Laptops and PCs

About This Product

The Samsung SSD 850 EVO. The top SSD for top professionals.

Specifications

Type


  • Product Type

    mSATA

  • Interface

    SATA 6Gb/s Interface, compatible with SATA 3Gb/s & SATA 1.5Gb/s interface

Application


  • Consumer

    Client PCs

Storage

  • Capacity

    500 GB (1GB=1 Billionbyte by IDEMA) *
    *Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Features

  • Sequential Read Speed

    Up to 540 MB/sec Sequential Read *
    *Performance may vary based on system hardware & configuration

  • Sequential Write Speed

    Up to 520 MB/sec Sequential Write *
    *Performance may vary based on system hardware & configuration

  • Random Read Speed

    Random Read (4KB, QD32): Up to 97,000 IOPS Random Read
    * Performance may vary based on system hardware & configuration
    Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
    * Performance may vary based on system hardware & configuration

  • Random Write Speed

    Random Write (4KB, QD32): Up to 88,000 IOPS Random Write *
    *Performance may vary based on system hardware & configuration
    Random Write (4KB, QD1): Up to 40,000 IOPS Random Write
    * Performance may vary based on system hardware & configuration

  • Memory Speed

    Samsung 32 layer 3D V-NAND
    Samsung 512 MB Low Power DDR3 SDRAM

  • Controller

    Samsung MEX Controller

  • Trim Support

    Yes

  • AES Encryption

    AES 256 bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

  • S.M.A.R.T. Support

    Yes

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • WWN Support

    World Wide Name supported

  • Device Sleep Mode Support

    Yes

General

  • Power Consumption (W)

    50 mWatts
    * Actual power consumption may vary depending on system hardware & configuration
    Average: 3.3 Watts *Maximum: 4.8 Watts (Burst mode)
    * Actual power consumption may vary depending on system hardware & configuration

  • Voltage

    5V5% Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

Environmental Specs

  • Operating Temperature

    32F - 158F

  • Shock

    1,500G & 0.5ms (Half sine)

Form Factor

  • Product

    mSATA

Dimensions (W x H x D)

  • Product

    1.18" x 2" x 0.15"

Weight

  • Product

    0.02 lb.

Software

  • Management SW

    Magician Software

Warranty

  • Product

    5 Years Limited Warranty or 150TBW Limited Warranty

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
