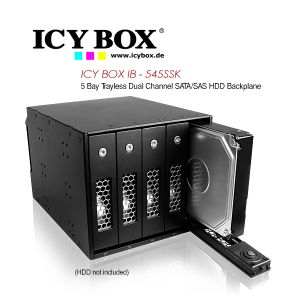

IcyBox IB-545SSK 5-Bay Trayless Dual Channel SATA/SAS HDD Backplane
  • Fits 3x5.25" Bay, 5x3.5"SATA/SAS HDD Bay, 2x60mm Fan, Aluminium, SATA

IMG 1 of 1
No Longer Available
Part Number:
391573
(?) Brand:
IcyBox Web Site
Manuf No:
IB-545SSK
IB545SSK
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
IB545SSK, IB-545SSK, HDDICY545SSK

ICY BOX (IB - 545SSK) 5 Bay Trayless Dual Channel SATA/SAS HDD Backplane


  • 5x 3.5 inch SATA or SAS HDD in 3x 5.25 inch bay
  • 2x host connector (dual channel)
  • for each SAS HDD
  • Hard disk capacity not limited
  • SATA I/II/III host interface 6.0 Gbit/s
  • HDD slots with key lock
  • Plug & Play and Hot Swap

Specifications:

  • Colour: Black
  • Material: Aluminium
  • Required space: 3x 5.25 inch
  • Carrier: 5x
  • Fan: 2x 60x60x10 mm / 3.000 rpm (23.3 dBA)
  • HDD size (inch): 3.5 inch
  • HDD size (cm): 8.89 cm
  • HDD capacity: No limit
  • HDD interface: 5x 3.5 inch SAS/SATA I/II/III
  • Host interface: 10x SATA (Dual Channel)
  • Transfer rate: Up to 6.0 Gbit/s
  • Hot Swap: Yes
  • Plug & Play: Yes
  • Lock: Yes
  • Operating system: OS independent
  • Power connector: 2x Molex 4Pin (12+5 V)
  • Alarm: Visual by LED (fan off)
  • LED: HDD LED: HDD presence, HDD access, no HDD, Fan LED: Fan on/off
  • Packing content: 1x IB-545SSK, 5x SATA cable, 12x screw, 2x key 1x manual
  • Gross weight (incl. packing): 2.354 kg
  • Net weight: 1.93 kg
  • Dimension of packing box: 275x225x195 mm
  • Dimension of article: 145x190x130 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (IcyBox) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
