2 x 2 AC Dual-Band Wall-Mount PoE Access Point
WAP1200
Powerful 2.4GHz & 5GHz Dual-Band SMB Solution
- 802.11AC Dual-Band High Speed
- Easy Installation
- Designed for High Density Usage
- Multiple SSIDs for Security Management
- Fast Roaming
- Wide Coverage & High Sensitivity
- Seamless Mobility
- Power over Ethernet
- Built-In RADIUS Server
- Business Environments
- Central Management
- Optional Security Cover
Powerful 2.4GHz & 5GHz Dual-Band SMB Solution
The WAP1200 is high-speed, robust wireless solution designed to meet the needs of modern SMBs with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. A wall-mounted design, industrial-grade performance and build quality combined with user-friendly operation, 11ac speeds and an extensive feature set make an ideal dual-band solution for day-to-day enterprise operations.
For businesses that demand security, flexibility and speed the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 100 simultaneous users is ideal for BYOD workplaces or other environments with a high volume of users and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet support (PoE) and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators. An optional security cover also prevents physical theft or tampering, along with a rogue AP detection function to safeguard your network from unauthorized access.
When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.
KEY FEATURES
- 802.11AC Dual-Band High Speed: IEEE 802.11ac concurrent dual-band with 1200Mbps wireless speed.
- Easy Installation: Wall-mount design with easy installation kit.
- Designed for High Density Usage: Supports up to a hundred users simultaneously, ideal for crowded environments and BYOD (Bring Your Own Device) workplaces.
- Multiple SSIDs for Security Management: Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.
- Fast Roaming: Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.
- Wide Coverage & High Sensitivity: Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.
- Seamless Mobility: 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.
- Power over Ethernet: Supports IEEE 802.3at PoE and IEEE 802.3af PSE out as well as included power adapter.
- Built-In RADIUS Server: With management for up to 256 user accounts.
- Business Environments: Advanced choice for SMBs. Suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail and others.
- Central Management: Edimax Pro Network Management Suite (NMS) , easy and Intuitive web-based central management suite, supports AP array architecture.
- Optional Security Cover: Prevents theft and tampering.
High Performance Design with High-Speed 1200Mbps Dual-Band 11ac
State-of-the-art IEEE 802.11ac wireless technology delivers the Giga-fast Wi-Fi speeds that todays fast-moving modern business environments demand. And simultaneous 2.4GHz & 5GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band can handle even the most bandwidth intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally Edimax Pro series products feature other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability. Durable, robust and ready for business environments.

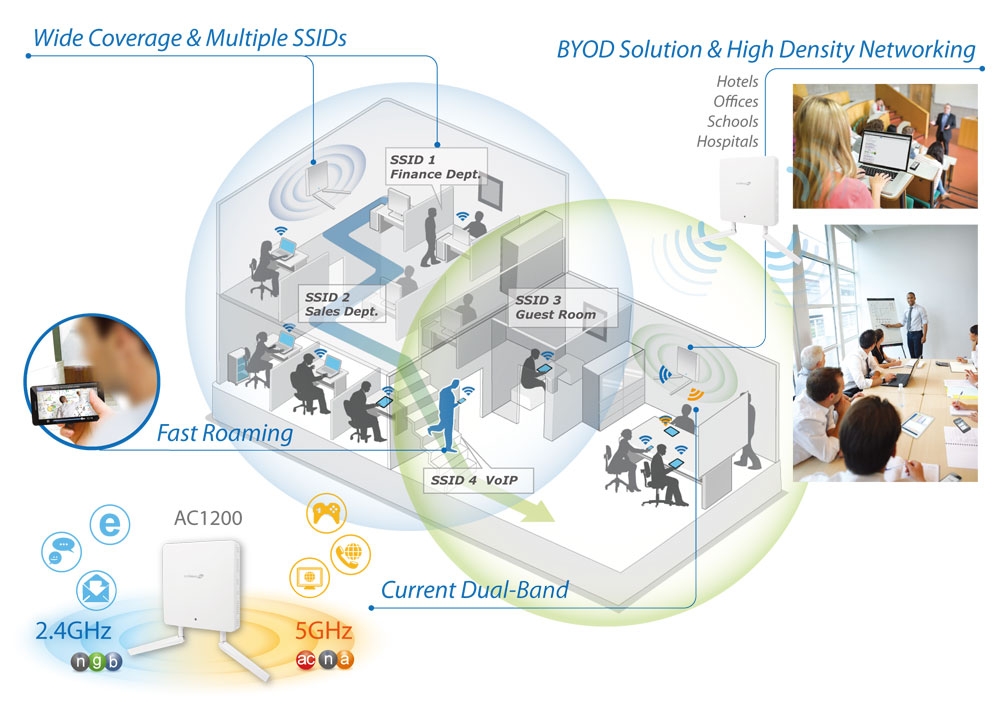

Wide Coverage & Multiple SSIDs
With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where its needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.
BYOD Solutions & High Density Networking
Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets and laptops with the latest cloud-connected productivity apps to get things done, andtraditional 2.4GHz is crowded, so most of these devices need or support high-speed 5GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether its customers or employees. Edimax Pro solutions support the latest 802.11ac 2.4GHz & 5GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.
Seamless Mobility
Typical wireless access points can effectively cover a 25m 30m radius under normal usage. Now with the technological advances in Edimax Pro access points, we can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.
Hotels, Offices, Schools and Hospitals
Edimax Pro series access points, with high-speed 11ac high-density networking for up to 100 simultaneous users, are ideal for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, conventions or anywhere with large-scale network use, with safety and effectiveness guaranteed.
Rogue AP Detection & Wireless Isolation
Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.

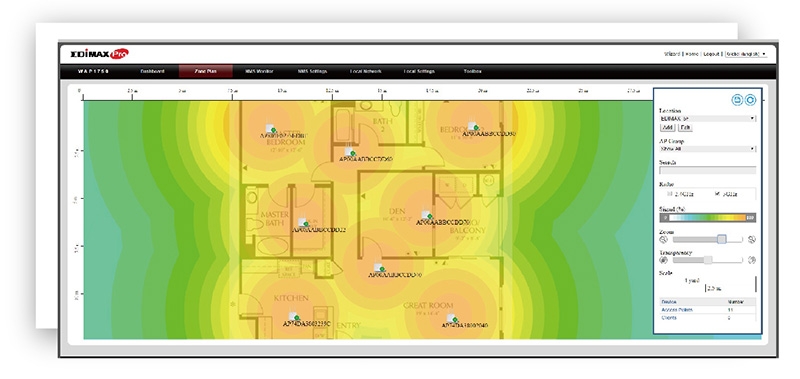

Easy and Intuitive Central Network Management Suite (NMS)
Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. Company MIS departments can plan and manage Edimax Pro access points powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.

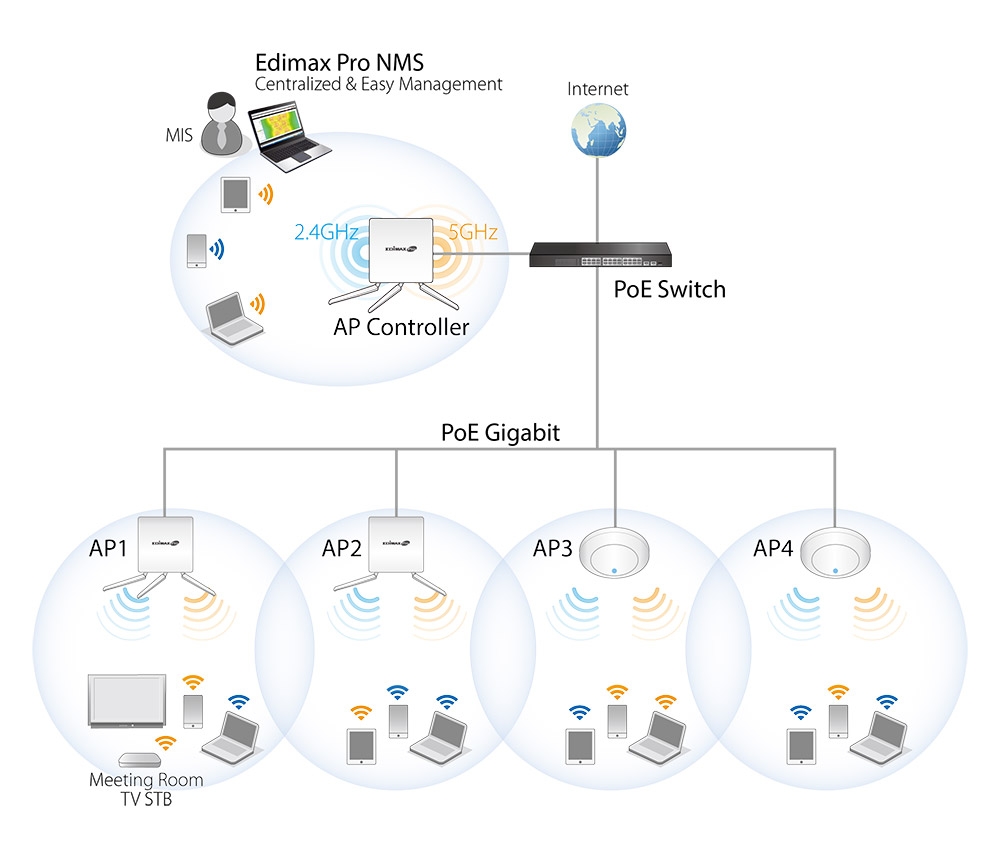

AP Array
Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 8 Edimax Pro access points with no additional wireless controller required, reducing costs and facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface and a full range of functionality for company MISs.

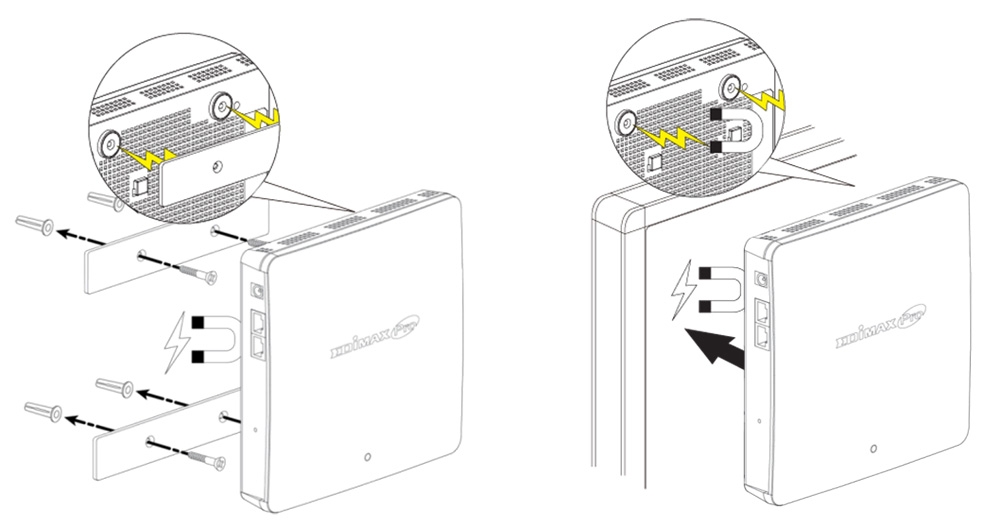

Easy Installation Kit
Wall mount with bracket and magnetic template.

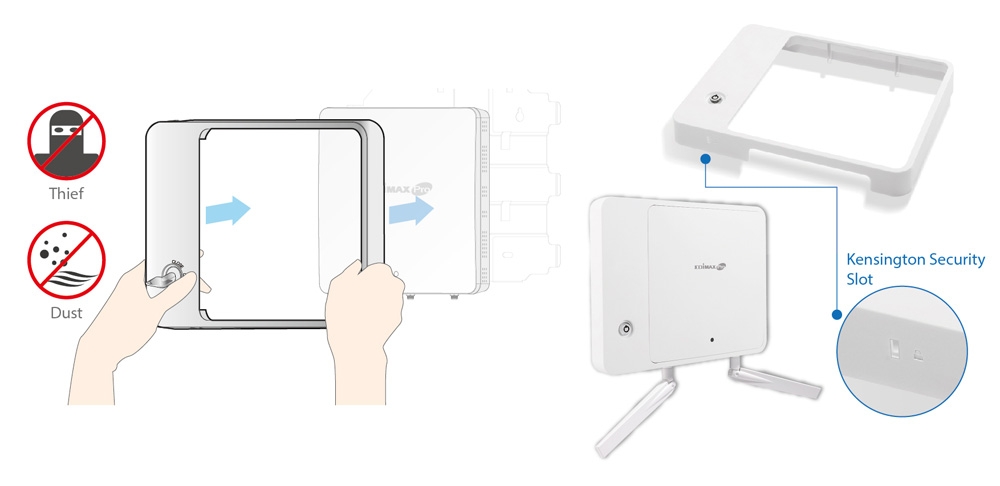

Security Cover (Optional Accessory (SC1000)
Network security is a critical concern for any modern business and begins with the hardware itself. Edimax Pro access points can be fitted with a robust security cover and lock, preventing the access point from being tampered with or removed and restricting access to authorized persons only.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
Actual viewing resolution and frame rate of network cameras depend on connection speed.
Product specifications and design are subject to change without notice.
SPECIFICATIONS
| HARDWARE |
| LAN Interface |
Giga x 2 |
| PoE |
802.3at (in) / 802.3af (out) |
| Antenna |
Type: 2 x External
Gain: 2dBi (2.4GHz), 2dBi (5GHz) |
| Power |
DC: 12V / 2.5A
802.3af (PoE Injector Optional) |
| Dimensions(L x W x H) |
18.3 x 18.3 x 3.6 cm |
| Weight |
527g |
| Power Consumption (Full Loading) |
12W (Exclude PoE-Out) |
| Mounting |
Wall / Desktop |
| Console |
RJ45 |
| WPS/Reset |
Y |
| LED Indicator |
1. Power LED
2. Diag LED |
| Environmental Conditions |
Operating Temperature: 0C (32F) to 50C (122F)
Operating Humidity: 90% or Less |
| Power Saving |
802.3az |
| Internal Buzzer |
Y |
| Security Cover |
Y (Optional) |
| WIRELESS |
| Standard |
802.11 a/b/g/n/ac Concurrent Dual-Band |
| No. of Radios |
2 |
| Receiver Sensitivity |
-94.5dBm |
| Certification |
CE / FCC |
| Fast Roaming |
Y |
| Number of SSIDs |
16 (2.4GHz) + 16 (5GHz) |
| PERFORMANCE |
| Maximum Data Speed |
300 + 867Mbps |
| Concurrent Clients |
Up to 50 Per Radio |
| RF SPECIFICATONS |
| Frequency Band |
Radio : 802.11b/g/n 2.412~2.484(GHz)
Radio : 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by local regulations.)
|
| Operation Channels |
2.4GHz : US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
Japan 1-14; 2.412~2.484GHz
5GHz : Country dependent for the following ranges:
US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe: Band 1:36, 40, 44, 48; 5.745~5.825(GHz)
|
| Transmit Power |
802.11b
23dBm@1Mbps
23dBm@2Mbps
[email protected]
23dBm@11Mbps
802.11g
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbps
802.11gn (2.4G)
27.5dBm@MCS0/8/16
26.5dBm@MCS1/9/17
26.5dBm@MCS2/10/18
26.5dBm@MCS3/11/19
25.5dBm@MCS4/12/20
24.5dBm@MCS5/13/21
23.5dBm@MCS6/14/22
22.5dBm@MCS7/15/23
|
802.11a
22dBm@6Mbps
22dBm@9Mbps
22dBm@12Mbps
22dBm@18Mbps
22dBm@24Mbps
21dBm@36Mbps
19dBm@48Mbps
18dBm@54Mbp
802.11an(5G)
27.5dBm@MCS0/8/16
26.5dBm@MCS1/9/17
26.5dBm@MCS2/10/18
25.5dBm@MCS3/11/19
25.5dBm@MCS4/12/20
24.5dBm@MCS5/13/21
23.5dBm@MCS6/14/22
22.5dBm@MCS7/15/23
802.11ac
27.5dBm@MCS0
26.5dBm@MCS1
26.5dBm@MCS2
25.5dBm@MCS3
25.5dBm@MCS4
24.5dBm@MCS5
23.5dBm@MCS6
22.5dBm@MCS7
20.5dBm@MCS8
19.5dBm@MCS9
|
| Receiver Sensitivity |
802.11b
-93dBm@1Mbps
-90dBm@11Mbps
802.11g
-90dBm@6Mbps
-74dBm@54Mbps
802.11gn (2.4G)
-94.5dBm@MCS0
-76.5dBm@MCS7
-90dBm@MCS8
-72dBm@MCS15
-90dBm@MCS16
-72dBm@MCS23
|
802.11a
-90dBm@6Mbp
-72dBm@54Mbps
802.11an(5G)
-94.5dBm@MCS0
-70.5dBm@MCS7
-90dBm@MCS8
-66dBm@MCS15
-90dBm@MCS16
-66dBm@MCS23
802.11ac
-90.5dBm@MCS0
-60.5dBm@MCS9
|
| SECURITY |
| Encryption |
WEP / WPA / WPA2 |
| Wireless L2 Isolation |
Y |
| Station Isolation |
Y |
| IEEE 802.1x Authenticator |
Y |
| EAP Authentication |
EAP-FAST / EAP-SIM / EAP-AKA |
| Hidden SSID |
Y |
| MAC Address Filter |
Y |
| Wireless STA |
Y |
| Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS)) |
Y |
| SOFTWARE |
| Wireless Mode |
AP / WDS AP / WDS Bridge |
| 802.1q VLAN |
Y (VID = 1-4095) |
| Spanning Tree |
RSTP |
| QoS |
WMM (802.11e)
Max Associated Station No. |
| Pass-Through |
IPv6 and VPN (PPTP, L2TP/IPsec) |
| DSCP (802.1p) |
Y |
| Multicast Rate up to 54Mbps |
Y |
| MANAGEMENT |
| Deployment |
Standalone
Managed by Edimax Pro NMS |
| Configuration |
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
| RADIUS Server |
Built-In |
| Auto-Channel |
Y |
| Private MIB |
Y |
