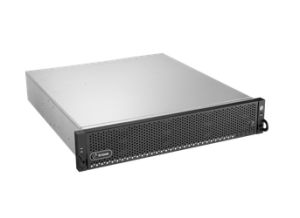

DSN-6510
The DSN-6210/6510 Series is a cost-effective 1 GbE / 10 GbE IP SAN storage system designed for small to medium sized businesses. Available in different configurations of GbE iSCSI, 10 GbE iSCSI and SAS interfaces, the DSN-6210/6510 Series provides a flexible, intelligent, Storage Area Network (SAN) solution for virtualized server environments and data storage. With its high performance iSCSI SAN storage platform, it can provide non-stop service with a high degree of fault tolerance by using D-link RAID technology and advanced array management features. This, coupled with a redundant controller and power supply, ensures that valuable data is never lost.
Features
DSN-6510
High Performance
High performance iSCSI SAN controller capable of handling heavy enterprise tasks uninterrupted, with added redundancy features
iSCSI SAN Storage Architecture
State-of-the-art hardware configurations, dual active controllers and fully modular components allow users to do more with less
Value-added Applications
iSCSI SAN applications provide a complete backup solution, offering both local backup and remote backup
Specifications
Single/Dual Controller
Supports with DSN-656 Controller Module
Interface
2 x 10GbE iSCSI ports (SFP+) + 2 x GbE iSCSI ports per controller
No. of Hard Drives
12- Bay
Supported Hard Drives Types
3.5 SATA II / SATA III HDD or 2.5 "SSD
Disk Management
RAID level 0,1,0+1,3,5,6,10,30,50, 60, JBOD, N-way mirroring
Up to 2048 logical volumes
Up to 64 hard drives per volume group
One logic volume can be shared by as many as 16 hosts
Global and dedicated hot spare
Write-through or write-back cache policy
Online volume expansion
Instant RAID volume availability
Auto volume rebuilding
On-line volume migration without system down time
SSD caching (License)
Thin provisioning
RAID
0,1,0+1,3,5,6,10,30,50, 60
Management
ava-based centralized management software
Serial console
HTTP Web UI
Secured Web (HTTPS)
SSH telnet
LED indicators
Event notification via email, SNMP trap, browser pop-up windows, Syslog, Windows Messenger
Wake-on-LAN
Virtualization
VMware 5.1 + VAAI or (above)
Citrix
Hyper-V 3.0
