EZConvert Air Lite
MB482SP-3B Top-Free Open Air 2.5" to 3.5" SATA HDD/SSD Converter/Mounting Kit
MB482SP-3B
Overview

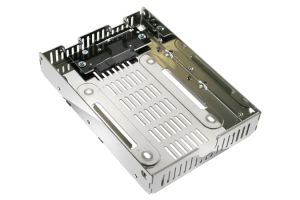

The EZConvert Air Lite MB482SP-3B ICY DOCK SATA 2.5" to 3.5" HDD/SSD converter is specifically designed for builders who prefer to mount their hard drive or SSD with screws for maximum stability. The EZConvert Air Lite MB482SP-3B features a top-free open air design with exceptional cooling and converts any 2.5" SATA HDD/SSDs into an exact 3.5" hard drive form factor with SATA 6Gbps speed. The entire converter is made of robust stainless-steel that is perfect for the most demanding applications. The perforated vents, top-free open air design, and metal construction all work synergistically to keep your drives as cool as possible.
2.5" Drive Support for All 3.5" Bays
SSDs are becoming more common in the average household, but most computer cases still don't have support for 2.5" drives. Since these chassis' don't normally have built in 2.5” SSD/HDD bays, a 2.5” to 3.5” HDD/SSD converter is an absolute necessity when purchasing 2.5” HDDs/SSDs. For enterprise, it’s valuable for upgrading 3.5" HDD file servers to 2.5" HDD/SSD file servers without paying a tremendous amount for an entire system upgrade.

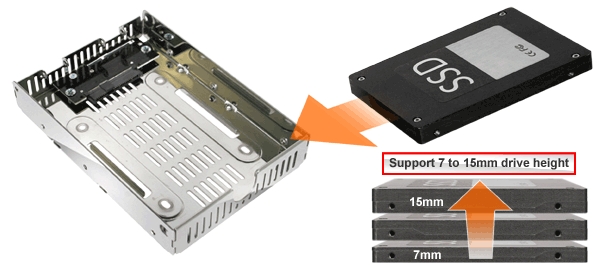

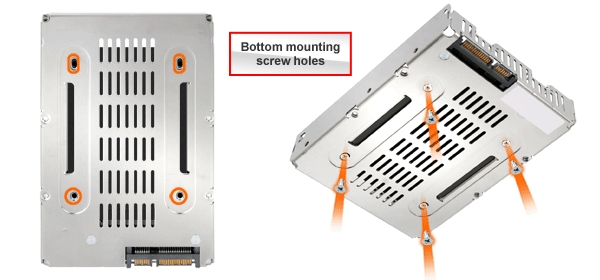

The EZconvert Air Lite MB482SP-3B accepts 2.5" SATA SSD/HDD of any height from 7mm to 15mm. The bottom mounting screw holes allow you to mount your 2.5" hard drive or SSD firmly into the converter and mount your converter firmly into your chassis with provided screws. Securing your drives in place is critical for rugged system builds.

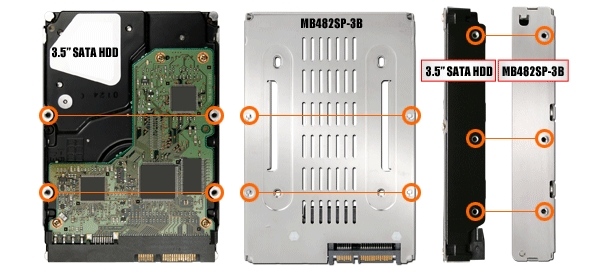

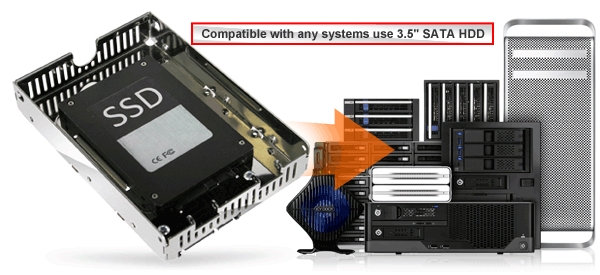

The EZConvert Air Lite MB482SP-3B has exact 3.5" SATA HDD dimension and specification, and is compatible with any computers, devices, servers and HDD enclosures that use 3.5" SATA hard drive.

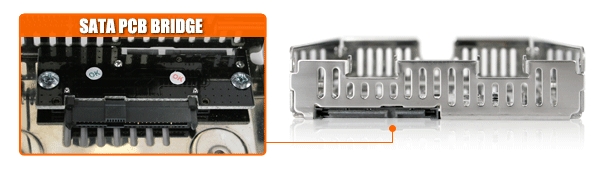

The built in SATA PCB bridge protects your HDD/SSD connector from wearing out during the insertion and removal cycle, and it delivers the full speed of SATA 6Gbps without any speed reduction due to it's pass-through design.
Advanced Cooling Design

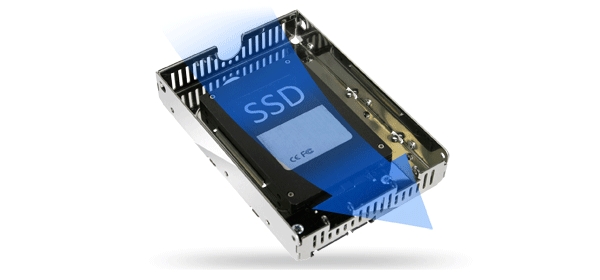

The foundation of the EZConvert Air Lite stems from it's ability to rapidly cool drives. A top-free open air design quickly disperses heat away from drives by allowing it to 'breathe' instead of fully enclosing it. This is crucial during intense applications and may lead to better performance since it's well known that excessive heat can interfere with your system's ability to perform optimally. We've strategically placed ventilated slots around the converter allowing heat to escape from all sides and angles, while the metal frame acts as a giant heat sink to quickly cool your hard drives. The open air design, ventilated slots, and metal frame combine to produce an advanced cooling system to put your mind at ease.
Key Features
- Converts 2.5” SATA HDD or SSD to 3.5” SATA hard drive
- Built in SATA bridge delivers full SATA 6Gbps speed
- Heavy duty stain-less steel exterior helps heat dissipation
- Top-free open air design for rapid heat dissipation
- Ventilated slots allow air to flow through converter
- Exact 3.5" HDD specification with universal 3.5” HDD mounting holes
- Fits all 2.5” SATA drive heights from 7mm to 15mm
- Fits every system that accepts 3.5" SATA hard drive
- Supports SATA and SATA power cables with locking latch design
3 Years Warranty
|
ICY DOCK EZConvert Air Lite MB482SP-3B Top-Free Open Air 2.5 to 3.5 SATA Hard Drive or SSD Converter / Mounting KitD Converter / Mounting Kit
|
|
Model Number :
|
MB482SP-3B
|
|
|
|
|
Compatible Drive Type :
|
2.5" SATA 1.5 / 3 / 6 Gb/s HDD/SSD (7mm, 9.5mm, 12.5mm &15mm)
|
|
|
Device Interface:
|
7 pin SATA
|
|
|
Power Input:
|
15 pin SATA power connector
|
|
|
Device Fit :
|
3.5" SATA drive bay
|
|
|
Transfer Rate :
|
Up to 6 Gb/sec. (depending on hard drive speed)
|
|
|
Material :
|
Stainless steel
|
|
|
Dimension (L x W x H) :
|
146.6 x 25.4 x 101.6mm
|
|
|
|
|
Package Contentst :
|
Device, user manual, screws
|
|
