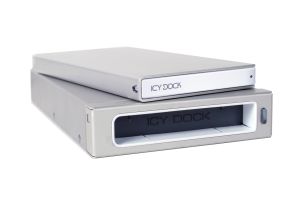

Icydock MB663UR-1S SATA HDD Mobile Rack
  • 2.5"SATA HDD Portable Enclosure, USB Powered, To Suit 3.5" Caddy - White - Plug & Play USB 2.0

IMG 1 of 1
No Longer Available
Part Number:
393629
(?) Brand:
Icydock Web Site
Manuf No:
MB663UR-1S
MB663UR1S
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MB663UR1S, MB663UR-1S
MB663UR-1S SATA HDD Mobile Rack 2.5"SATA HDD Portable Enclosure, USB Powered, To Suit 3.5" Caddy - White - Plug & Play USB 2.0



The MB663 Series has a new user friendly Screw-less design. User can just plug in the hard drive and play. MB663UR series is a 2.5 hard drive removable rack that fits into a standard 3.5" drive bay slot usually for floppy disk device if your standard 5.25" drive bays are overwhelmed by CD, DVD or so devices that you are unable to fit other storage drive devices into your system. Conforming to the idea of a 5.25" removable drive rack, the slim device keeps security, exchangeability, expandability, manageability available without sacrificing the needs of your 5.25" drive bays.


Suggested Applications:
Add-on data/ media files storage to laptops and desktops, DVR systems & on field imaging from surveillance DVR recordings, interchange of data between corporate/school/home workstations, data file backups.

Product Features:


Host : Plug & Play USB 2.0
Drive Fit : 1 x 2.5" SATA
Device Fit : 1 x 3.5" device bay
User friendly Screw-less design just plug in the hard drive and play
Light weight aluminum built cooling of storage drive cartridge
Portable external storage utilization capability option
Push & eject for quick extraction of cartridge
Cool white LED indicator

Models & Specifications:

Item No
MB663UR-1S
Color
white / black
Drive Fit
1 x 2.5" HDD Disk (9.5mm thickness)
Drive Bay
1 x 3.5"
Drive Interface
SATA
Chipset
Sunplus - SPIF215
Internal
Interface
SATA to USB
Data Transfer Rate
Up to 480Mb/Sec.
External
Interface
SATA to USB
Data Transfer Rate
Up to 480Mb/Sec.
Docking Power
4 pin power Connector x 1
LED Indicator
Power On : white LED
HDD Accesss : white LED Flash
Product Color
Silver & Black
Structure
Body Carrier
Aluminum body w/ partial plastic
Docking
Aluminum body w/ partial plastic
Drive Cooling
Aluminum heat dispersion
OS Requirement
Windows 98/SE/ME/2000/XP/Vista ; Mac OS 9.0 or higher
Dimension
(W x H x D)

Body Carrier
76.3 x 13 x 150 mm
Docking
100 x 25 x 173.5 mm



C

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Icydock) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
