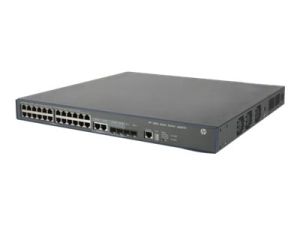

HP 3600-24-PoE+ v2 EI Switch (JG301C)
The HP 3600 EI Switch Series delivers resiliency, security, and reliability at the enterprise edge with support for advanced Layer 3 and multicast routing. This advanced Layer 3 Fast Ethernet switch series has a robust feature set supporting IRF stacking, Static & RIP Routing, OSPF, BGP, IS-IS, PoE+, ACLs, and IPv6.
The HP 3600 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network and includes a Limited Lifetime Warranty 2.0 with 3 years 24x7 phones support.
Features
Resilient and Reliable Fast Ethernet Access Layer Switches
The HP 3600 EI Switch Series delivers resiliency, security, and reliability at the enterprise edge with support for advanced Layer 3 and multicast routing.
Designed for increased flexibility and scalability, the 3600 EI Switch Series come with 24- or 48- 10/100 ports and four SFP Gigabit Ethernet ports for stacking and uplinks, a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots and models with 370W of PoE+ power.
The HP Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
Enterprise class features include Dynamic and Multicast Routing, RIP, OSPF, BGP, PIM and ECMP.
Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Powerful Quality of Service (QoS)
The HP 3600 EI Switch Series supports advanced classifier-based QoS which classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.
Provides extensive traffic prioritization with congestion actions: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ), and weighted random early discard (WRED).
Integrated and Distributed Security Enforcement
The HP 3600 EI Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.
Identity-driven security and access control with automatic VLAN assignment and per-user ACLs allows access to specific network services without risking network security.
Security features include: IP source guard, STP BPDU port protection, and RADIUS/HWTACACS.
Single View of the Network
The HP 3600 EI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON and sFlow provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Specifications
Differentiator
-
- HP 3600-24-PoE v2 EI Switch with 24 10/100Base-T PoE ports, 4 SFP GE ports 2 of which are 1000Tx combo ports
Ports
-
- (24) RJ-45 autosensing 10/100 PoE+ ports
- (4) SFP 1000 Mbps ports
- (2) dual-personality 1000 Mbps ports
Memory and processor
-
- 256 MB SDRAM
- Packet buffer size: 2 MB
- 128 MB flash
Latency
-
- 100 Mb Latency: < 6 s
- 1000 Mb Latency: < 5 s
Throughput
-
Routing/switching capacity
-
PoE capability
-
Stacking capabilities
-
Management features
-
- Imc - intelligent management center
- Command-line interface
- Web browser
- Snmp manager
Dimensions and weight
Minimum dimensions (W x D x H)
43.99 x 42.01 x 4.37 cm
Weight
10 kg
What's included
What's in the box
-
- (1) HP 3600-24-PoE+ v2 EI Switch
Warranty
-
- Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
- Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
- refer to www.hp.com/networking/warrantysummary.
- Software releases: for details on the software releases available with your product purchase
- refer to www.hp.com/networking/warrantysummary.
