All stock codes associated to this product
W5000+, BATHW5000PLUS, BATH-W5000-PLUS, 4712505093598

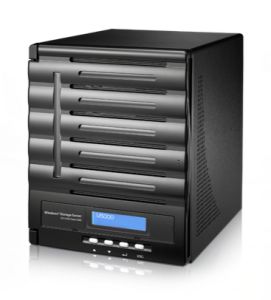

W5000+
Affordable Easy-to-Use Cloud Ready Storage
Top Storage for 1-50 Employee Business
Office 365 & Microsoft Azure: Cloud Service Integration
Active Directory Domain Services: Scalable, Secure User Management
Data Deduplication: Performance Optimization
Enhanced Boot Drive: Embedded 500GB SSHD
Windows License Included
Available with 2 GB of DDR3 RAM (W5000) or 4 GB of DDR3 RAM (W5000+)
Features
Enhanced Boot Drive: Embedded SSHD
To ensure the best performance possible, each WSS 2012 R2 Essentials copy is pre-installed on an embedded solid state drive. These boot drives are independent from the drive bays and allow for seamless setup and integration.

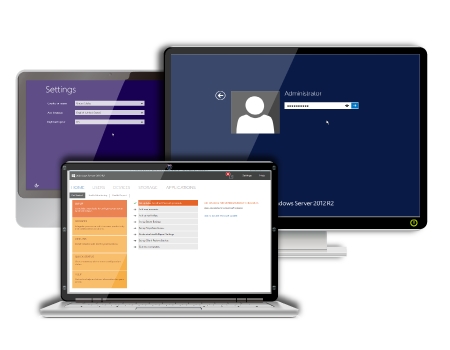

Windows Storage Server 2012 R2 Essentials
Windows Storage Server 2012 R2 Essentials is the latest version of Windows Storage Server that is designed for small businesses that want to leverage cloud services in a NAS appliance. It enables cross-premise functionality, providing small businesses with robust on-premises solution for file and print, client backup and restore, secure remote access, and identity management services, combined with optional off-premise services supported by Microsoft.
Built-in HDMI Output
Turn your NAS into the ultimate multimedia hub! An inbuilt HDMI output allows you to connect your NAS directly to your TV for media streaming and easy device management.
P2P Connectivity
Pre-installed with the Ultimate Package from Orbweb, users will be able to easily transform their Windows NAS into their own personal cloud without network configuration. Enjoy an always accessible cloud experience, while keeping your data in your hands.
Specifications
| Windows Storage Server Comparison Chart |
|
|
|
| |
Workgroup |
Standard |
Essentials |
| Ability to join a domain |
Yes |
Yes |
Yes |
| Data Deduplication |
No |
Yes |
Yes |
| BranchCache- Hosted Cache |
NO |
Yes |
Yes |
| Virtualization |
No Hyper-V |
Yes (2 VMs) |
No Hyper-V |
| Failover Clustering |
No |
Yes |
No |
Networking infrastructure
(including DNS, DHCP, and WINS) |
Yes |
Yes |
Yes |
| Windows Server Essentials Experience |
No |
No |
Yes |
Active Directory
(Domain Controller, Certificate Services,
Federation Services, Rights Management) |
No |
No |
Yes |
| Hardware Platform |
|
| Processor |
Intel Atom D2550 (1.86GHz Dual Core) |
| System Memory |
2GB DDR3(W5000)/4GB DDR3(W5000+) |
| Embedded Boot Drive |
Seagate 500GB SSHD |
| Drive Bays |
5 |
| Form Factors Supported |
2.5" / 3.5" |
| LAN Interface |
RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x4 (back x4)
USB 3.0 host port x1 (front x1) |
| LCM Module |
LCM display
4 buttons (ENTER, ESC, UP, DOWN) |
| HDMI Output |
HDMI port (back x1) |
| VGA Output |
VGA port (back x1) |
| Audio |
MIC input, Line input, Audio output |
| Disk Interface |
5 x SATA for internal
1 x eSATA for external |
| Power Supply |
200W Power Supply |
| USB UPS |
Supported |
| System Clock |
Battery-backed up system clock |
| Power Management |
Auto power on after shutdown due to power loss |
| Buzzer |
Adjustable frequency alarm |
| Buttons |
Power button
LCM button |
| Environment |
Temperature: 5C to 40C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
Tower Metal Chassis |
| Dimensions (HxWxD) |
230 x 190 x 240 (mm)/ 9.06 x7.48 x 9.45 (in) |
| Weight (Kgs) |
7.2 |
| Software Functions |
Windows Storage Server 2012 R2 Essentials |
| File System |
Native NTFS support, FAT32, EFS, ReFS |
| Disk Management |
Data Deduplication
Storage Spaces:
- Create pools of storage using industry standard hard disk drives
- Enables data redundancy with mirroring or parity
NTFS Online Scan and Repair (CHKDSK) Intelligently repairs unexpected corrupted data |
| Network Support |
Protocols : IPV6 / Multiple NICs / DNS / DHCP & WINS
Support for multiple subnets / Multiple IP addresses |
| File and Block Storage Protocol Support |
File : SMB (1.0, 2.0, 2.1, 3.0, 3.01), NFS (v2, v3, v4.1)
Block : iSCSI Target Server, iSCSI, SATA, and USB |
| Directory Services / User Management |
Seamless Active Directory integration with any existing Active Directory Domain
Authentication and authorization
Domain Controller, Certificate Services, Federation Services, Rights Management |
| Windows Client Integration via Launch Pad |
Agent deployed on client, one click connection to NAS appliance |
| Performance |
NIC Teaming: Aggregates bandwidth of multiple NICs
SMB Multi-channel: Multiple transport sessions in a single NIC |
| Secure Remote Access |
Secure Remote Desktop Services with Encryption and Authentication
Remote file access via FTP/FTPS
Remote Web Access via HTTPS |
| Licensing |
Client support for up to 50 users or devices
No Windows Server Client Access Licenses ( CALs) required
Single processor socket / Up to 4 GB of memory
P2P connectivity via Orbweb (Ultimate edition) |
| Printer Server Support / FAX and Scan |
Local printer connection: Full Windows print services support
Distributed Scan Server: Print Server and Document Services |
| Health Reporting / Notifications |
Integrated health monitoring and reporting
- Send health report to chosen email address on a customizable schedule |
| Media Pack for Streaming |
Stream music, videos, and pictures with the included Windows Server Essentials Media Pack |
| Global Language Pack |
36 Interfaces Available |
