All stock codes associated to this product
GS108PE300AJS, GS108PE-300AJS, 606449103434

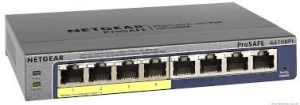

Gigabit 8-port unmanaged Plus switch
GS108PE
GS108PE-300AJS
Unmanaged plus switch "GS108PE" is, in traditional unmanaged switch, features that are required by small and medium-sized network (network management, VLAN, QoS, port mirroring) was plus, is the LAN switch on the new category. Just in various functions am plus a fraction of the cost to the price of an unmanaged switch can be use, it is affordable LAN switch.
Equipped with advanced features one step closer to non-intelligent switch
"GS108PE" is an 8-port equipped with a Gigabit Ethernet. Reliability and cost performance of height proven VLAN to NETGEAR unmanaged switch, QoS (Quality of Service), port mirroring, the loop detection, features that are most utilized, such as a broadcast control is equipped. Network management at a fraction of the investment, it is a highly cost performance makes it possible to optimize the traffic product. In addition, cable diagnostic tests are available, it will also contribute to rapid troubleshooting.
PoE power supply function equipped
"GS108PE", the Gigabit port eight of 4 port is compliant IEEE 802.3af PoE (Power over Ethernet) is a Gigabit Ethernet switch that corresponds to the power supply. Wireless access point corresponding to the PoE power receiving function, IP telephone, it is possible to supply power to a total of 53W to a network camera, it is possible to increase the degree of freedom in installation layout.
[PoE solutions proposed for small office using PoE Gigabit switch two models]

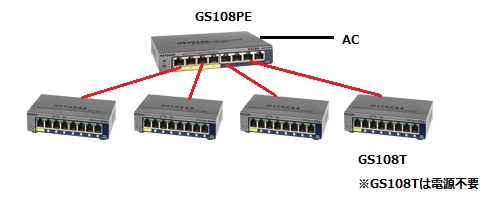

"GS108PE" will offer the best solution for PoE small office by using in combination with the PoE power receiving gigabit switch. For example, if the network configuration as described below, the power source is other than "GS108PE" for power is not needed, it is possible to reduce the installation cost.
"ProSafe Plus" utility
NETGEAR is for unmanaged Plus Switch Series, has developed a simple configuration utility. If you install the "ProSafe Plus" utility from the CD that came with, intuitive GUI on a VLAN, you can QoS, port mirroring configuration. Since even the IP address for the management required in a conventional intelligent switch is also required, and can be deployed with confidence even for beginners. In addition port-based VLAN, proper use of 802.1Q VLAN, port-based QoS, it is also possible to the 802.1p QoS, Advanced comparable intelligent switch, such as rate control.
Management of web-based
In unmanaged plus switch, in addition to the utility, you can Web-based management of the (English) is. Administration of the web-based, can be done from any on different Unlike utility network. Use the utility and web-based management, depending on the application, intuitively configure the switch, you can manage.
Products that are environmentally friendly
"GS108PE" senses the length of use state or connecting LAN cable of the port, by the "power control function" to adjust the power, low power consumption products that contribute to power saving. Also, as with other Netgear products, "GS108PE" also comply with the RoHS directive.
Compact size metal case
Compact and use a sturdy metal case. Fanless design, making it ideal for use in desktop.
Fanless design
The fanless design, are available in an environment free of noise.
"Lifetime Warranty" of confidence
"GS108PE" is "lifetime warranty" (AC adapter Warranty 2 years). Customers who purchased a while you have a product is not fixed period, since it offers a guarantee against hardware failure, you can use the product with confidence over a long period of time. See below for details.
[Bundled content]
- GS108PE switch body
- AC adapter
- Wall mounting bracket
- Installation Guide
- Resource CD
- For user registration (including hardware product warranty)
|
Specifications
|
| Data Transfer Rate |
16 Gbps |
| Device Type |
8-port Gigabit Plus Switch |
| Ports |
8x Gigabit ports, 4x PoE ports |
| Speed |
up to 2000 Mbps of dedicated, non-blocking bandwidth per port |
| Switching Fabric |
- |
| Warranty |
Lifetime (2 years on power adapter) |
| Dimensions |
158x101x29 |
| Network protocols |
IEEE 802.3, IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T |
| Weight |
0.54Kg |
| Power |
External Input: 48V/1.25A |
