All stock codes associated to this product
MZ7LM960Z, MZ-7LM960Z, HBSMZ7LM960Z, HBS-MZ-7LM960Z, 8806086860925, HBS-PM863-960G

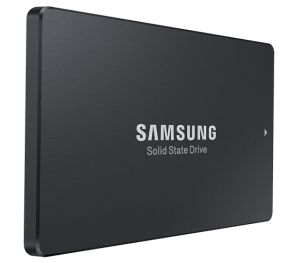

Enterprise SSD PM863 SATA 960GB
MZ-7LM960Z
AT A GLANCE
Samsungs PM863 SSDs feature our own V-NAND technology and are built from Samsung components. They are designed to deliver exceptional around the clock performance for your Data Center and Server data storage needs, focused on read-intensive applications such as streaming services, content delivery networks, web servers and cloud services.
- Featuring Samsung's own cutting-edge 32 layer V-NAND technology
- Built for sustained performance with strong IOPS consistency
- Tantalum capacitors for power loss protection
- Low latency and high quality of service (QoS)
Features
V-NAND Technology
Samsung's V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 32 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.
Sustained Performance
Built to handle the 24/7 operation and heavier workloads of data center usage, the PM863 delivers an exceptionally high level of sustained performance and consistent low latency over the life of the SSD to meet the demands for increasing data handling.
IOPS Consistency
When combined in RAID configurations with multiple drives, small variations are multiplied and lead to significant effects on performance. The PM863 delivers an exceptional level of performance above 99% in random read, as well as superior performance in random write.
Outstanding Reliability
The PM863 is optimized for server and data center environments by offering reinforced endurance, enterprise-grade power-loss protection thanks to tantalum capacitors, low power consumption and a 3-year limited warranty.
Latency and QoS
The PM863 offers extremely low latency and a high level of Quality of Service (QoS), which are both essential for data center and cloud server applications.
Advanced ECC Engine and End-to-End Data Protection
Detect signal discrepancies and proactively remedy them in real time with the Error Correcting Code (ECC) engine.
Power-Loss Protection
Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture. Using the electricity from a tantalum capacitor to provide enough time to transfer the cached data in the DRAM to the flash memory, you can be assured no loss of data.
S.M.A.R.T.
Monitor the computer drives proactively to detect and report various reliability indicators with Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).
Dynamic Thermal Guard Protection
Safeguard the SSD from overheating by automatically controlling the speed of the CPU relative to its core temperature, by throttling back the performance to prevent thermal shutdown.
Full Specifications
Type
-
Product Type
SATA 6Gb/s
-
Series
PM863
Storage
Features
-
Sequential Read Speed
520 MB/s
-
Sequential Write Speed
475 MB/s
-
Random Read Speed
99,000 IOPS
-
Random Write Speed
18,000 IOPS
-
Compatibility
LSI/ATTO/SuperMicro
-
CAS Latency
130
-
Controller
Mercury
-
NAND Flash
3bit-VNAND
-
Trim Support
Deterministic
-
RAID Support
Y (with RAID Controller)
General
Environmental Specs
Form Factor
Dimensions (W x H x D)
-
Product
3.94" x 2.76" x 0.39"
-
Inner Box Size
9.49" x 7.40" x 7.44"
-
Master Box Size
23.07" x 15.75" x 10.31"
Weight
-
Product
.14 lb.
-
Inner Box Weight
1.57 lb.
-
Master Box Weight
12.39 lb.
Warranty
-
Product
3 Years/1,400 TBW
