All stock codes associated to this product
ST2WB3, ST2-WB3
ST2-WB3
SOHOTANK ST2
High-Performance Removable Drive Storage System
Expand storage capacity up to 16TB
Hardware RAID that works seamlessly between Macs and PCs
A software RAID storage system is unable to overcome the problems associated with cross-platform usage. It is only through hardware RAID controller chipsets that users can use these hard drives concurrently in Mac or Windows computers. With the ST2's built-in SATA 6G hardware RAID controller chipset, not only does it promise high transmission speed, it also eliminates the cross-platform usage issues associated with RAID 0 or RAID 1 setups. Also, with hardware RAID, all data is computed and processed by the built-in CPU. With such advantages, your computer performance can be focused on running the software and work, instead of handling the storage device's transmission issues.
The ST2 is equipped with three configuration modes to suit every need
The ST2 has three built-in disk configuration modes: RAID 1 (Safe Mode), RAID 0 (Speed Mode), and JBOD (Two Independent Volumes) for you to choose according to your needs.
The RAID 1 function provides fully automatic backup that ensures data security
The ST2's built-in RAID 1 function controls every record that enters the system, and automatically backs it up into two copies in real-time mode, storing them into the two built-in hard disks separately. The two identical copies of data protect against data corruption, so that the data is available even if one of the hard disks is damaged, thus attaining 100% data security.
RAID 0 functionality increases storage speed and performance
The new ST2 is equipped with a RAID 0 storage mode, which means users can attain up to 330MB/s read speed with the ST2's USB3.0 transmission interface. Whether it is used for search and editing photo galleries, or for video editing and synthesis, it promises smooth and easy operation

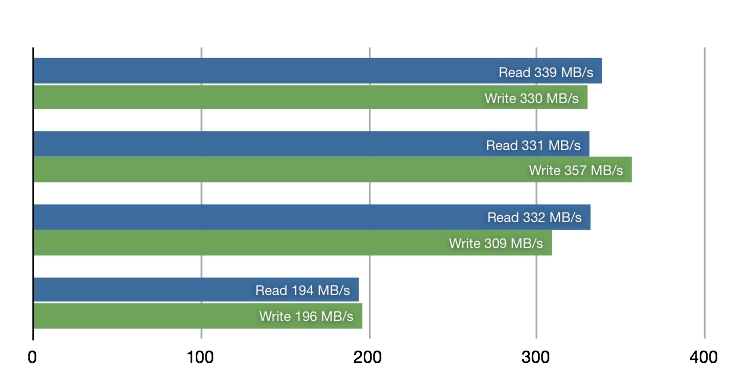

ST2 series
USB3.0 RAID 0 (SSD x 2)
KINGSTON SH103S3120G
USB3.0 RAID 1 (SSD x 2)
KINGSTON SH103S3120G
USB3.0 RAID 0 (3.5” HDD x 2)
HGST 8TB:HUH728080ALE600
USB3.0 RAID 1 (3.5” HDD x 2)
HGST 8TB:HUH728080ALE600
Removable design, use multiple hard drives flexibly
ST2 is designed with removable hard drive trays. The combination of the plug-and-play convenience of external casing with the tray's internal stability advantages offers you easy removal and installation while on the move. Both silver and black removable trays have the same structural design, thus both are compatible with all STARDOM 3.5" hard drive enclosures.
Use a unibody aluminum casing to protect your important data
Designed with sturdy, thick aluminum, the ST2 can withstand greater impact than the average product with aluminum casing, shielding your hard drive from the impact of various usage conditions. The compact aluminum casing is fitted with a large, low-noise fan to keep your hard drive from failing and eliminate the internal heat of the RAID system.
Built-in power supply
ST2 is equipped with a high-efficiency internal power supply that complies with safety standards so that users will always have enough power for different hard drive usage conditions.
Provides up to 16TB of large storage capacity for your creations
ST2 is compatible with all brands of 8TB SATA hard drives. Install two 8TB hard drives under RAID 0 mode and the system will provide 16TB of access. Independent JBOD mode can offer independent storage areas even if the hard drives are of different capacities.
Specification
Model No: ST2-WB3
Interfaces: Two Firewire 800 Ports, USB 3.0 Port ( up to 5 Gbps )
Compatible Drives: 2 x 3.5”/2.5" SATA III HDD/SSD ( up to 6 Gbps ) Support large volume up to 8TB
Storage Mode:
JBOD - Independent Mode
RAID 0 - Speed Mode
RAID 1 - Safe Mode
Cooling System: 6 cm Low noise fan
Electrical and Operating Requirements
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 60W
Operating temperature: 50 to 95 F (10 to 35 C)
Storage temperature: -4 to 116 F (-20 to 47 C)
Relative humidity: 5% to 95% noncondensing
Height: 102 mm
Width: 122 mm
Depth: 205 mm
Weight: 2.7 kg
Product Code
EAN Code : 4711132864878
UPC Code : 884826504085
Package Accessories
ST2-WB3 x 1
USB3.0 Cable x 1
Firewire800 ( 1394b ) Cable x 1
AC Power Cable x 1
Accessory kit
User Manual x 1
