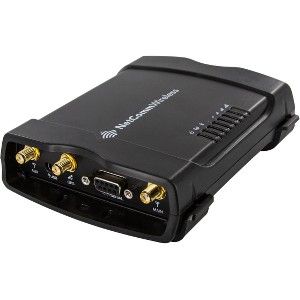

Netcomm NTC-6200-02 Industrial 3G M2M Router - 1-Port 10/100

Technical Specifications

PROCESSOR &STORAGE

• Powerful 450Mhz ARM9 processor with 64MByte DDR2 Ram

• 256MByte Flash memory storage (~120MB available on board space for user storage)

OPERATING SYSTEM

• Embedded Linux 3.6

PEAK DATA SPEED

• HSDPA/HSUPA data rates: DL: 7.2 / 14.4 Mbps, UL: 2.0 / 5.76 Mbps (Concurrent data rate: DL: 7.2 Mbps, UL: 5.76 Mbps)

• UMTS data rates: DL: max. 384 kbps, UL: max. 384 kbps

• EDGE class 12: DL: max. 237 kbps, UL: max. 237 kbps

• GPRS class 12: DL: max. 85.6 kbps, UL: max. 85.6 kbps

• CSD data transmission 14.4 kbps, V.110

CELLULAR BANDS

• UMTS/HSDPA/HSUPA: 800/850/900/2100/1900 MHz

• GSM/GPRS/EDGE: 850/900/1800/1900 MHz

CONNECTIVITY

• 1 x (RJ-45) Fast Ethernet 10/100Base-TX (100Mbps) Port with Auto MDIX

• 1 x RS232 Serial Port DB-9 female DCE supporting either 9 wire RS232 or RS485/RS422 (software selectable).

• Software controlled termination resistors for RS485

• Mini USB 2.0 OTG interface with 0.5A supply capability

• 3x Multipurpose I/O pins*

I/0 PINS*

• NAMUR (EN 60947-5-6 / IEC 60947-5-6) compatible sensor input

• Analogue 0V to 30V input

• Digital input (through measurement of voltage above/below threshold)

• Open collector output

SIM CARD READER

• Lockable Tray Reader with Push-Button-to-Release

• Supports Mini USIM/SIM Format (2FF)

RESET BUTTON

• Reset button (recessed, requiring pen/paperclip) with three functions: Reboot, reboot into recovery mode, and reset unit to factory defaults

ANTENNA CONNECTORS

• 2 x SMA connectors for 2G/3G (1 x Main and 1 x RX Diversity)

• 1 x SMA connector for GPS*

LED INDICATORS

• 8 x tri-colour LEDs. Power, Network, a GPS/customizable LED and 5x Signal Strength indicators

• Easy and clear LED status display for connection status, connected network type, and connection errors

CELLULAR

• Profile managed packet data connections

• NAT Disable for framed route configuration

• Transparent bridge mode using PPPoE to allow the router to transparently forward Public WAN IP address to a downstream device

• SIM Security Management (PIN configuration, enable and disable)

• Automatic and manual cellular band selection

• Automatic and manual operator selection

GPS*

• Embedded GPS receiver (1575.42Mhz)

• SMA Connector for external active GPS Antenna

• Active antenna voltage: 3.05V

• Maximum current: 50mA

• Short circuit protection

• Tracking sensitivity under open sky: -159dBm

• Acquisition sensitivity under open sky: -149dBm

• Cold start sensitivity: -145dBm

• Time to first fix (TTFF): Cold 25s, Warm 10s, Hot 3s
• Supports NMEA-0183 (v2.3)

• Redirect NMEA stream to serial or forward over IP

• Odometer reading available via Web-UI, CLI and SDK

NETWORK &ROUTING

• Static Routing, RIP (v1/v2), Port Forwarding and DMZ

• Dynamic DNS

• VRRP for redundant router failover

• DHCP Server, including:
  •
  • Address reservation by MAC address

  • Custom DNS server definitions

  • DHCP Relay

  • DHCP list display in Web-UI

  • Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP, Option 150, Option 160)

• Data Stream Manager providing ability to create mappings between input and output ports (e.g. Serial Port, SMS, GPS, USB) and perform required translation or data processing by each virtual tunnel

• Modbus Server TCP/IP Gateway and Client TCP/IP Agent with up to 247 slaves connected to the Serial TCP/IP Gateway

• Modbus RTU/ASCII frames support

VPN

• PPTP Client for VPN connectivity to remote PPTP VPN Server

• IPSec tunnel termination (for up to 5 tunnels)

• GRE Tunnelling

• OpenVPN (Client, Server and P2P)

ADMINISTRATION &CONFIGURATION

• Web-based User Interface (HTTP/HTTPS) for full device status and configuration

• Password protected configuration file backup and restore for quick device configuration and device cloning

• Telnet/SSH Command Line Interface for status monitoring, configuration and control

• SNMP v1/v2 including cellular specific MIB, config and firmware download

• TR-069 Client for remote device configuration, configuration backup and restore, and firmware upgrade

• SMS Client (Send/Receive) including inbox, outbox

• Ping monitor watchdog (Reset connection on repeated ping failure)

• Diagnostic Log Viewer (remote and local)

• System Status and Security Logs

• NTP Server Support for network time sync of devices system clock

• Device User Guide stored on the device and accessible via the Web-based User Interface (HTTP/HTTPS)

• Advanced Diagnostics and Control via SMS
  •
  • Query status information such as Signal Strength, WAN IP, Uptime, and many more

  • Configure device remotely via SMS such as APN, authentication settings, and many more

  • Execute commands via SMS such as reboot, reset to defaults, go offline, and many more

  • Secure SMS management using sender whitelisting and password management

  • SMS acknowledgement replies for queries and commands

FIRMWARE MANAGEMENT

• Firmware Upgrade locally via LAN or remotely Over-The-Air (HTTP/HTTPS, SNMP, TR-069 or LWM2M)

• Multiple firmware image storage on device and dynamic install

• Triggered firmware upgrade via SMS (initiate download &install from HTTP/HTTPS)

SOFTWARE DEVELOPMENT KIT

• Develop and install custom software applications

• Open Linux standard development environment

• Develop applications/scripting in standard ANSI C/Shell script and LUA

• Package manager built into Web-UI for Application installation/removal

• API (C, LUA and Shell libraries) to the units internal Runtime Database to allow full status monitoring configuration and control of the device from custom applications

TEMPERATURE

• Module Operating Temperature Range: -40C ~ +85C

• Storage Temperature Range: -40C ~ +85C
• Operating Humidity: 0-95%


POWER SUPPLY

• Power input and I/Os via 6 way termination block receptacle

• Field terminable power input via screw type terminal block included

• DC Power (8 - 40V DC)

• 1 x Dedicated ignition input on 6 way connector

• Power consumption 6W, recommended DC supply via terminal block (12V 1.5A)

• Vehicle compatible protection on DC Input Jack. (ISO7637 standard)

DIMENSIONS, WEIGHT &MOUNTING

• Device dimensions (excluding external antenna): 143mm (L) x 107mm (W) x 34mm (D) / 221g (254g with bracket)

• Wall mount support in multiple orientations via embedded mounting holes

• DIN Rail mount support via plastic bracket included in box (Top hat section rail TH 35 IEC60715)

REGULATORY COMPLIANCE

• FCC
• PTCRB
• CE
• GCF
• WEEE
• RoHS
• RCM
• IC
• E-mark
• TRA
• iDA
• NBTC
• SIRIM
• SDPPI
• IP41
