All stock codes associated to this product
RE580D, NWTLRE580D, NWTL-RE580D, 6935364092344
AC1900 Wi-Fi Range Extender RE580D
- Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1.9Gbps Wi-Fi speeds
- 3 dual band external antennas and 700mW high-powered amplifiers eliminate dead zones and greatly extend your existing wireless coverage
- Beamforming technology delivers highly targeted and efficient wireless connections
- 5 Gigabit Ethernet ports provide gigabit speed for wired connections
- Dual core 1GHz processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
- High Speed mode creates a lightning fast wireless connection for bandwidth-intensive tasks
- Works with any Wi-Fi router or wireless access point
Ultimate Wireless Extension
AC1900 Wi-Fi Range Extender
RE580D
Expand any Wi-Fi Network by up to 10,000sq. ft.
With three external, dual band antennas and 700mW high-powered amplifiers, the RE580D can establish a stable wireless connection to any Wi-Fi router and augment the network's coverage by up to 10,000 square feet. The dual core 1GHz processor provides maximum Wi-Fi performance, keeps your smartphones and tablets connected as you move around your home.
- Dual Core 1GHz Processor
- 700mW Output Power
- 3 Dual Band Antennas
- Works with Any Wi-Fi Router

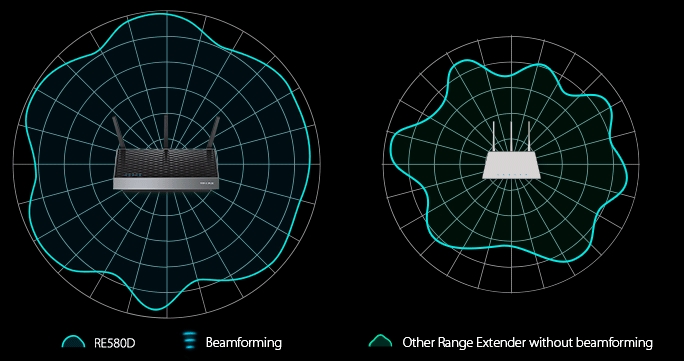

Beamforming Technology for Accurately Focused Wi-Fi
Beamforming Technology focuses the Wi-Fi transmission in the direction of your connected devices, concentrating the signal where you need it the most. Superior Wi-Fi bandwidth utilization increases range and provides targeted, efficient Wi-Fi connections.
Maximum extended Wi-Fi coverage specification is based on performance test results. Actual Wi-Fi coverage may vary due to different environment, building material and wireless interferences.
1300Mbps
600Mbps
802.11n
802.11ac
5GHz
2.4GHz
Simultaneous Dual Band Wi-Fi - Speeds of up to 1900Mbps
The RE580D utilizes the 802.11ac Wi-Fi standard to deliver dual band Wi-Fi connections with combined speeds of up to 1.9Gbps (1.3Gbps on the 5GHz band and 600Mbps on the 2.4GHz band). This impressive speed means you can count on the RE580D to provide reliable connections for bandwidth-intensive tasks, such as HD/4K video streaming, lag-free gaming, and large file downloads.
Smart TV
Computer
Game console
Amazing online experience for wired devices
With five built-in gigabit Ethernet ports, the RE580D can provide fast, stable connections to all of your favorite wired devices, including smart TVs, game consoles, DVs, and Blu-ray players.
High Speed Mode
The RE580D can use both the 5GHz and 2.4GHz bands to create a single, lightning fast connection by transmitting data on onechannel and receiving data on the other. This is especially beneficial when performing bandwidth-intensive tasks, such as HD video streaming or online gaming.
A Design For Easy Use
The RE580D features an intuitive, user-friendly design that makes installation, configuration, and positioning easier than ever.
LED On/Off button Features Time
Schedule Function
Sleep without light disturbing you.
Turn the LED light on and off automatically electricity.
Flexible Display
The RE580D and its display can be switched to vertical orientation so that you can enjoy the perfect combination of aesthetics and functionality.
Specifications
| HARDWARE FEATURES |
| Interfaces |
5 * 10/100/1000Mbps Ethernet Port (RJ45) |
| Button |
RE (Range Extender) Button, Reset Button, LED Button, Power Button |
| Dimensions (W X D X H) |
9.5 X 6.4 X 1.7 in. (242 X 162 X 44mm) |
| Antenna |
3 external dual band antennas |
| External Power Supply |
12V/2.5A |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/b/g/n/ac |
| Frequency |
2.4GHz & 5GHz(11ac) |
| Signal Rate |
5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mpbs |
| Reception Sensitivity |
5GHz:
11a 6Mbps: -92dBm
11a 54Mbps: -74dBm
11ac HT20 MCS8:-66dBm
11ac HT40 MCS9: -62dBm
11ac HT80 MCS9: -58.5dBm
2.4GHz:
11g 54M: -76dBm
11n HT20 MCS7: -73dBm
11n HT40 MCS7: -70.5dBm |
| Transmit Power |
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm |
| Wireless Modes |
Range Extender |
| Wireless Functions |
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
High Speed Mode for great speed for HD Gaming and video
Access Control
LED Control
Domain Login Function |
| Wireless Security |
64/128-bit WEP
WPA-PSK / WPA2-PSK |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
AC1900 Wi-Fi Range Extender
RJ-45 Ethernet Cable
3 detachable antennas
Power adapter
Quick Installation Guide |
| Box Dimensions (W X D X H) |
13.4 X 9.4 X 3.0 in. (340 X 240 X 76mm) |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0C~30C (32F~86F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
