As more and more PoE PD devices need higher power input and long-distance transmission, PLANET has released a new Power over Ethernet Media Converter,GTP-80xseries. With the brand-newIEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following

key features:

IEEE 802.3at / IEEE 802.3af PoE standard compliance
Supports a maximum of 30 watts output power
10/100/1000Mbps duplex mode supports on 1000BASE-T port
1000Mbps Fiber-Optic support



The GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converterdesigned specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom)network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GTP-80x High Power over Ethernet converter seriesis an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.

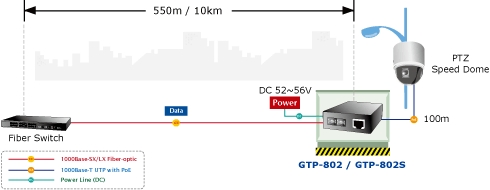

The maximum distance between the PoE PSE and PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000BASE-T signal to 1000BASE-X one and provide the diverse options of fiber connecting types to meet different network applications.

GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m and 550m
GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
GTP-805A:LC Fiber Interface, supports Multi / Single Mode SFP module, Distance up to 120km max. (Varting on SFP module)
With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.


The GTP-80x series provides 52V DC power over Ethernet cables -- just insert DC voltage into Cat.5/5e/6 cable, allowing the cable between the PoE splitters (POE-151S / POE-152S / POE-162S) to transfer data and power simultaneously for up to 100 meters. Then it will spilt the digital data and the power into two kinds of selectable DC outputs (5V DC / 12V DC) or (12V DC / 24V DC).Thus, it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP camera and wireless AP deployment from restrictions of power outlet locations.





Interface
Copper	10/100/1000BASE-T Ethernet TP interface Auto-negotiation, Auto MDI/MDI-X with PoE injector function
Fiber	GTP-802 Multi-mode: 50/125um or 62.5/125um optic fiber GTP-802S Single-mode: 9/125um optic fiber GTP-805A Varying on SFP Module
Fiber Port Type (connector)	GTP-802: SC GTP-802S: SC GTP-805A: SFP(LC)
Cable Distance	GTP-802: 220m & 550m GTP-802S: 10km GTP-805A: Varying on SFP Module
Optical Frequency	GTP-802: 850nm GTP-802S: 1310nm GTP-805A: Varying on SFP Module
Launch Power(dBm)	GTP-802: Max. -4 Min. -9.5 GTP-802S: Max. -3 Min. -9.5 GTP-805A: Varying on SFP Module
Receive Sensitivity	GTP-802: -13.5 GTP-802S: -14.4 GTP-805A: Varying on SFP Module
Maximum Input power	GTP-802: -18 GTP-802S: -20 GTP-805A: Varying on SFP Module
Power Over Ethernet
PoE Output	IEEE 802.3af Power over Ethernet standard IEEE 802.3at Power over Ethernet enhancements standard
Power Output	PoE 52V DC, max. 30 watts
PoE Power Supply Type	Mid-Span
Power Pin Assignment	4/5(+), 7/8(-)
PoE Power Budget	30 watts
Hardware Specifications
Switch Architecture	Store-and-Forward
Flow Control	Back pressure for half duplex mode IEEE 802.3x Pause frame for full duplex mode
Maximum Frame Size	9K
LED	System: PWR Fiber 1000BASE-X: LNK / ACT TP 10/100/1000BASE-T: LNK / ACT PoE: Power in-use
Dimensions (W x D x H)	70 x 94 x 26 mm
Weight	0.21kg
Power Supply	52V DC, 0.58A External AC-to-DC adapter
LFP mode	Enable: when either TP port or Fiber port is broken, automatically shut down the other port Disable: Link LED indicators still on if the other ends connection is broken
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Protocols and Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber-Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet. IEEE 802.3at Power over Ethernet enhancements standard
Cables	TP: Cat 5 / 5e / 6 UTP cable Fiber: Multi-mode: 50/125um or 62.5/125um optic fiber Single-mode: 9/125um optic fiber
Environment
Temperature	0 ~ 50 degrees C
Humidity	5 ~ 90% (non-condensing)
