All stock codes associated to this product
SHPM2280P2H/480G, 740617237481
Predator PCIe

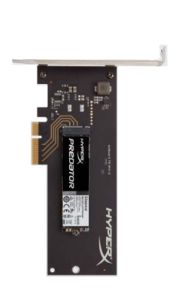

SHPM2280P2H/480G (with HHHL adapter)
Ferocious performance for serious users.
HyperX Predator SSD offers large capacities and incredible speeds with both compressible and incompressible data to take your system to the edge. Faster than SATA-based SSDs, it delivers speeds of up to 1400MB/s read and 1000MB/s write for ultra-responsive multitasking and an overall faster system.
It features a PCIe Gen 2.0 x4 interface for high performance and an M.2 form factor to fit the next generation of desktops with an M.2 PCIe slot. A Half-Height, Half-Length (HHHL) adapter that works with many existing motherboards with at least a PCIe x4 slot open is available. The HHHL adapter comes with both standard and low-profile brackets to fit in slim-profile desktop builds.
Prey on the competition for years to come. HyperX Predator SSD comes with a three-year warranty and free technical support to keep you winning.
Powered by Marvell controller
PCIe Gen 2.0 x4 interface in M.2 form factor (with optional Half-Height, Half-Length adapter)
Speeds of up to 1400MB/s read and 1000MB/s write
FEATURES/BENEFITS
Fast - PCIe connection provides higher speeds than SATA-based solid-state drives for the ultimate computing experience
Blazing performance - ultra-responsive multitasking and overall faster system
Reliable - rugged and durable to take your system to the edge
Form factor - M.2 with optional Half-Height Half-Length adapter to fit in both new and older motherboards
Guaranteed - three-year warranty and free technical support
SPECIFICATIONS
Form factor: M.2 2280
Interface: PCIe Gen 2.0 x4
Capacities: 240GB, 480GB
Controller: Marvell 88SS9293
Baseline performance: 4
Compressible data transfer (ATTO)
240GB 1400MB/s read and 600MB/s write
480GB 1400MB/s read and 1000MB/s write
Incompressible data transfer (AS-SSD and CrystalDiskMark)
240GB 1290MB/s read and 600MB/s write
480GB 1100MB/s read and 910MB/s write
IOMETER maximum random 4k read/write
240GB up to 160,000/ up to 119,000 IOPS
480GB up to 130,000/ up to 118,000 IOPS
Random 4k read/write
240GB up to 120,000/ up to 78,000 IOPS
480GB up to 117,000/ up to 70,000 IOPS
PCMARK Vantage HDD Suite score
240GB 138,000
480GB 139,000
PCMARK 8 storage bandwidth
240GB 331MB/s
480GB 336MB/s
PCMARK 8 storage score
240GB 5,015
480GB 5,017
Anvil total score (incompressible workload)
240GB 6,500
480GB 6,700
Power consumption
1.38W idle / 1.4W avg / 1.99W (MAX) read / 8.25W (MAX) write
Storage temperatures
-40C~85C
Operating temperatures
0C~70C
Dimensions
80mm x 22mm x 3.5mm (M.2)
180.98mm x 120.96mm x 21.59mm (with HHHL adapter standard bracket)
181.29mm x 80.14mm x 23.40mm (with HHHL adapter low-profile bracket)
Weight
10g (M.2)
73g (with HHHL adapter standard bracket)
68g (with HHHL adapter low-profile bracket)
Vibration operating
2.17G peak (7800Hz)
Vibration non-operating
20G peak (102000Hz)
Life expectancy
1 million hours MTBF
Warranty/support
3-year warranty with free technical support
Total Bytes Written (TBW)
240GB: 415TB 1.6 DWPD
480GB: 882TB 1.7 DWPD
