All stock codes associated to this product
DMG112A, DMG-112A, DL17470, 790069414459
Wireless N300 USB Range Extender
DMG-112A
- Wireless N300 technology
- Universal Range Extender works with any brand device
- D-Link One-Touch AP Configuration
- USB connector design allows you to connect to any USB port for power
- One-Touch Mobile app support
- USB Power Adapter supplied for connection to Power Outlet
Overview
The DMG-112A Wireless N300 USB Range Extender is a portable USB plug-in range extender that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. By simply downloading the D-Link One-Touch app and installing the DMG-112A, it can intelligently communicate with homes wireless devices so you receive the best connection at all times.
Extend Your Wireless Network
Increase the coverage of your home Wireless network with the sleek and easy-to-use DMG-112A Wireless N300 USB Range Extender. The AutoZone technology communicates with your router and other range extenders in your home network to ensure your wireless devices have a seamless connection when you move throughout your home. The DMG-112A also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a fast and reliable wireless connection.

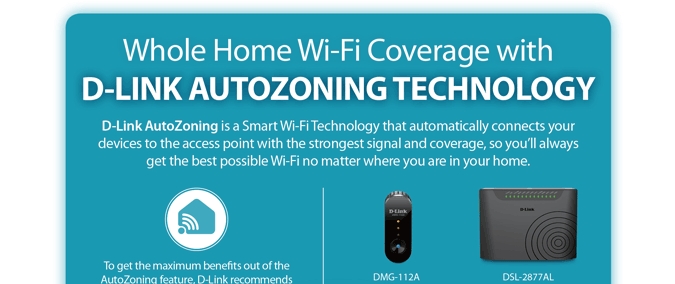

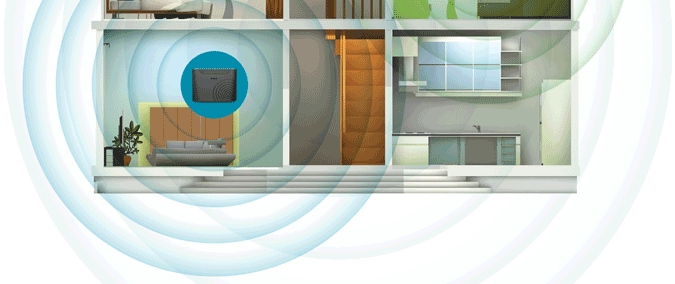

What is AutoZoning# technology?
AutoZoning technology automatically switches Wi-Fi devices to the access point with the strongest coverage, so youll always get the best possible Wi-Fi, no matter where you are in your home.
The SSID cloning feature means you will now have just the one wireless network (instead of two), that will seamlessly connect you to the better Wi-Fi connection.
Easy to Set Up, Easy to Use
Setting up the Wireless N300 USB Range Extender is simple. You can use the supported One-Touch app on your iOS or Android mobile device to easily set up the DMG-112A without needing a computer. Alternatively, you can use One-Touch configuration by pushing the WPS push-button on the DMG-112A and on the router or AP you want to extend, and the DMG-112A will automatically configure itself for you.
Compact, Convenient Design
The DMG-112A is a compact device that is ideal for use at home or a small office, as it does not take up much space and is USB powered. The USB plug allows you to plug it into any USB powered outlet, freeing up your power outlets and saving you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.
Currently supported when used in conjunction with the DSL-2877AL.
Technical Specifications
General
Device Interfaces
802.11n/g/b wireless LAN
Combined WPS/Reset button
LEDs
Status/WPS
Signal strength
Standards
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
Antennas
Two internal antennas
Functionality
Wireless Security
Wi-Fi Protected Access (WPA/WPA2)
WEP 64/128-bit encryption
WPS (PBC)
Advanced Features
D-Link One-Touch
Extender Setup
Device Management
Supports D-Link One-Touch Mobile app for iPhone, iPad, iPod Touch, and Android mobile devices
Web UI
Physical
Dimensions
24 x 60 x 26 mm
Weight
20 grams
Power
Input: 5 V, 1A
Temperature
Operating: 0 to 40 C
Storage: -20 to 65 C
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications
FCC
CE
NCC
CCC
CB
Part Number
Description
DMG-112A
Wireless N300 USB Range Extender
