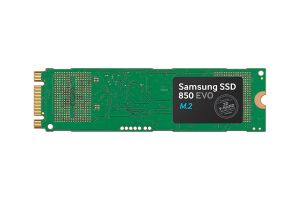

Samsung 250GB M.2 SATA Solid State Drive - M.2(2280), SATA-III, 3D V-NAND - 850 EVO Series
  • 540MB/s Read, 520MB/s Write

IMG 1 of 1
No Longer Available
Part Number:
399667
(?) Brand:
Samsung Web Site
Manuf No:
MZ-N5E250BW
MZN5E250BW
Shipping Weight:
0.1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MZN5E250BW, MZ-N5E250BW, HBS850M2250GB, HBS-850M2-250GB, 8806086587310, 8806086587334

850 EVO SATA III M.2 250 GB SSD


MZ-N5E250

Features

  • Get higher density with innovative 3D V-NAND
  • Optimise your computing with TurboWrite
  • Increase memory storage with the RAPID mode
  • Benefit from greater endurance and reliability

What is 3D V-NAND and how does it differ from existing technology?

Samsungs unique and innovative 3D V-NAND flash memory architecture is a breakthrough in overcoming the density limitations, performance and endurance of todays conventional planar V-NAND architecture. 3D V-NAND stacks 32 cell layers vertically over one another rather than decreasing cell dimensions and trying to fit itself onto a fixed horizontal space. As a result, the technology provides higher density and better performance utilising a smaller footprint.

What is 3D V-NAND and how does it differ from existing technology?

Optimise computing with TurboWrite technology for unrivalled read / write speeds

Achieve ultimate read / write performance to maximise your everyday computing experience with Samsungs TurboWrite technology. Compared to the 840 EVO, the 850 EVO shows an increased overall user experience of approximately 13%*, partly thanks to the now 2x faster random write speeds** The 850 EVO delivers top-notch performance in its class, with sequential read and write speeds of 540 MB/s and 520 MB/s, respectively. Enjoy optimised random performance in all Queue Depths (QD) for client PC usage scenarios.

Optimise computing with TurboWrite technology for unrivalled read / write speeds

PCmark7 (250 GB): 6700 (840 EVO) < 7600 (850 EVO) ** Random Write (QD32,120 GB) : 36000 IOPS (840 EVO) < 88000 IOPS (850 EVO)

Increase memory storage with RAPID mode

The Samsung 850 EVO M.2 is a speed machine. With the latest Samsung Magician software, you can activate the RAPID mode to tap unused PC memory (DRAM) and use it as cache storage up to 25% of the total DRAM capacity. With the dramatic increase in storage, data processing speeds and random QD can be up to 2x faster* under the RAPID mode.

Increase memory storage with RAPID mode

PCMARK7 RAW (250 GB): 7500 < 15000 (RAPID mode)

Endurance and reliability bolstered by 3D V-NAND technology

The 850 EVO delivers guaranteed endurance and reliability by doubling the Total Bytes Written (TBW) compared to the previous generation of 840 EVO* along with an industry-leading 5 year warranty. Through improving performance by up to 30%, the 850 EVO allows sustained performance** making it one of the most dependable storage solutions.

Endurance and reliability bolstered by 3D V-NAND technology

TBW: 43 (840 EVO) < 75 (850 EVO 120 / 250 GB), 150 (850 EVO 500 / 1 TB) ** Sustained Performance (250 GB) : 3300 IOPS (840 EVO) < 6500 IOPS (850 EVO), Performance measured after 12 hours Random Write test

Energy efficiency backed by 3D V-NAND

The 850 Evo introduced the 2 mW device sleep mode feature in the 840 EVO, and now the 850 EVO is introducing cutting-edge 3D V-NAND Technology (which consumes 50% less energy than Planar 2D V-NAND), giving you 25% more power efficiency during write operations.

Power (250 GB): 3.2 Watt (840 EVO) > 2.4 Watt (850 EVO)

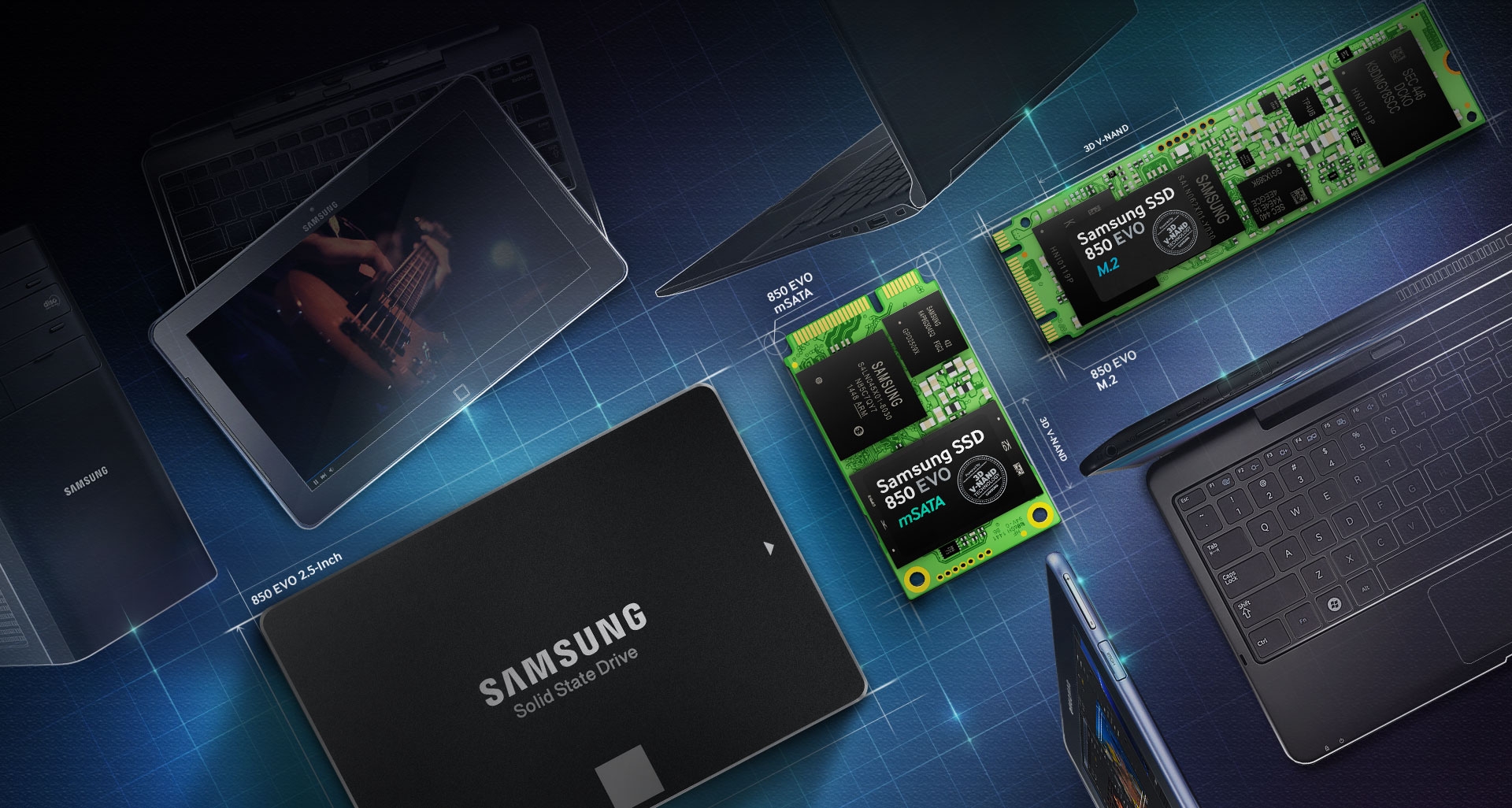

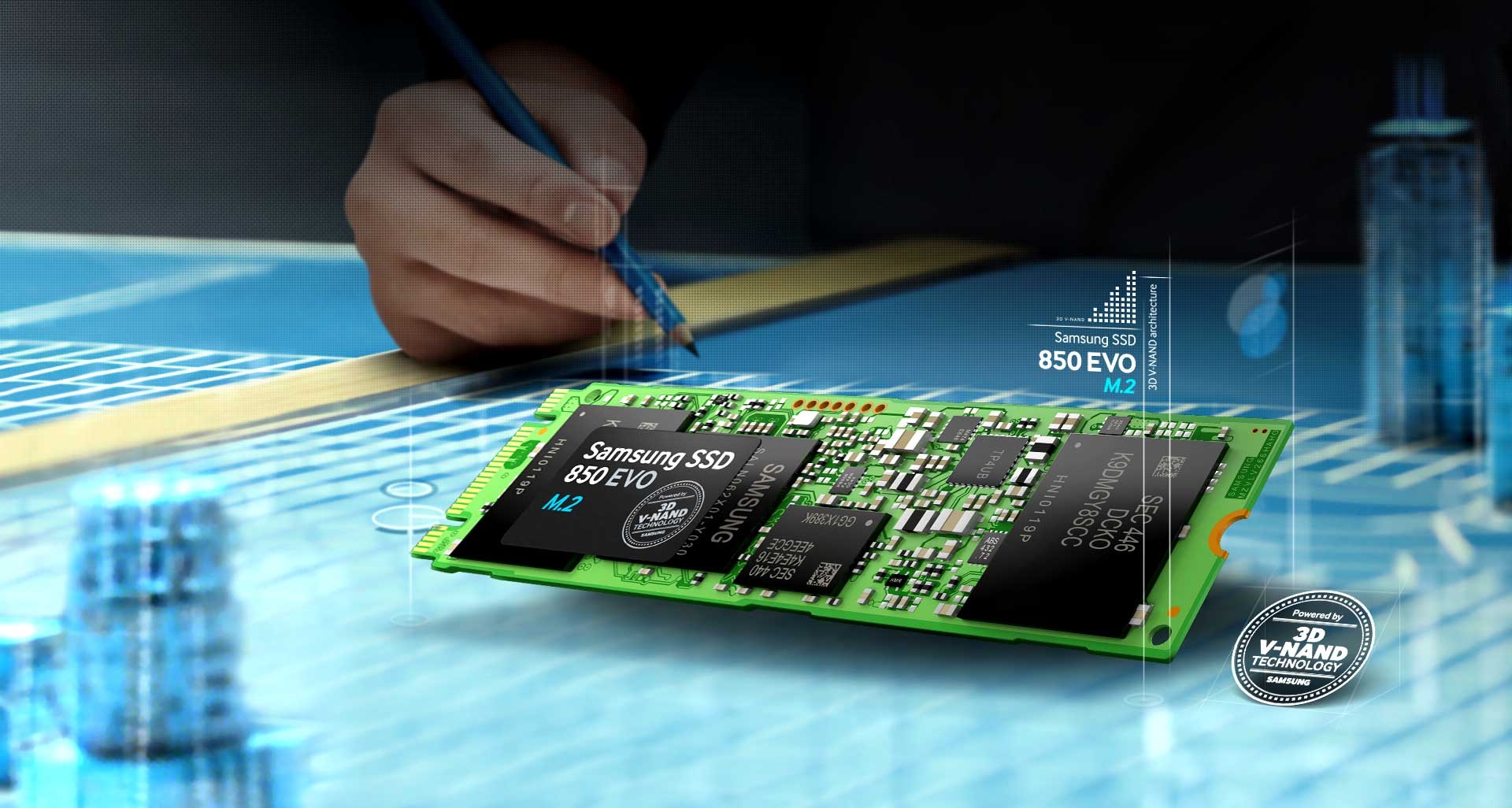

Flexible form factor for use in different types of devices

The versatile 850 EVO has you covered no matter which connector type or physical slot size your device supports. The 850 EVO M.2 SATA shares a similar slim and narrow footprint like M.2 PCIe type SSDs, but supports the SATA interface. Its perfect for faster computing experiences on todays desktops, laptops, and especially ultra-thin space-constrained tablet PCs.

Flexible form factor for use in different types of devices

Secured data through advanced encryption methods

The 850 EVO comes fortified with the latest hardware-based full disk encryption engine. The AES 256-bit encryption and TCG Opal 2.0 encryption secure data without any performance degradation. It is also compatible with IEEE-1667 for Microsofts eDrive so that your data is protected at all times for your peace of mind.

Secured data through advanced encryption methods

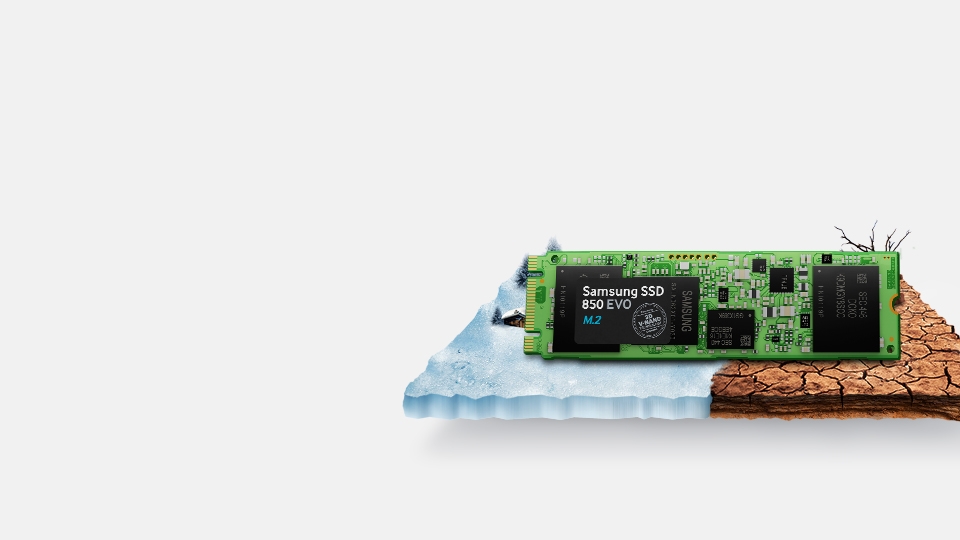

Protection against overheating with Dynamic Thermal Guard

The 850 EVO Dynamic Thermal Guard feature constantly and automatically monitors and maintains the ideal temperature for the drive to operate optimally.

Protection against overheating with Dynamic Thermal Guard

Simple and quick migration management

With the One-Stop Install Navigator, Samsung Data Migration and Magician software are installed simultaneously for your convenience to ensure that your SSDs settings are optimised for efficient data transfer.

Simple and quick migration management

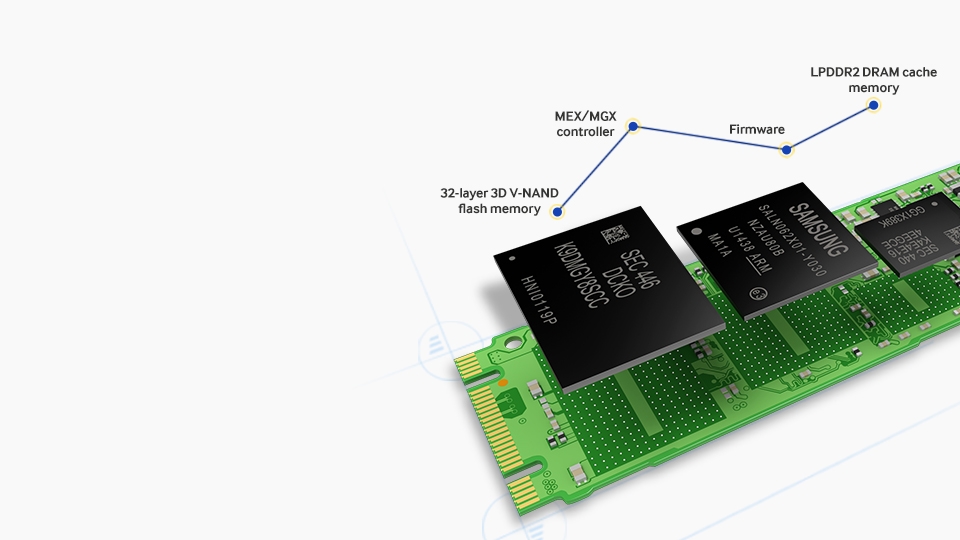

Enjoy an integrated in-house solution including top-quality components

As the industry SSD leader, Samsung is uniquely positioned to design, develop and manufacturer exclusively in house, resulting in a seamlessly integrated and fully optimised solution for enhanced performance and eliminating the risk of component compatibility errors.

Enjoy an integrated in-house solution including top-quality components

Technical Specifications:

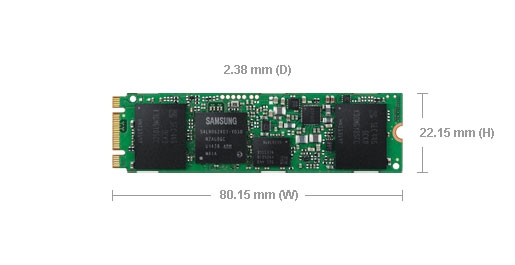

Dimension of MZ-N5E250BW

General Feature

  • Application

    Client PCs

  • Capacity

    250 GB (1 GB = 1 Billionbyte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Form Factor

    M.2

  • Interface

    SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

  • Dimension (WxHxD)

    Max 80.15 x Max 22.15 x Max 2.38 (mm)

  • Weight

    Max 6.8 g

  • Storage Memory

    Samsung 32 layer 3D V-NAND

  • Controller

    Samsung MGX Controller

  • Cache Memory

    Samsung 512 MB Low Power DDR3 SDRAM

Special Feature

  • TRIM Support

    TRIM Supported

  • S.M.A.R.T Support

    S.M.A.R.T Supported

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • Encryption Support

    AES 256 bit Encryption (Class 0), TCG / Opal, IEEE1667 (Encrypted drive)

  • WWN Support

    World Wide Name supported

  • Device Sleep Mode Support

    Yes



Performance

  • Sequential Read

    Up to 540 MB/sec Sequential Read * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 500 MB/sec Sequential Write * Performance may vary based on system hardware & configuration

  • Random Read (4 KB, QD32)

    Up to 97000 IOPS Random Read * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD32)

    Up to 89000 IOPS Random Write * Performance may vary based on system hardware & configuration

  • Random Read (4 KB, QD1)

    Up to 10000 IOPS Random Read * Performance may vary based on system hardware & configuration

  • Random Write (4 KB, QD1)

    Up to 40000 IOPS Random Write * Performance may vary based on system hardware & configuration

Environment

  • Average Power Consumption (system level)

    *Average: 2.4 Watts *Maximum: 3.7 Watts (Burst mode) *Actual power consumption may vary depending on system hardware & configuration

  • Power consumption (Idle)

    Max. 50 mWatts * Actual power consumption may vary depending on system hardware & configuration

  • Allowable Voltage

    3.3V 5% Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Operating Temperature

    0 - 70 Operating Temperature

  • Shock

    1500 G & 0.5 ms (Half sine)

Accessories

  • Installation Kit

    Not Available

Software

  • Management SW

    Magician Software for SSD management

Warranty

  • Warranty

    5 Years Limited Warranty or 75 TBW Limited Warranty
