All stock codes associated to this product
TOUCHP5, NWTLTOUCHP5, NWTL-TOUCHP5, 6935364092290
AC1900 Touch Screen Wi-Fi Gigabit Router Touch P5
- Game and Stream with AC1900 Speed – Stream 4K HD video and game online without lag over dual 2.4GHz and 5GHz bands
- Intuitive Touchscreen Display – Effortlessly set up and manage your network settings
- Superior Coverage – Maximizes Wi-Fi range with three external antennas with high-powered ampliÂfiers
- Beamforming – Focuses Wi-Fi towards devices to form stronger connections
- 1GHz Dual-Core Processor – Handles multiple tasks at once without interruption
- Multi-Purpose Design – Serves as a router, repeater, or access point
Overview
Control Your Wi-Fi with the Power of Touch
AC1900 Touch Sreen Wi-Fi Gigabit Router
Touch P5
A Touchscreen Router with Effortless Controls
The Touch P5 combines the power of Wireless AC technology with the convenience of an intuitive touchscreen display. The router can be set up with just a few taps on its elegant, responsive touchscreen. The entire set-up process can be completed on the router itself, eliminating the need for computer, tablet, or smartphone based configuration.
No Computer Needed
No Tablet Needed
No Smartphone Needed

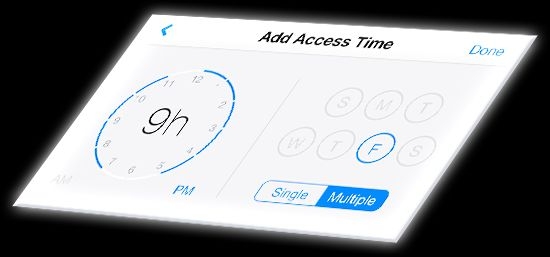

Parental Controls
Easily establish the strong, reliable policies that will keep you and the ones you love safe online. Access policies can be fine tuned and customized for specific users, ensuring that everyone in the house can have the connection that is right for them.
Devices Control
Choose the devices that will be able to access your network and take control of how and when they connect to the Internet.
Wireless Settings
Personalize your Wi-Fi settings, like hiding your network from view.
Mode Selection
The Touch P5 was designed to be as versatile as possible and has the ability to function as a router, a repeater, or an access point.
Router
Mode
Repeater
Mode
Access Point
Mode

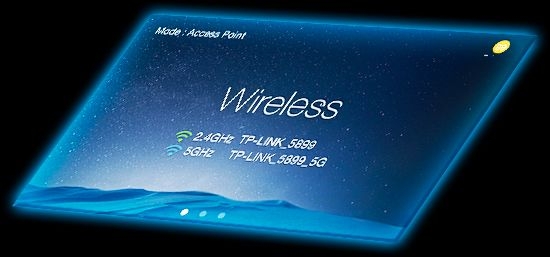

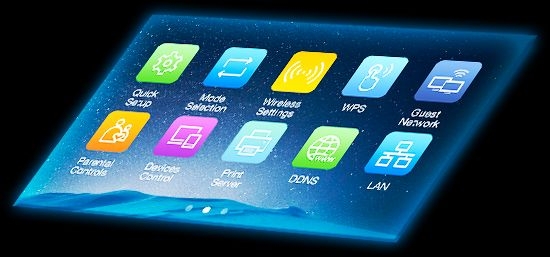

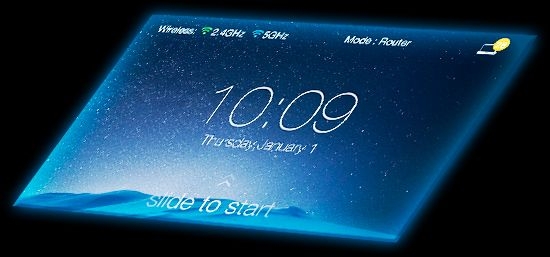

A Simple, Intuitive Interface

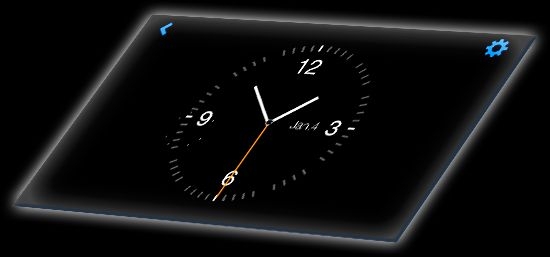

With its clean, user-friendly design, the Touch P5's display interface provides an ideal portal through which to quickly access and manage your network settings. Now you can modify parental controls, add/remove devices from your network, and change guest access privileges with a few taps on your router's display. For added functionality, the touchscreen display can also function as a clock, when not in use.
Lightning-Fast Wi-Fi Technology
The Wireless AC standard establishes a dual band network, allowing you to connect even more devices while still enjoying speeds of up to 1900Mbps. This means that you can enjoy Ultra High Definition 4K streaming video and lag-free online gaming on the 5GHz band, all while shopping, sending email, and browsing your favorite sites on the 2.4GHz band.
5GHz 1300Mbps Wi-Fi
2.4GHz 600Mbps Wi-Fi
5GHz
2.4GHz
Superior Wi-Fi Coverage for Your Home
Three external antennas with high-powered amplifiers greatly increase the Touch P5’s range and signal stability. Beamforming technology further improves the router’s coverage by helping it locate wireless devices to form stronger, more reliable connections, even with mobile devices moving from room to room.

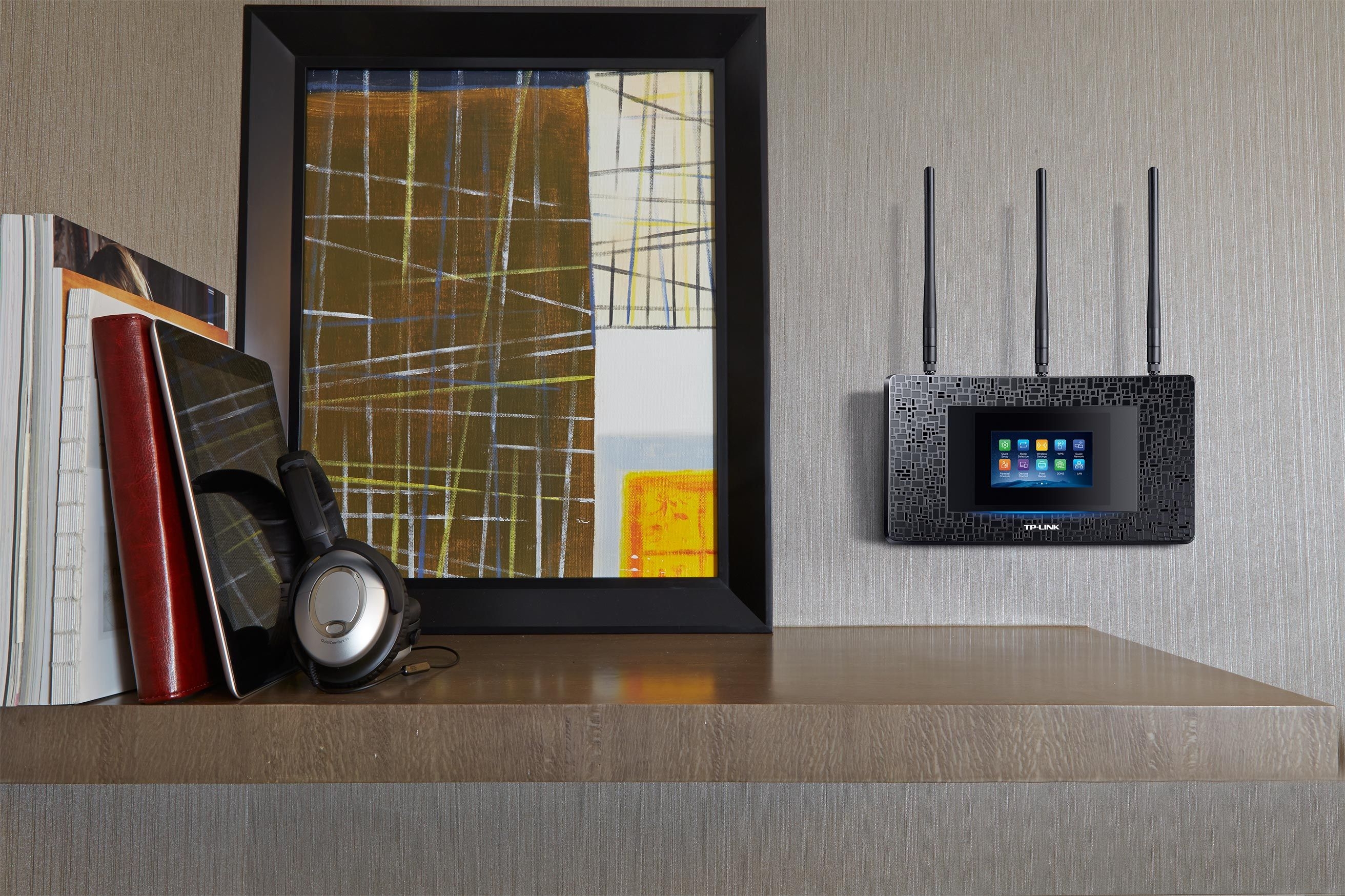

Exquisite aesthetics, perfect for display in any location
The elegant design of the body gives your technology an aura of natural continuity in any environment. With the Touch P5, you can proudly integrate a gracefully designed router into your personal decor.
Specifications
Signal: AC1900
5GHz: Up to 1300Mbps
2.4GHz: Up to 600Mbps
Processing
1GHz Dual Core CPU
Touchscreen
4.3 Inch Capacitive Touchscreen
Antennas
3 External Antennas with High Powered Amplifiers and Beamforming
WAN/LAN
4 Gigabit Ethernet Ports and 1 Gigabit WAN Port
USB
1 USB 3.0 Port and
1 USB 2.0 Port
Compatibility
802.11ac
802.11a/b/g/n
| HARDWARE FEATURES |
|---|
| Interfaces |
4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
1 USB 3.0 Port + 1 USB 2.0 Port |
| Button |
Power On/Off Button
Reset Button |
| Dimensions (W X D X H) |
11.2 x 6.2 x 2.1 in. (284 x 157 x 52 mm) |
| Antenna |
3 Dual Band Detachable Antennas |
| External Power Supply |
12V/3.3A |
| Touch Screen |
Screen Type: Capacitive
Screen Size: 4.3 inch
Screen Resolution: 128 ppi |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz + 256QAM |
| Frequency |
2.4GHz and 5GHz Band |
| Signal Rate |
1300Mbps at 5GHz, 600Mbps at 2.4GHz |
| Reception Sensitivity |
5GHz: 11a 6Mbps: -94dBm
11a 54Mbps: -75dBm
11ac HT20: -66dBm
11ac HT40: -62dBm
11ac HT80: -59dBm
2.4G: 11g 54Mbps: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions |
| Transmission Power |
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm |
| Guest Network |
2.4GHz guest network × 1
5GHz guest network × 1 |
| SOFTWARE FEATURES |
| Quality of Service |
WMM, Bandwidth Control |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual
Access)/Bigpond |
| Management |
Access Control
Local Management
Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Protocols |
Supports IPv4 and IPv6 |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Print Server |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
• AC 1900 Touch Screen Wi-Fi Gigabit Router Touch P5
• 3 Detachable Antennas
• Power Supply Unit
• Ethernet Cable
• Quick Installation Guide |
| System Requirements |
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, Mac OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Cable or DSL Modem
• Subscription with an Internet Service Provider (for Internet access)Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment |
• Operating Temperature: 0~40? (32? ~104?)
• Storage Temperature: -40~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
