Overview

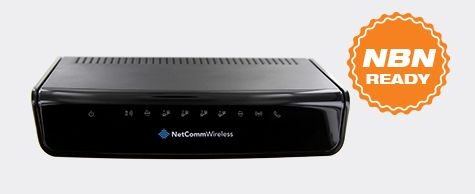

AC1200 WiFi Gigabit Router with Voice

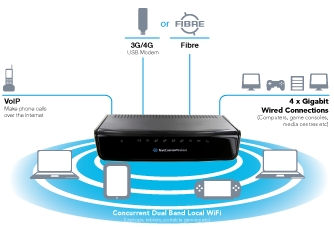

The NBN-ready NF13ACV connects your home or office today, and is equipped with a Gigabit Ethernet WAN port to provide an instant connection to a Fibre / NBN / UFB service when available. Connect to the Internet with a superfast fibre service using the Ethernet WAN port or use a 3G/4G modem to create a reliable wireless connection. Create multiple high-speed WiFi connections using the Wireless AC1200 Access Point, and share the Internet using the 4 Gigabit Ethernet LAN ports. Designed to keep you connected as technology evolves, the NF13ACV features IPv6 for the next generation of IP addressing and offers Layer 2 bridge mode support and a WPS button for simple and secure setup.
NBN Ready
Be ready for the future with a router that connects to the NBN’s Fibre to the Premises (FTTP) services, and take full advantage of superfast NBN speeds using the Gigabit Ethernet WAN port to access your service.
Instant Connection
Get instant and reliable connectivity to the Internet using a 3G/4G modem connected to the USB host port of the NF13ACV. Ideal for holiday homes, temporary offices or while you wait for high speed fibre.
Strong WiFi
All device features can be shared with multiple users via the built-in WiFi access point or the 4 LAN Ethernet ports. The high speed WiFi provides a signal with the power to penetrate the far corners of your house and you will have the capacity to simultaneously connect multiple WiFi enabled devices such as laptops, smart phones, gaming consoles, tablets and PCs.

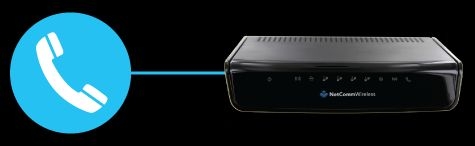

Save with VoIP
The NF13ACV lets you replace your telephone line completely. Simply sign up to a Voice over Internet Protocol (VoIP) service and make calls using your standard telephone connected to the FXS port.
Technical Specifications
PACKAGE INCLUDES
- AC1200 WiFi Gigabit Router with Voice
- Power Adapter
- Printed Quick Start Guide
- Ethernet Cable (RJ45)
- Phone Cable (RJ11)
- Wireless Security Card
- Warranty Card
ENVIRONMENTAL AND PHYSICAL
- Operating temperature: 0-40°C, Humidity: 10%-90% noncondensing
- Storage temperature: -10-70°C, Humidity: 0%-95% non-condensing
- Dimensions: 215mm (L) x 37mm(W) x 145mm(H)
- DC Input Voltage 12V/2A
DEVICE INTERFACE
- 1 x USB 2.0 for 3G/4G modems
- 1 x 10/100/1000Mbps RJ45 WAN port
- 4 x 10/100/1000Mbps RJ45 LAN ports
- 1 x RJ11 FXS port for VoIP
- 2 x 2 Internal Dual band WiFi
- WPS/Reset Button
- Power button
- Power jack
- LED (Power / 3G/4G / Internet / LAN 1-4 / WAN / WiFi / Phone)
WIRELESS WAN
- 1 x USB 2.0 port for external HSPA modem PPP (for WCDMA / HSPA)
ETHERNET WAN
- 1 x Gigabit WAN port (10/100/1000 Mbps)
- PPPoE, DHCP client, Static IP, PPTP, L2TP
WIRELESS
- IEEE 802.11ac/a/n(2x2), 11b/g/n(2x2) compliance
- SSID broadcast or in stealth mode
- Auto/Manual Channel selection
- WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
- WPS button (WiFi Protected Setup)
FUNCTIONALITY
- IPv6 Support
- Static IPv6
- PPPOE
- DHCPv6
- Dual Stack IPv6
- Jumbo Frame support
VOIP PROTOCOL
- SIP 2.0
- VOICE COMPRESSION
- G.711-Alaw voice compression
- G.711-Mulaw voice compression
- G.726-32 voice compression
- G.168 116 ms tail line echo cancellation
CALL FUNCTION
- Call Forward
- Caller ID setting
- Dial Plan
- Call waiting
- 3-way conference call
- VoIP Log
SECURITY
- IP/Service Filter
- URL blocking
- MAC control
- DoS (Denial of Service) Protected
ROUTING
- Static Route
- Dynamic Route (RIP v1/v2)
- DMZ
- DDNS
- Port forwarding
- Port Triggering
ADMINISTRATION
- SNMP
- UPnP
- IGD
- Syslog
- Web-based UI
- Remote Login
- TR-069 Auto provisioning
- Backup/Restore Settings
QOS
- Bandwidth management
- ToS/DSCP marking
- VLAN Tagging
VPN
- Support IPSec VPN tunnels (80 IPsec VPN tunnel)
- Support PPTP server/client (5 PPTP VPN tunnel)
- Support L2TP server/client (5 L2TP VPN tunnel)
COMPLIANCE
Specifications are subject to change without notice
