All stock codes associated to this product
AFM2S3W256GM, AFM2S3W256G-M

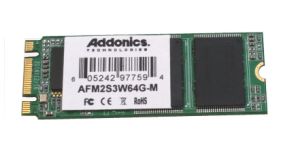

AFM2S3W256G-M
Overview
Addonics' Enterprise class M2 SSD is designed to work in a much wider
temperature environment, making it suitable for factory or application
in non-temperature controlled operation condition. This Enterprise class
of M2 card uses MLC flash memory and is thus more cost-effective than
the Addonics industrial grade M2 that is made of SLC flash. Designed
with the latest SATA 3.0 interface, the Enterprise M2 can deliver data
speed over 500 MB/sec.
The Addonics M2 SSD is also available in SLC flash to boost the
durability of the card to over 7 times that of commercial grade MLC
flash. For detail information on the industrial grade SLC type of M2
SSD, please visit the following product M2 SLC product web page.
Features
- Enterprise class M2 MLC SSD
- Great for the following applications: Industrial Embedded Systems,
Medical Solutions, Point-of-Sales, Gaming Industry, Automation
Solutions, and others
- Choice of 32G - 256GB capacities
- SATA III 3.0Gbps interface
- MLC NAND flash
- Data transfer rate : up to 515MB/s sequential READ and up to 180MB/s equential WRITE
- Industrial operating temperature: -40°C to +85°C
- TeraBytes Written (TBW): 635 TBW for 256GB
| Model |
Capacity |
NAND type |
Price |
Max. Read speed |
Max. Write speed |
Operating temp. |
| AFM2S3W32G-M |
32GB |
MLC |
$54.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
| AFM2S3W64G-M |
64GB |
MLC |
$89.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
| AFM2S3W128G-M |
128GB |
MLC |
$155.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
| AFM2S3W256G-M |
256GB |
MLC |
$309.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
Specifications
- Flash type: MLC
- Compliant with SATA Revision 3.0
- Advanced Flash management
- Static and Dynamic Wear Leveling
- Bad Block Management
- TRIM
- SMART
- Over-Provision
- Support expanded register for SATA protocol 48 bits addressing mode
- Data transfer rate : up to 515MB/s sequential READ and up to 180MB/s equential WRITE
- Power Fail Protection
- Voltage: 3.3 V +/- 5%
- Power consumption:
- Active mode: < 2000mW
- Idle mode: < 285mW
- DEVSLP mode: < 5mW
- Dimension (LxWxH): 60mm x 22mm x 3.9mm
- TeraBytes Written (TBW): 635 TBW for 256GB
- ECC scheme: Up to 72 bits / 1K Byte
- UART function
- GPIO
- Operating shock rating: 1,500G
- Vibration: 20G
- MTBF: > 3,000,000 hours
- Humidity: RH 95% under 55°C (operational)
- Complies with Compact flash Association specification standards
- Operating Temperature:-40°C to +85°C
- Storage Temperature: -40°C to + 85°C
- Warranty: 3 year
- Compliant: RoHS, CE/FCC
