All stock codes associated to this product
AFMSS3W64GM, AFMSS3W64G-M
AFMSS3W64G-M
Overview

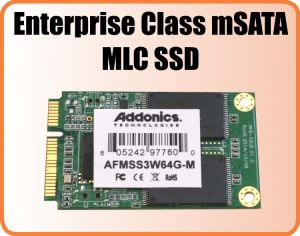

Addonics' Enterprise class mSATA SSD is designed to work in a much
wider temperature environment, making it suitable for factory or
application in non-temperature controlled operation condition. This
Enterprise class of mSATA SSD uses MLC flash memory and is thus more
cost-effective than the Addonics industrial grade mSATA SSD that is made
of SLC flash. Designed with the latest SATA 3.0 interface, the
Enterprise mSATA SSD can deliver data speed over 500 MB/sec.
The Addonics mSATA SSD is also available in SLC flash to boost the
durability of the card to over 7 times that of commercial grade MLC
flash. For detail information on the industrial grade SLC type of mSATA
card, please visit the following product mSATA SLC product web page.
- Enterprise class mSATA MLC SSD
- Great for the following applications: Industrial Embedded Systems,
Medical Solutions, Point-of-Sales, Gaming Industry, Automation
Solutions, and others
- Choice of 32G - 256GB capacities
- SATA III 6.0Gbps interface
- MLC NAND flash
- Data transfer rate : up to 515MB/s sequential READ and up to 180MB/s equential WRITE
- Industrial operating temperature: -40°C to +85°C
- TeraBytes Written (TBW): 635 TBW for 256GB
| Model |
Capacity |
NAND type |
Price |
Max. Read speed |
Max. Write speed |
Operating temp. |
| AFMSS3W32G-M |
32GB |
MLC |
$54.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
| AFMSS3W64G-M |
64GB |
MLC |
$89.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
| AFMSS3W128G-M |
128GB |
MLC |
$155.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
| AFMSS3W256G-M |
256GB |
MLC |
$309.00 |
515 MB/sec |
180 MB/sec |
-40°C to +85°C |
Specifications
- Flash type: MLC
- Compliant with SATA Revision 3.0
- Advanced Flash management
- Static and Dynamic Wear Leveling
- Bad Block Management
- TRIM
- SMART
- Over-Provision
- Support expanded register for SATA protocol 48 bits addressing mode
- Data transfer rate : up to 515MB/s sequential READ and up to 180MB/s equential WRITE
- Power Fail Protection
- Data transfer mode: up to PIO4, MDMA2, UDMA6
- Voltage: 3.3 V +/- 5%
- Power consumption:
- Active mode: < 2000mW
- Idle mode: < 330mW
- DEVSLP mode: < 5mW
- Dimension (LxWxH): 50.8mm x 29.85mm x 4mm
- TeraBytes Written (TBW): 635 TBW for 256GB
- ECC scheme: Up to 72 bits / 1K Byte
- UART function
- GPIO
- Operating shock rating: 1,500G
- Vibration: 20G
- MTBF: > 3,000,000 hours
- Humidity: RH 95% under 55°C (operational)
- Complies with Compact flash Association specification standards
- Operating Temperature:-40°C to +85°C
- Storage Temperature: -40°C to + 85°C
- Warranty: 3 year
- Compliant: RoHS, CE/FCC
